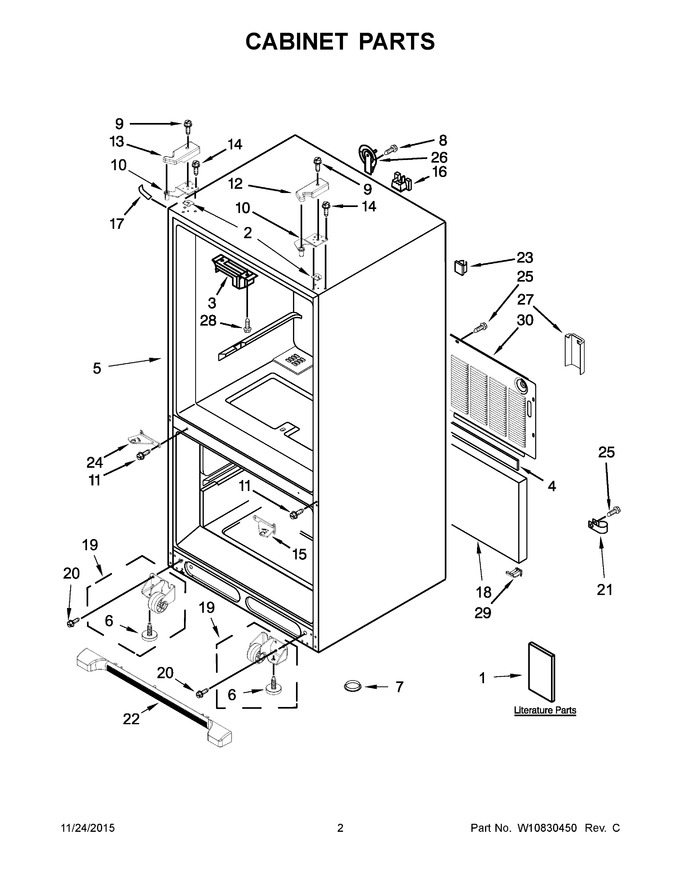

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10543539 | Tech Sheet |
|
- | |||||
| 2 | 12999501 | Shim, Top Hinge (left Hand) |
|
$ 99.53 | |||||
| 3 | W11024160 | Block, Pivot (Replaces: W10120087) |
|
$ 19.98 | |||||
| 4 | B5759655 | Gasket |
|
$ 13.03 | |||||
| 5 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 6 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 7 | A3076901 | Plug, Button (black) |
|
$ 5.70 | |||||
| 8 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 9 | 12992603 | Screw |
|
$ 10.33 | |||||
| 10 | W10210891 | Hinge, Top (right Hand) |
|
$ 86.78 | |||||
| 11 | W11573362 | Screw (Replaces: W10339086) |
|
$ 14.72 | |||||
| 12 | WPW10120103 | Cover, Right Hinge (grey) (Replaces: W10120103) |
|
$ 8.42 | |||||
| 13 | WPW10120102 | Cover, Left Hinge (grey) (Replaces: W10120102) |
|
$ 6.84 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 15 | W11747629 | Hinge, Center (right) (grey) (Replaces: W10135097) |
|
Immediately | $ 54.42 | ||||
| 16 | W11686793 | Block, Fill Tube (Replaces: W10658542) |
|
$ 23.57 | |||||
| 17 | WP12587703AP | Cover, Corner (grey) (Replaces: 12587703AP) |
|
$ 8.07 | |||||
| 18 | 12820505 | Insulation |
|
$ 71.70 | |||||
| 19 | W11820444 | Roller Assembly (front) (left Hand) (Replaces: W10515763) |
|
Immediately | $ 37.35 | ||||
| 20 | 67006564 | Screw (Replaces: 12991302) |
|
Immediately | $ 8.15 | ||||
| 21 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 22.40 | ||||
| 22 | WPW10534155 | Grille, Toe (grey) (Replaces: W10534155) |
|
Immediately | $ 119.56 | ||||
| 23 | WPM0104106 | Clip, Cord (Replaces: M0104106) |
|
$ 8.17 | |||||
| 24 | W11747629 | Hinge, Center (left) (grey) (Replaces: W10135096) |
|
Immediately | $ 54.42 | ||||
| 25 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 26 | 12726003 | Cover, Water Line |
|
$ 19.19 | |||||
| 27 | W10208593 | Guard, Dual Water Valve |
|
$ 15.71 | |||||
| 28 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.90 | |||||
| 29 | W10528513 | Sweep, Dual Tube |
|
$ 43.74 | |||||
| 30 | WPW10211855 | Cover, Unit (Replaces: W10211855) |
|
$ 207.99 | |||||
| 10A | W10892768 | Hinge, Top (left Hand) (Replaces: W10210890) |
|
$ 76.49 | |||||
| 19A | W11820445 | Roller Assembly (front) (right Hand) (Replaces: W10515762) |
|
Immediately | $ 37.35 | ||||
| 1A | W10802052 | Owners Manual |
|
- | |||||
| 1B | W10802019 | Enery Guide |
|
- | |||||
| 2A | 12999502 | Shim, Top Hinge (right Hand) |
|
$ 100.60 |
