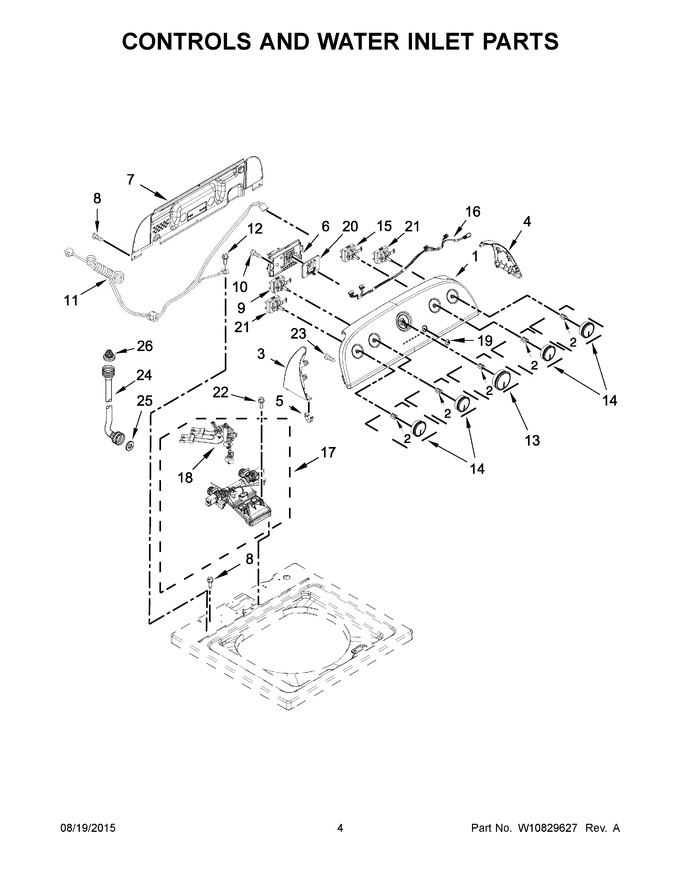

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10789652 | Panel, Console |
|
- | |||||
| 2 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.81 | ||||
| 3 | WPW10520782 | End Cap (left) (white) (Replaces: W10520782) |
|
$ 61.61 | |||||
| 4 | WPW10520780 | End Cap (right) (white) (Replaces: W10520780) |
|
$ 61.28 | |||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 6 | W10802387 | Control Unit Assembly, Machine & Motor |
|
$ 442.80 | |||||
| 7 | W10552335 | Panel, Console Rear Cover |
|
$ 326.83 | |||||
| 8 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 7.86 | ||||
| 9 | WPW10285518 | Switch, Rotary Encoder (5 Position) (Replaces: W10285518) |
|
Immediately | $ 117.42 | ||||
| 10 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 11 | WPW10525194 | Cord, Power (Replaces: W10525194) |
|
$ 155.63 | |||||
| 12 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.76 | ||||
| 13 | W11501455 | Knob, Timer (white/metallic) (Replaces: W10576634) |
|
$ 43.60 | |||||
| 14 | W10576636 | Assembly, Control Knob (white/metallic) |
|
- | |||||
| 15 | WPW10285512 | Temperature Control (Replaces: W10285512) |
|
Immediately | $ 181.40 | ||||
| 16 | W11211519 | Harness, Upper (Replaces: W10694680) |
|
$ 176.00 | |||||
| 17 | WPW10683653 | Inlet Assembly, Water (Replaces: W10683653) |
|
$ 206.18 | |||||
| 18 | W10876654 | Harness, Valve (Replaces: W10684972) |
|
$ 185.64 | |||||
| 19 | W11084340 | Grommet-push To Start (Replaces: W10598040) |
|
$ 70.33 | |||||
| 20 | WPW10596298 | Button-push To Start (Replaces: W10596298) |
|
$ 69.50 | |||||
| 21 | WPW10285511 | Switch, Rotary Encoder (2 Position) (Replaces: W10285511) |
|
Immediately | $ 173.43 | ||||
| 22 | WPW10213953 | Screw (Replaces: W10213953) |
|
Immediately | $ 7.19 | ||||
| 23 | WP3400818 | Screw (Replaces: 3400818) |
|
$ 7.96 | |||||
| 24 | WP89503 | Hose, Water Inlet (cold) (Replaces: W10194210) |
|
Immediately | $ 24.09 | ||||
| 25 | WP16123 | Washer, Inlet Hose (Replaces: W10242307) |
|
$ 7.70 | |||||
| 26 | 285452A | Washer, Filter (Replaces: W10810281) |
|
Immediately | $ 9.23 | ||||
| 24A | WP89503 | Hose, Water Inlet (hot) (Replaces: W10194211) |
|
Immediately | $ 24.09 |
