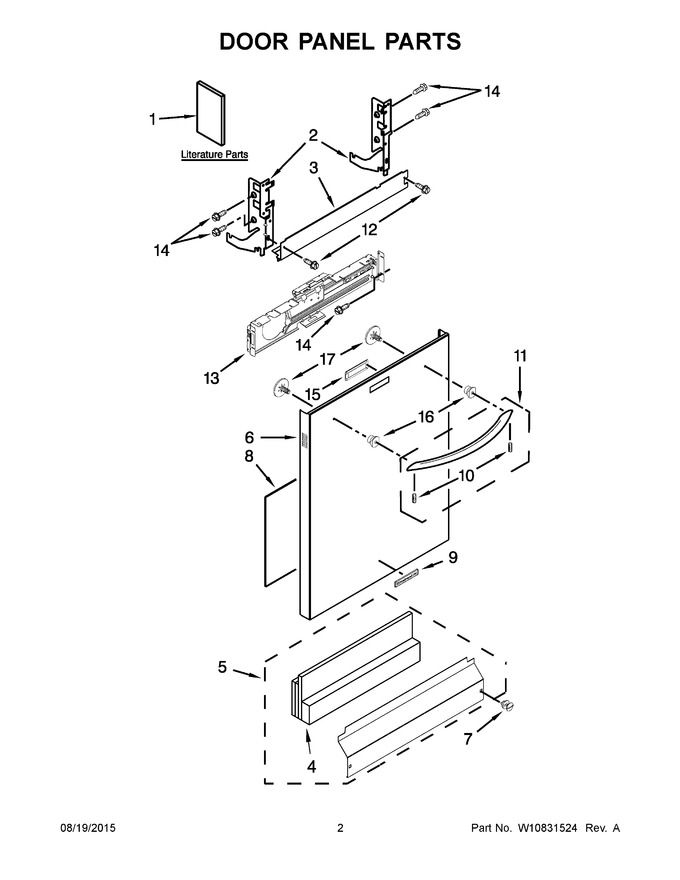

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10741197		Installation Instructions		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 142.39
3	W10850371		Barrier, Vapor   (Replaces: W10726645)			Immediately	$ 32.88
4	W10831329		Insulation, Four Layer   (Replaces: W10518815)			Immediately	$ 43.30
5	WPW10526114		Access Panel (black)   (Replaces: W10526114)			Immediately	$ 149.53
6	WPW10195869		Front Panel (includes 9, 15, 16 & 17) (stainless)   (Replaces: W10195869)				$ 391.97
7	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 30.39
8	W11126003		Insulation, Front Panel   (Replaces: W10620222)			Immediately	$ 65.25
9	WPW10243391		Nameplate (grey)   (Replaces: W10243391)				$ 58.31
10	WPW10307614		Screw   (Replaces: W10307614)			Immediately	$ 7.55
11	W10195738		Handle Assembly (stainless)		Appelez-nous	-
12	WP302868		Screw (black)   (Replaces: 302868)			Immediately	$ 8.18
13	WPW10350242		Bracket, Control   (Replaces: W10350242)				$ 88.32
14	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
15	W10457051		Window, Display				$ 67.21
16	W11157086		Stud, Mounting   (Replaces: W10195726)			Immediately	$ 8.87
17	W10826179		Screw   (Replaces: W10316572)			Immediately	$ 7.55
1A	W10638775		Energy Guide		Appelez-nous	-
1B	W10584476		Use & Care Guide		Appelez-nous	-
1C	W10617419		Tech Sheet, English		Appelez-nous	-
1D	W10617420		Tech Sheet, French		Appelez-nous	-
2A	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 142.24
