Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11051040 Lining, Door   (Replaces: W10485720) Special Order $ 301.00

2 W11132120 Glass, Inner   (Replaces: W10272707) Special Order $ 179.33

3 WPW10272708 Frame, Glass   (Replaces: W10272708) Special Order $ 171.93

4 WPW10292297 Screw   (Replaces: W10292297) In-Stock Immediately $ 7.55

5 W10485723 Retainer, Insulation Special Order $ 252.42

6 WPW10321271 Insulation, Door   (Replaces: W10321271) Special Order $ 99.18

7 W10647259 Receiver, Hinge   (Replaces: W10289077) In-Stock Immediately $ 9.32

8 W10674123 Assembly, Door (black) Appelez-nous -
9 WPW10485733 Hinge, Door (left)   (Replaces: W10485733) In-Stock Immediately $ 59.59

10 WPW10410341 Standoff, Handle (black (stainless Models Only))   (Replaces: W10410341) Special Order $ 80.75

11 W10300490 Handle, Door (black) In-Stock Immediately $ 156.75

12 W10677219 Assembly, Door (stainless)   (Replaces: W10674762) Appelez-nous -
11A W10300489 Handle, Door (white) In-Stock Immediately $ 244.88

11B WPW10618239 Handle, Door (stainless)   (Replaces: W10254687) In-Stock Immediately $ 175.54

8A W10674122 Assembly, Door (white) Appelez-nous -
9A WPW10485732 Hinge, Door (right)   (Replaces: W10485732) In-Stock Immediately $ 55.76


    View Diagram in Separate Window     Print Icon   Print Part List

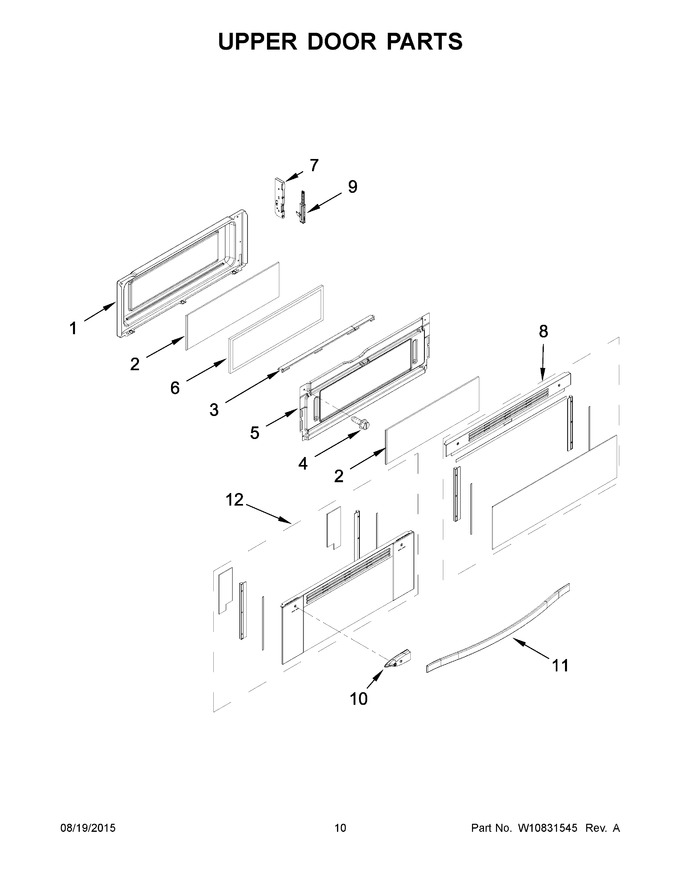

Diagram for WGG555S0BW04
