SELECT A DIAGRAM

01 - Cover Sheet

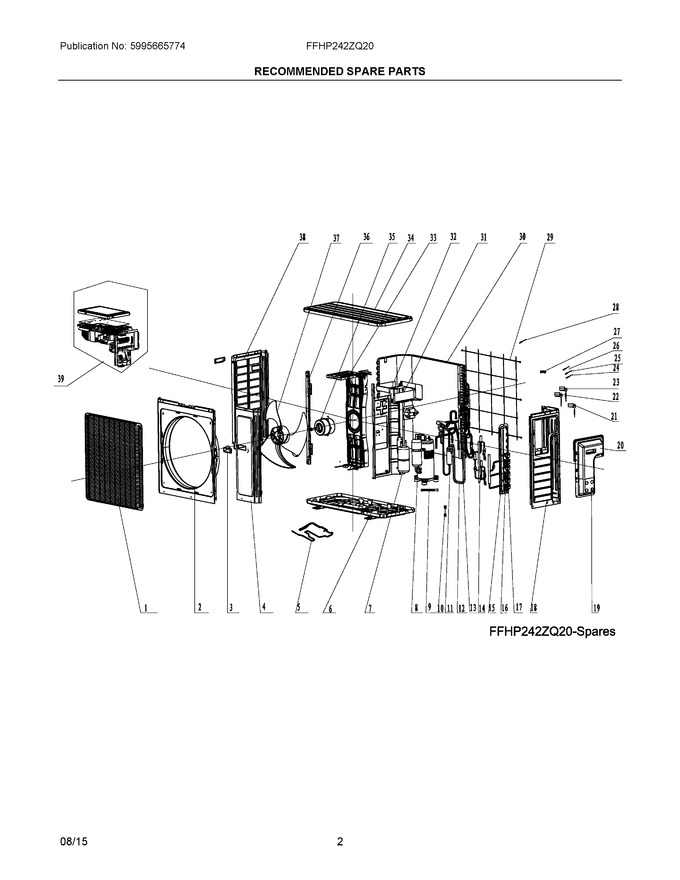

02 - Recommended Spare Parts


03 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304483744		Grille, Front		Appelez-nous	-
2	5304502377		Panel, Front		Appelez-nous	-
3	5304483675		Handle, Left		Appelez-nous	-
4	5304489984		Plate, Front/side		Appelez-nous	-
5	5304502473		Heater, Chassis, Electric		Appelez-nous	-
6	5304502474		Base, Unit Chassis		Appelez-nous	-
7	5304502475		Separator, Gas-liquid		Appelez-nous	-
8	5304502476		Compressor, With Fittings		Appelez-nous	-
9	5304502477		Heater, Compressor, Electric		Appelez-nous	-
10	5304502478		Adapter, Valve-to-tube, Cutoff		Appelez-nous	-
11	5304502479		Valve, 4-way		Appelez-nous	-
12	5304502480		Connector, Compr-separator		Appelez-nous	-
13	5304483715		Coil, 4-way Valve				$ 64.50
14	5304502481		Valve, Expansion, Electric		Appelez-nous	-
15	5304502482		Bracket, Valve Support		Appelez-nous	-
16	5304502483		Valve, Cut-off, 3/8 Inch, Gas		Appelez-nous	-
17	5304483768		Valve, Cut-off, 1/4		Appelez-nous	-
18	5304502484		Panel, Right Side		Appelez-nous	-
19	5304502485		Cover, Wiring		Appelez-nous	-
20	5304502486		Handle Assembly		Appelez-nous	-
21	5304502547		Coil 1, Expansion Valve (red)		Appelez-nous	-
22	5304502548		Coil 2, Expansion Valve (black)		Appelez-nous	-
23	5304502549		Coil 3, Expansion Valve (white)		Appelez-nous	-
24	5304483684		Sensor Kit				$ 99.94
25	5304502550		Sensor, Temperature, Red Term		Appelez-nous	-
26	5304502551		Sensor, Temperature, Black Term		Appelez-nous	-
27	5304483683		Clamp, Wire		Appelez-nous	-
28	5304502552		Sensor, Temperature, White Term		Appelez-nous	-
29	5304502553		Grille, Rear		Appelez-nous	-
30	5304502554		Condenser		Appelez-nous	-
31	5304483746		Control Box, Flame Resistant		Appelez-nous	-
32	5304502555		Bulkhead, Partition		Appelez-nous	-
33	5304483753		Bracket, Motor Support		Appelez-nous	-
34	5304502464		Cover, Top		Appelez-nous	-
35	5304502366		Motor, Fan		Appelez-nous	-
36	5304483773		Bracket, Support, Condenser		Appelez-nous	-
37	5304502375		Fan Blade, Propeller		Appelez-nous	-
38	5304483751		Panel, Left Side		Appelez-nous	-
39	5304503289		Control Box Assembly		Appelez-nous	-
