SELECT A DIAGRAM

01 - Cover Sheet

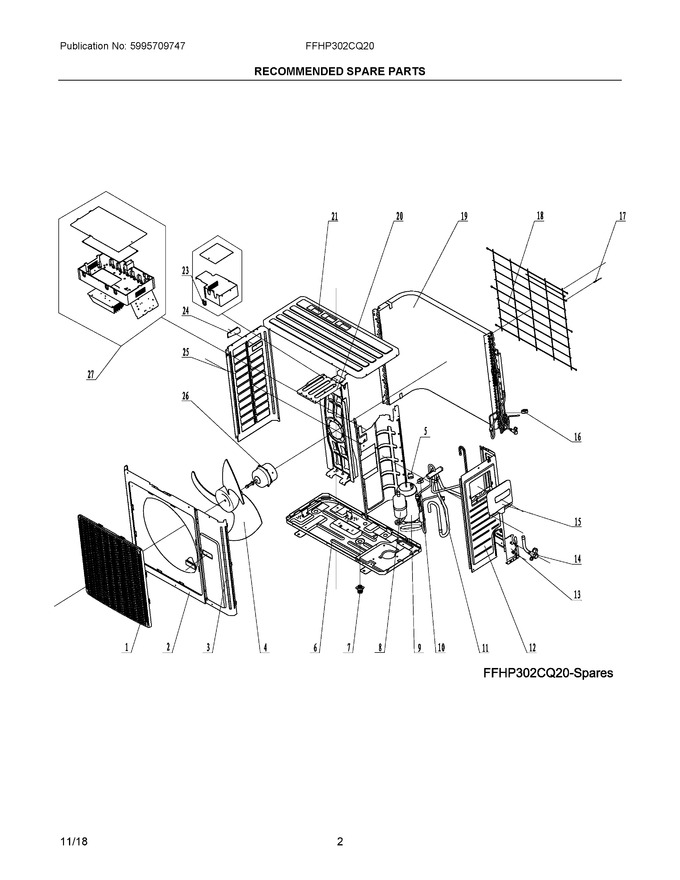

02 - Recommended Spare Parts


03 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304483744		Grille, Front		Appelez-nous	-
2	5304502377		Panel, Front		Appelez-nous	-
3	5304489984		Plate, Front/side		Appelez-nous	-
4	5304502375		Fan Blade, Propeller		Appelez-nous	-
5	5304502570		Overload Protector, Compressor		Appelez-nous	-
6	5304502455		Base, Unit Chassis		Appelez-nous	-
7	5304482867		Connector, Drain		Appelez-nous	-
8	5304502456		Compressor, With Fittings		Appelez-nous	-
9	5304502457		Heater, Compressor, Electric		Appelez-nous	-
10	5304502458		Coil, 4-way Valve		Appelez-nous	-
11	5304502459		Valve, 4-way		Appelez-nous	-
12	5304483762		Panel, Right Side		Appelez-nous	-
13	5304483766		Bracket, Valve		Appelez-nous	-
14	5304483783		Valve, Cut-off, 5/8		Appelez-nous	-
15	5304502385		Handle, Large, Right				$ 28.98
16	5304502460		Coil, Expansion Valve, Electric		Appelez-nous	-
17	5304502461		Sensor, Temperature, 3-in-one		Appelez-nous	-
18	5304483756		Grille, Rear		Appelez-nous	-
19	5304502462		Condenser		Appelez-nous	-
20	5304502463		Bracket, Motor Support		Appelez-nous	-
21	5304502464		Cover, Top		Appelez-nous	-
23	5304502465		Bushing, Rubber, Wire Protector		Appelez-nous	-
24	5304483675		Handle, Left		Appelez-nous	-
25	5304483751		Panel, Left Side		Appelez-nous	-
26	5304502466		Motor, Fan		Appelez-nous	-
27	5304502546		Control Box Assembly		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
