SELECT A DIAGRAM

01 - Cover Sheet

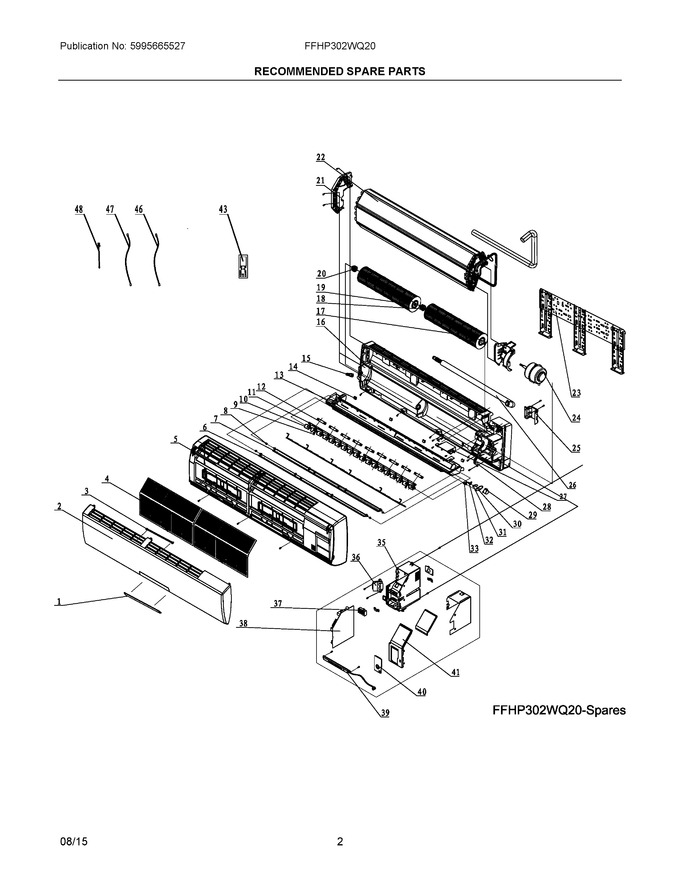

02 - Recommended Spare Parts


03 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304502388		Window, Remote Receiver		Appelez-nous	-
2	5304502389		Panel, Front		Appelez-nous	-
3	5304502390		Bar, Support		Appelez-nous	-
4	5304502391		Filter, Air		Appelez-nous	-
5	5304502392		Base, Unit Chassis		Appelez-nous	-
6	5304502393		Louver, Guide, Upper		Appelez-nous	-
7	5304502394		Louver, Guide, Lower		Appelez-nous	-
8	5304502395		Bushing, Louver Shaft		Appelez-nous	-
9	5304502396		Louver 2, Air		Appelez-nous	-
10	5304502397		Louver 1, Air		Appelez-nous	-
11	5304502398		Rod, Connecting		Appelez-nous	-
12	5304502399		Clamp, Louver		Appelez-nous	-
13	5304502400		Tray, Drip Pan		Appelez-nous	-
14	5304502401		Cover, Screws		Appelez-nous	-
15	5304482805		Drain Plug, Drip Tray		Appelez-nous	-
16	5304502402		Cabinet, Rear Case Assy		Appelez-nous	-
17	5304502403		Blower Wheel 1, Fan, Cross Flow		Appelez-nous	-
18	5304502405		Bearing Block, Housing, W/o'ring		Appelez-nous	-
19	5304502404		Blower Wheel 2, Fan, Cross Flow		Appelez-nous	-
20	5304482778		O'ring, Bearing, Gasket/seal				$ 25.41
21	5304502406		Support, Evaporator, Left Side		Appelez-nous	-
22	5304502407		Evaporator				$ 555.66
23	5304502408		Bracket, Mounting Plate, Wall		Appelez-nous	-
24	5304502409		Motor, Blower		Appelez-nous	-
25	5304502410		Clamp, Drain Hose		Appelez-nous	-
26	5304502411		Hose, Drain		Appelez-nous	-
27	5304502412		Plate, Motor Cover		Appelez-nous	-
28	5304502413		Clip, Motor Mount		Appelez-nous	-
29	5304502414		Motor, Stepping, Louver		Appelez-nous	-
30	5304502415		Crank, Lever, Louver		Appelez-nous	-
31	5304502436		Guide/link, Crank, Motor/louver		Appelez-nous	-
32	5304502437		Crank, Lever, Upper				$ 14.32
33	5304502438		Crank, Lever, Lower		Appelez-nous	-
35	5304502543		Control Box, Enclosure		Appelez-nous	-
36	5304502544		Transformer		Appelez-nous	-
37	5304482804		Terminal Block, 4-bit		Appelez-nous	-
38	5304503285		Pc Board, Main, Control/power				$ 281.38
39	5304503286		Pc Board, Display/input		Appelez-nous	-
40	5304503287		Cover, Control Box		Appelez-nous	-
41	5304503288		Panel, Control Box, Front		Appelez-nous	-
43	5304502215		Remote Control, Transmitter				$ 150.89
46	5304502439		Signal Wire, Outdoor/indoor		Appelez-nous	-
47	5304460537		Sensor, Evaporator Temp, Defrost				$ 57.17
48	5304459792		Sensor, Ambient Temp, Thermistor				$ 64.16

    View Diagram in Separate Window       Print Part List
