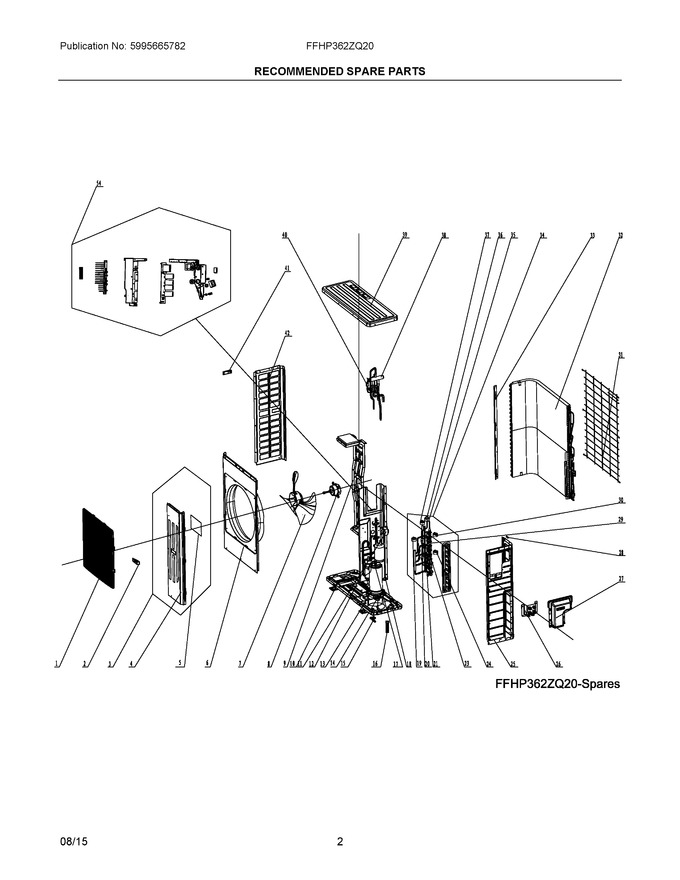

02 - Recommended Spare Parts
03 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304502556 | Grille, Front |
|
- | |||||
| 2 | 5304502557 | Handle |
|
- | |||||
| 3 | 5304502558 | Panel Assembly, Front/side |
|
- | |||||
| 4 | 5304502559 | Panel, Front/side |
|
- | |||||
| 5 | 5304483700 | Plate, Insulator, Control Box |
|
- | |||||
| 6 | 5304502560 | Panel, Front |
|
- | |||||
| 7 | 5304502561 | Fan Blade, Propeller |
|
- | |||||
| 8 | 5304502562 | Motor, Fan |
|
- | |||||
| 9 | 5304502563 | Bracket, Motor Support |
|
- | |||||
| 10 | 5304502564 | Heater, Chassis, Electric |
|
- | |||||
| 11 | 5304502565 | Reactor, Coil/inductor |
|
- | |||||
| 12 | 5304502566 | Compressor |
|
- | |||||
| 13 | 5304502457 | Heater, Compressor, Electric |
|
- | |||||
| 14 | 5304502567 | Grommet, Compressor |
|
- | |||||
| 15 | 5304502568 | Elbow, Drainage Joint |
|
- | |||||
| 16 | 5304502569 | Sensor, Temperature |
|
- | |||||
| 17 | 5304502570 | Overload Protector, Compressor |
|
- | |||||
| 18 | 5304502370 | Bolt |
|
- | |||||
| 19 | 5304502571 | Coil 1, Expansion Valve, Black |
|
- | |||||
| 20 | 5304502572 | Strainer A |
|
- | |||||
| 21 | 5304502573 | Strainer, Bi-directional |
|
- | |||||
| 23 | 5304502483 | Valve, Cut-off, 3/8 Inch, Gas |
|
- | |||||
| 24 | 5304483687 | Coil, Expansion Valve |
|
$ 135.71 | |||||
| 25 | 5304502574 | Panel, Right Side |
|
- | |||||
| 26 | 5304502485 | Cover, Wiring |
|
- | |||||
| 27 | 5304502486 | Handle Assembly |
|
- | |||||
| 28 | 5304483683 | Clamp, Wire |
|
- | |||||
| 29 | 5304483768 | Valve, Cut-off, 1/4 |
|
- | |||||
| 30 | 5304502575 | Coil 3, Expansion Valve, Green |
|
- | |||||
| 31 | 5304502576 | Grille, Rear |
|
- | |||||
| 32 | 5304502577 | Condenser |
|
- | |||||
| 33 | 5304502578 | Bracket, Support, Condenser |
|
- | |||||
| 34 | 5304502579 | Bracket, Support, Valve |
|
- | |||||
| 35 | 5304502580 | Coil 4, Expansion Valve, Red |
|
- | |||||
| 36 | 5304502581 | Valve, Expansion, Electronic |
|
- | |||||
| 37 | 5304502582 | Coil 5, Expansion Valve, Blue |
|
- | |||||
| 38 | 5304502583 | Valve, 4-way |
|
- | |||||
| 39 | 5304502584 | Cover, Top |
|
- | |||||
| 40 | 5304502585 | Switch, Pressure |
|
- | |||||
| 41 | 5304483675 | Handle, Left |
|
- | |||||
| 42 | 5304502586 | Panel, Left Side |
|
- | |||||
| 54 | 5304503290 | Control Box Assembly |
|
- |
