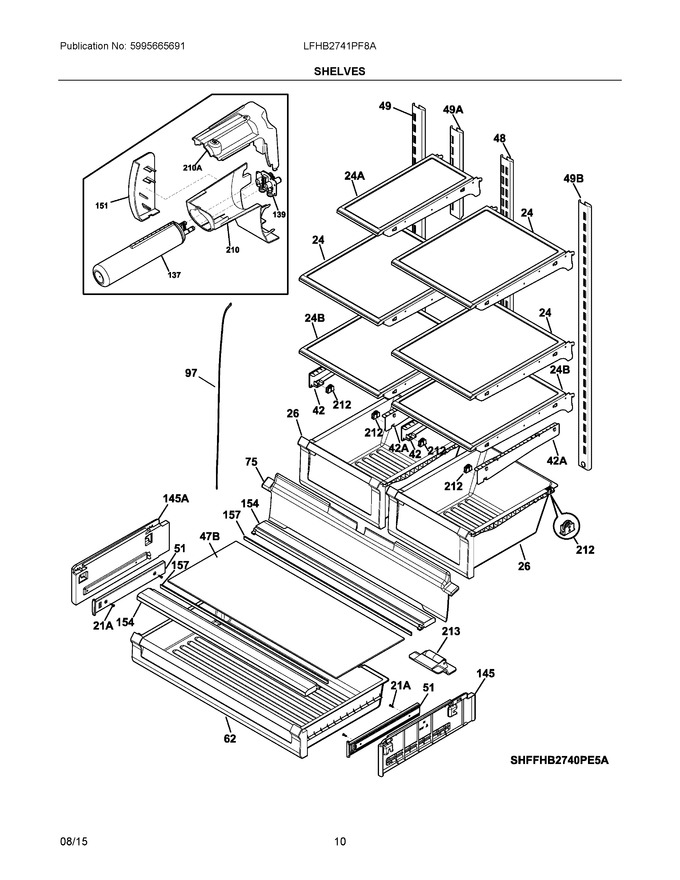

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 24 | 242068717 | Shelf-"spill-safe", Cantilever, Sliding (Replaces: 242068701) |
|
$ 202.23 | |||||
| 26 | 241801801 | Pan, Crisper |
|
$ 205.01 | |||||
| 42 | 242067901 | Support, Crspr Pan Rolle |
|
$ 25.20 | |||||
| 48 | 242122101 | Channel-shelf Mtg, Center |
|
$ 88.99 | |||||
| 49 | 242122202 | Channel-shelf Mtg, Side, Lh |
|
$ 74.81 | |||||
| 51 | 242197901 | Slide, Deli, (2) |
|
$ 148.84 | |||||
| 62 | 242096801 | Pan-deli |
|
$ 265.91 | |||||
| 75 | 242072704 | Shield-light, Refr |
|
$ 130.73 | |||||
| 97 | 242220204 | Tube-water Inlet, .315 - 93.50", Natural |
|
Immediately | $ 44.80 | ||||
| 137 | ULTRAWF | Filter-water (Replaces: 242294401) |
|
Immediately | $ 116.23 | ||||
| 139 | 242009604 | Base-water Filter (Replaces: 242009601) |
|
Immediately | $ 36.82 | ||||
| 145 | 242200003 | Support, Deli Slide Rail, Rh |
|
$ 86.79 | |||||
| 151 | 242069701 | Cover-water Filter |
|
$ 69.16 | |||||
| 154 | 242082401 | Support |
|
$ 76.22 | |||||
| 157 | 241872201 | Beam-crisper Cover |
|
$ 59.83 | |||||
| 210 | 241983816 | Housing-water Filtr |
|
Immediately | $ 81.90 | ||||
| 212 | 242236801 | Roller Assembly, Crisper Pan |
|
Immediately | $ 24.43 | ||||
| 213 | 242010901 | Roller Assy, Deli Pan |
|
$ 55.13 | |||||
| 145A | 242200004 | Support, Deli Slide Rail, Lh |
|
$ 91.84 | |||||
| 210A | 241998303 | Mount-water Filter (Replaces: 241998302) |
|
$ 16.01 | |||||
| 21A | 241953902 | Screw, #8 - 18 X .380 |
|
Immediately | $ 19.01 | ||||
| 24A | 242068702 | Shelf-"spill-safe", Cantilever, 1/4 Width, Sliding |
|
$ 206.33 | |||||
| 24B | 242068703 | Shelf-"spill-safe", Fixed |
|
$ 246.05 | |||||
| 42A | 242067801 | Support, Crspr Pan Rolle |
|
$ 58.30 | |||||
| 47B | 242082303 | Glass, Deli Cover |
|
$ 120.50 | |||||
| 49A | 5304531311 | Channel-shelf Mtg, Center, Icemaker Shelf (Replaces: 242122001) |
|
- | |||||
| 49B | 242122301 | Channel-shelf Mtg, Side, Rh |
|
$ 86.63 | |||||
| NI | 5304499553 | Energy Guide Label |
|
- | |||||
| NI | 241500303 | Screw, Hex Washer Head, 8-18ab X 1/2 |
|
Immediately | $ 5.06 | ||||
| NI | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 15.75 | |||||
| NIA | 5304453707 | Screw, Quad Hilo, #8-18, (2) (Replaces: 241953901) |
|
Immediately | $ 17.69 | ||||
| NIA | 242015001 | Screw, 8-18 X 1/2 |
|
Immediately | $ 18.11 | ||||
| NIA | 241695904 | Screw |
|
$ 16.01 | |||||
| NIA | 5304453707 | Screw, Plask, #8-18 X .500 (Replaces: 240363402) |
|
Immediately | $ 17.69 | ||||
| NIA | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 11.81 |
