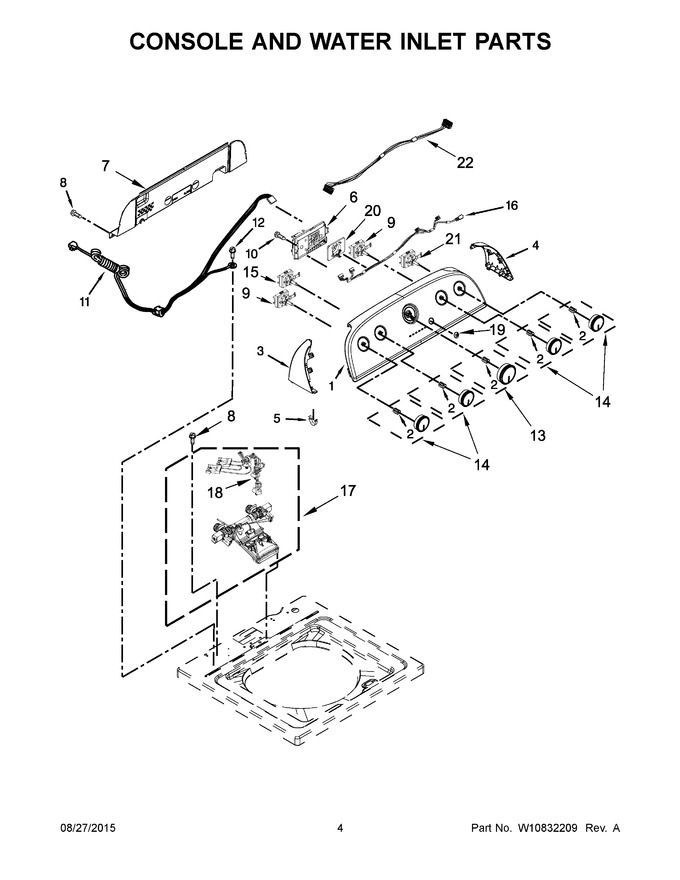

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10920641 | Panel, Console (Replaces: W10607406) |
|
$ 620.85 | |||||
| 2 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 3 | WPW10520782 | End Cap (lh) (white) (Replaces: W10520782) |
|
$ 64.69 | |||||
| 4 | WPW10520780 | End Cap (rh) (white) (Replaces: W10520780) |
|
$ 64.34 | |||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 6 | W11116590 | Control Unit Assembly, Machine And Motor (Replaces: W10803586) |
|
Immediately | $ 514.54 | ||||
| 7 | W10641340 | Panel, Console Rear Cover |
|
$ 211.44 | |||||
| 8 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 8.40 | ||||
| 9 | WPW10285512 | Temperature Control (Replaces: W10285512) |
|
Immediately | $ 190.47 | ||||
| 10 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 11 | W10877409 | Cord, Power (Replaces: W10737739) |
|
$ 130.00 | |||||
| 12 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 8.20 | ||||
| 13 | W11501455 | Knob, Timer (white/metallic) (Replaces: W10576634) |
|
$ 45.78 | |||||
| 14 | W10576636 | Knob, Control (white/metallic) |
|
- | |||||
| 15 | WPW10285518 | Switch, Rotary Encoder (5 Position) (Replaces: W10285518) |
|
Immediately | $ 117.42 | ||||
| 16 | W11211519 | Harness, Upper (Replaces: W10694680) |
|
$ 184.80 | |||||
| 17 | W11210459 | Inlet Assembly, Water (Replaces: W10701459) |
|
Immediately | $ 102.67 | ||||
| 18 | W10678671 | Harness, Valve |
|
$ 185.37 | |||||
| 19 | WPW10596298 | Button, Push To Start (Replaces: W10596298) |
|
$ 72.98 | |||||
| 20 | W11084340 | Grommet, Push To Start (Replaces: W10598040) |
|
$ 73.85 | |||||
| 21 | WPW10285511 | Switch, Rotary Encoder (2 Position) (Replaces: W10285511) |
|
Immediately | $ 182.10 | ||||
| 22 | W10786100 | Harness, Jumper |
|
$ 189.98 |
