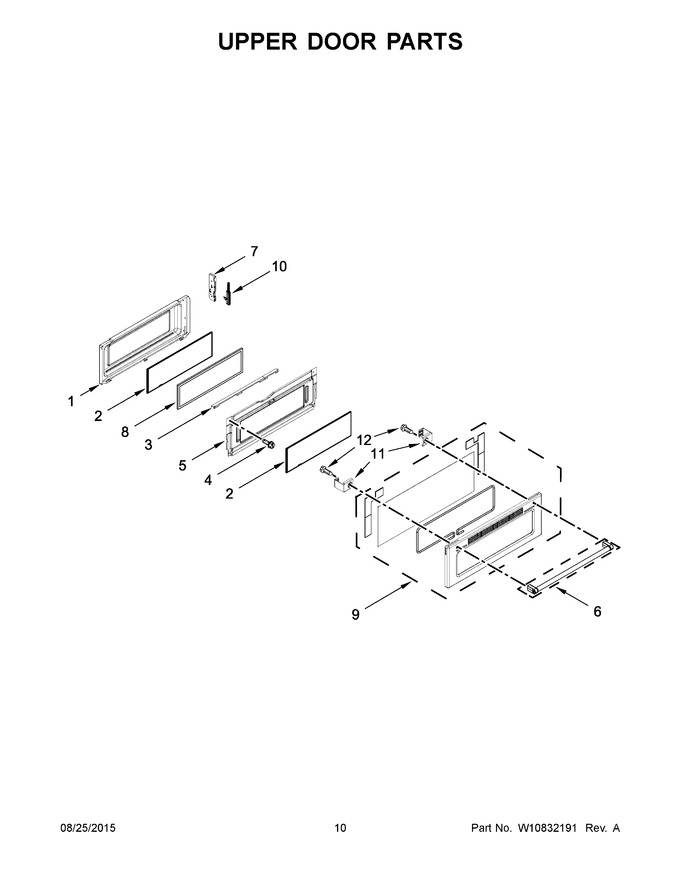

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11103615 | Lining, Door (Replaces: W10485721) |
|
$ 305.61 | |||||
| 2 | W11132120 | Glass, Inner (Replaces: W10272707) |
|
$ 179.33 | |||||
| 3 | WPW10272708 | Frame, Glass (Replaces: W10272708) |
|
$ 171.93 | |||||
| 4 | WPW10292297 | Screw (Replaces: W10292297) |
|
Immediately | $ 7.55 | ||||
| 5 | W10485723 | Retainer, Insulation |
|
$ 252.42 | |||||
| 6 | W11305108 | Assembly, Door Handle (stainless) (Replaces: W10674701) |
|
$ 188.40 | |||||
| 7 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 9.32 | ||||
| 8 | WPW10321271 | Insulation, Door (Replaces: W10321271) |
|
$ 99.18 | |||||
| 9 | W11132193 | Assembly, Door (stainless) (Replaces: W10645192) |
|
Immediately | $ 566.45 | ||||
| 10 | WPW10485733 | Hinge, Door (left) (Replaces: W10485733) |
|
Immediately | $ 59.59 | ||||
| 11 | W10645182 | Bracket, Door Handle |
|
$ 41.73 | |||||
| 12 | W10831019 | Screw (Replaces: W10480830) |
|
Immediately | $ 8.27 | ||||
| 10A | WPW10485732 | Hinge, Door (right) (Replaces: W10485732) |
|
Immediately | $ 55.76 |
