01 - Cover Sheet

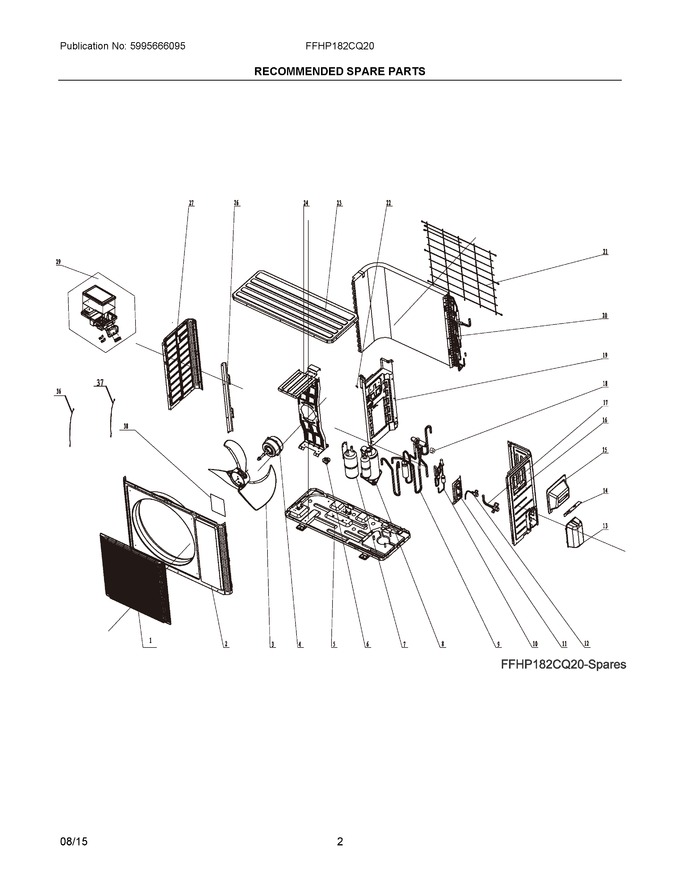

02 - Recommended Spare Parts


03 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304483702		Grille, Front		Appelez-nous	-
2	5304502324		Panel, Front		Appelez-nous	-
3	5304483699		Fan Blade, Axial Flow				$ 72.72
4	5304502325		Motor, Fan				$ 349.49
5	5304502349		Base, Unit Chassis		Appelez-nous	-
6	5304482867		Connector, Drain		Appelez-nous	-
7	5304502350		Separator, Gas-liquid		Appelez-nous	-
8	5304502327		Compressor, With Fittings		Appelez-nous	-
9	5304502351		Valve, 4-way		Appelez-nous	-
10	5304502331		Valve, Expansion, Capillary Tube		Appelez-nous	-
11	5304483692		Bracket, Valve Mount		Appelez-nous	-
12	5304483768		Valve, Cut-off, 1/4		Appelez-nous	-
13	5304483690		Cover, Valve		Appelez-nous	-
14	5304483763		Baffle		Appelez-nous	-
15	5304483688		Handle, Right, Wiring Cover		Appelez-nous	-
16	5304483693		Panel, Right Side		Appelez-nous	-
17	5304502332		Valve, Cut-off		Appelez-nous	-
18	5304483715		Coil, 4-way Valve				$ 64.50
19	5304502352		Bulkhead, Partition		Appelez-nous	-
20	5304502353		Condenser		Appelez-nous	-
21	5304483682		Grille, Rear		Appelez-nous	-
22	5304483683		Clamp, Wire		Appelez-nous	-
23	5304483679		Cover, Unit, Top		Appelez-nous	-
24	5304502335		Bracket, Motor Support		Appelez-nous	-
26	5304483678		Bracket, Condenser, Support		Appelez-nous	-
27	5304488523		Panel, Left Side		Appelez-nous	-
29	5304503239		Control Box Assembly				$ 671.38
36	5304483684		Sensor Kit				$ 99.94
37	5304502340		Sensor, Temperature		Appelez-nous	-
38	5304483700		Plate, Insulator, Control Box		Appelez-nous	-
