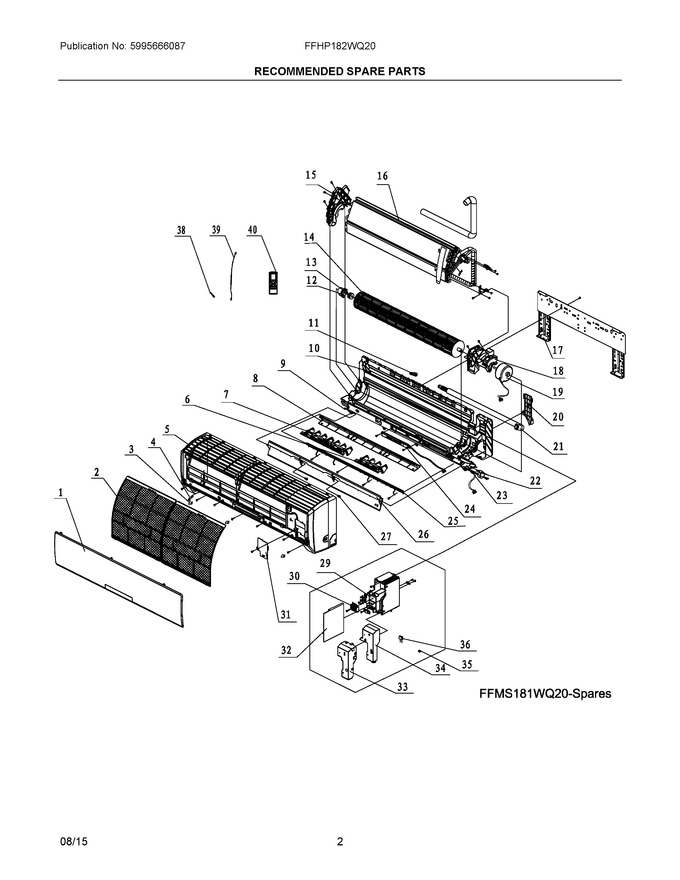

02 - Recommended Spare Parts
03 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304502341 | Panel, Front |
|
- | |||||
| 2 | 5304483577 | Filter, Air |
|
- | |||||
| 3 | 5304482789 | Cover, Screws, Front Assembly |
|
- | |||||
| 4 | 5304483578 | Baffle |
|
- | |||||
| 5 | 5304502312 | Frame, Front Assembly |
|
- | |||||
| 6 | 5304483580 | Louver, Vertical (right) |
|
- | |||||
| 7 | 5304483581 | Louver, Vertical (left) |
|
- | |||||
| 8 | 5304483582 | Diffuser, Air Vent, Main Louver |
|
- | |||||
| 9 | 5304482905 | Bushing, Louver Shaft, Left |
|
- | |||||
| 10 | 5304483583 | Cabinet, Rear |
|
- | |||||
| 11 | 5304482805 | Drain Plug, Drip Tray |
|
- | |||||
| 12 | 5304482777 | Bearing Block, Housing, W/o'ring |
|
$ 10.61 | |||||
| 13 | 5304502202 | O'ring, Bearing, Gasket/seal |
|
$ 20.48 | |||||
| 14 | 5304483584 | Blower Wheel, Cross Flow Fan |
|
$ 112.19 | |||||
| 15 | 5304502313 | Support, Evaporator |
|
- | |||||
| 16 | 5304483586 | Evaporator |
|
- | |||||
| 17 | 5304483587 | Bracket, Mounting Plate, Wall |
|
- | |||||
| 18 | 5304502314 | Housing, Motor Cover |
|
- | |||||
| 19 | 5304502315 | Motor, Blower Fan |
|
$ 263.66 | |||||
| 20 | 5304482791 | Clamp, Drain Hose |
|
- | |||||
| 21 | 5304483590 | Hose, Drain |
|
- | |||||
| 22 | 5304483591 | Motor, Louver, Horizontal |
|
- | |||||
| 23 | 5304482907 | Lever, Louver Control, Crank |
|
- | |||||
| 24 | 5304483592 | Pc Board, Display/input |
|
- | |||||
| 25 | 5304483593 | Grille, Rear |
|
- | |||||
| 26 | 5304502316 | Louver, Horizontal |
|
- | |||||
| 27 | 5304502199 | Bushing, Lower Shaft |
|
$ 18.79 | |||||
| 29 | 5304502317 | Control Box |
|
- | |||||
| 30 | 5304482804 | Terminal Block, 4-bit |
|
- | |||||
| 31 | 5304502318 | Cover 2, Control Box |
|
- | |||||
| 32 | 5304502347 | Pc Board, Main, Control/power |
|
- | |||||
| 33 | 5304502348 | Shield, Interference, Electrical |
|
- | |||||
| 34 | 5304502320 | Cover 1, Control Box |
|
- | |||||
| 35 | 5304502321 | Connector, Electrical, Jumper |
|
- | |||||
| 36 | 5304502322 | Capacitor, Blower Motor |
|
- | |||||
| 38 | 5304502212 | Sensor, Temperature, Ambient |
|
- | |||||
| 39 | 5304502213 | Sensor, Temperature, Evaporator |
|
- | |||||
| 40 | 5304502215 | Remote Control, Transmitter |
|
$ 150.89 |
