Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10741197 Installation Instructions Appelez-nous -
2 W11806565 Arm, Hinge (left Hand)   (Replaces: 8534854) In-Stock Immediately $ 142.39

3 W10850371 Barrier, Vapor   (Replaces: W10844384) In-Stock Immediately $ 32.88

4 W10919287 Screw   (Replaces: W10696150) Special Order $ 11.24

5 W11763736 Access Panel (black)   (Replaces: W10852733) In-Stock Immediately $ 42.25

6 W10796432 Panel, Front (includes 4, 10, 11 & 16) (black Stainless) Special Order $ 208.89

7 W10917698 Set Screw   (Replaces: W10687133) In-Stock Immediately $ 7.55

8 W11223838 Insulation, Four Layer   (Replaces: W10735304) In-Stock Immediately $ 43.91

9 W10708004 Handle Assembly (stainless)   (Replaces: W10786161) In-Stock Immediately $ 141.35

10 W11157086 Stud, Mounting   (Replaces: W10195726) In-Stock Immediately $ 8.87

11 W10692757 Barrel Nut, Front Panel Special Order $ 16.01

12 WP302868 Screw (black)   (Replaces: 302868) In-Stock Immediately $ 8.18

13 W10831645 Light Pipe   (Replaces: W10794483) Special Order $ 80.79

14 W11116870 Bracket, Control   (Replaces: W10641745) Special Order $ 89.95

15 WP3400071 Screw   (Replaces: 3400071) Special Order $ 8.26

16 W10909682 Nameplate (grey)   (Replaces: W10518672) In-Stock Immediately $ 76.20

17 W11126003 Insulation, Front Panel   (Replaces: W10315897) In-Stock Immediately $ 65.25

18 WP8269016 Clip, Ground   (Replaces: 8269016) Special Order $ 11.21

19 W10871196 Toe Panel (black)   (Replaces: W10737729) Special Order $ 174.04

1A W10746817 Energy Guide Appelez-nous -
1B W10762967 Use & Care Guide Appelez-nous -
1C W10750907 Tech Sheet, English Appelez-nous -
1D W10750908 Tech Sheet, French Appelez-nous -
2A W11806608 Arm, Hinge (right Hand)   (Replaces: 8534853) In-Stock Immediately $ 142.24

6A W10900374 Panel, Front (includes 4, 10, 11 & 16) (stainless)   (Replaces: W10796428) In-Stock Immediately $ 419.85


    View Diagram in Separate Window     Print Icon   Print Part List

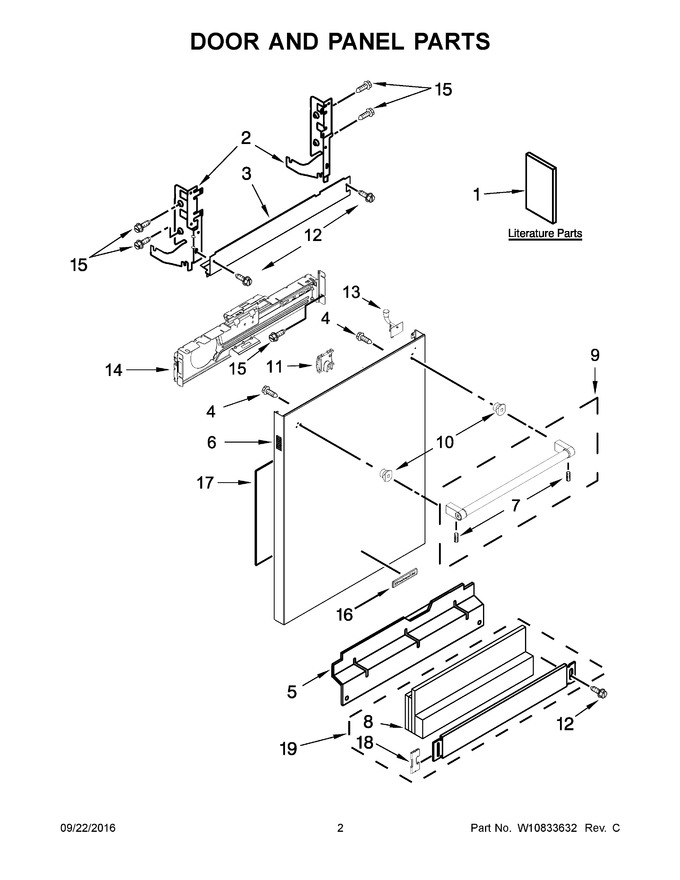

Diagram for KDTM354ESS1
