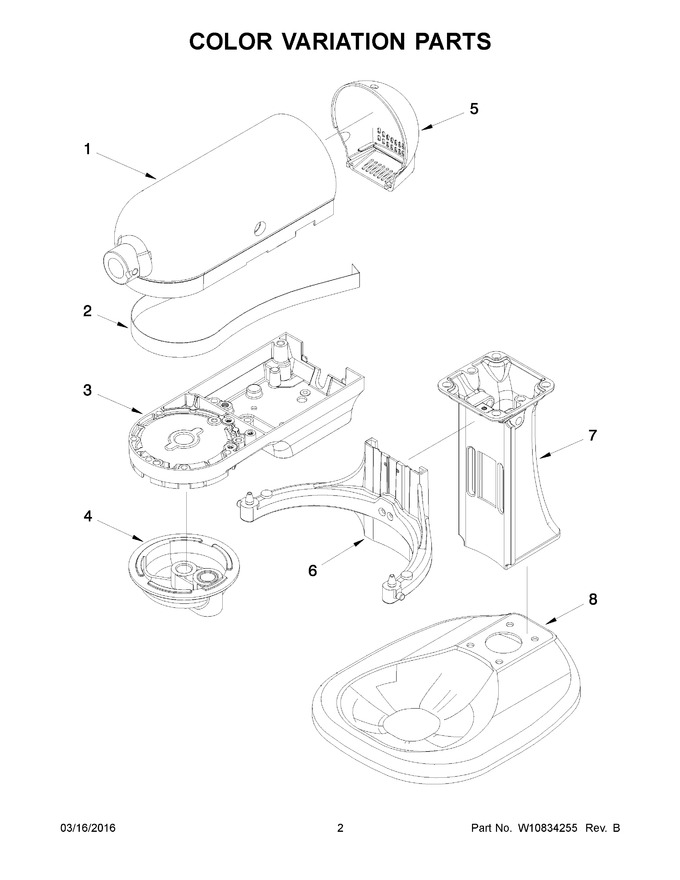

02 - Color Variation Parts
03 - Case, Gearing And Planetary Unit Parts
04 - Motor And Control Unit Parts
05 - Base And Pedestal Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP240291-21 | Motor Housing (empire Red) (Replaces: 240291-21) |
|
$ 101.29 | |||||
| 2 | W10158179 | Trim Band (black) |
|
- | |||||
| 3 | 9704499 | Lower Gearcase (empire Red) |
|
- | |||||
| 4 | W11084831 | Planetary (empire Red) (Replaces: 240286-23) |
|
$ 27.92 | |||||
| 5 | W11084313 | End Cover (empire Red) (Replaces: 240253-22) |
|
$ 29.89 | |||||
| 6 | 3179318 | Bowl Support And Pins (empire Red) |
|
- | |||||
| 7 | 9702393 | Column (empire Red) |
|
- | |||||
| 8 | 3179299 | Base & Foot Assembly (empire Red) |
|
- | |||||
| 1A | WP240291-13 | Motor Housing (onyx Black) (Replaces: 240291-13) |
|
$ 101.67 | |||||
| 1B | W10121193 | Motor Housing (silver Metallic) |
|
- | |||||
| 1C | W11672793 | Motor Housing (white) (Replaces: 240291-1) |
|
$ 113.22 | |||||
| 3A | 240354-43 | Lower Gearcase (onyx Black) |
|
- | |||||
| 3B | W10158521 | Lower Gearcase (silver Metallic) |
|
- | |||||
| 3C | 240354-3 | Lower Gearcase (white) |
|
$ 49.32 | |||||
| 4A | W11199173 | Planetary (onyx Black) (Replaces: 240286-16) |
|
$ 32.71 | |||||
| 4B | 9706670 | Planetary (silver Metallic) (Replaces: W10121190) |
|
Immediately | $ 45.31 | ||||
| 4C | WP240286-1 | Planetary (white) (Replaces: 240286-1) |
|
Immediately | $ 25.99 | ||||
| 5A | 240253-14 | End Cover (onyx Black) |
|
$ 48.42 | |||||
| 5B | W10121188 | End Cover (silver Metallic) |
|
- | |||||
| 5C | WP240253-1 | End Cover (white) (Replaces: 240253-1) |
|
$ 21.47 | |||||
| 6A | 3179311 | Bowl Support And Pins (onyx Black) |
|
- | |||||
| 6B | W10158518 | Bowl Support And Pins (silver Metallic) |
|
- | |||||
| 6C | 3179300 | Bowl Support And Pins (white) |
|
$ 66.43 | |||||
| 7A | 240148-15 | Column (onyx Black) |
|
- | |||||
| 7B | W10158516 | Column (silver Metallic) |
|
- | |||||
| 7C | 240148-4 | Column (white) |
|
- | |||||
| 8A | 3179292 | Base & Foot Assembly (onyx Black) |
|
- | |||||
| 8B | W10158515 | Base & Foot Assembly (silver Metallic) |
|
- | |||||
| 8C | 3179280 | Base & Foot Assembly (white) |
|
- |
