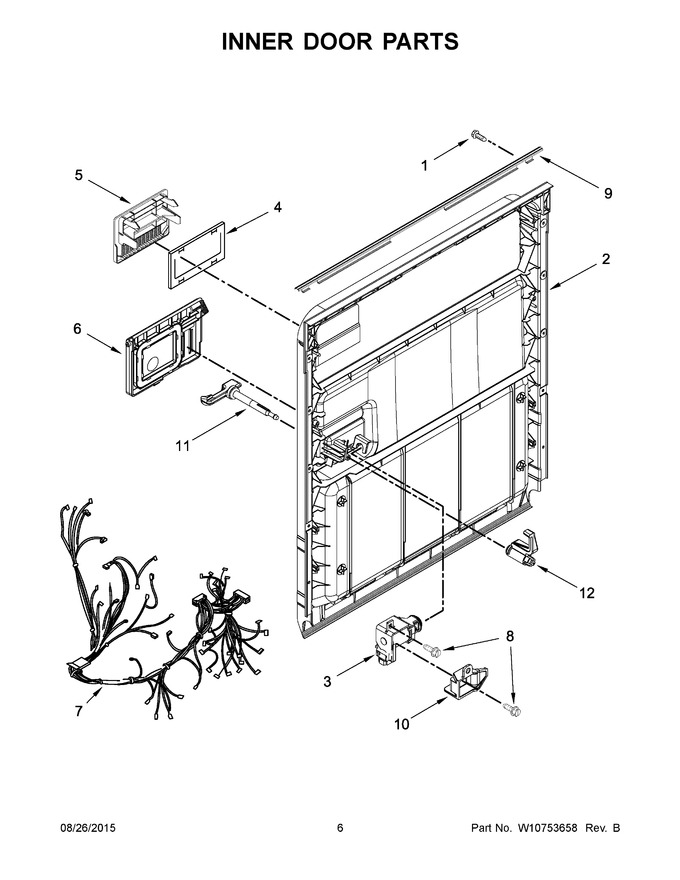

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10348413 | Screw (Replaces: W10348413) |
|
Immediately | $ 8.41 | ||||
| 2 | W10514353 | Inner Door |
|
- | |||||
| 3 | W10514359 | Solenoid, Dispenser |
|
- | |||||
| 4 | W10475829 | Gasket, Vent |
|
$ 21.55 | |||||
| 5 | WPW10254548 | Deflector, Vent (Replaces: W10254548) |
|
$ 73.14 | |||||
| 6 | W11651613 | Cover, Dispenser (Replaces: W10510901) |
|
$ 62.28 | |||||
| 7 | W10612070 | Wiring Harness |
|
$ 139.28 | |||||
| 8 | WPW10177098 | Screw (Replaces: W10177098) |
|
Immediately | $ 8.02 | ||||
| 9 | WP8269296 | Seal, Door/console (Replaces: 8269296) |
|
Immediately | $ 188.17 | ||||
| 10 | W10544186 | Retainer, Solenoid |
|
$ 22.76 | |||||
| 11 | W11229687 | Latch, Dispenser (Replaces: W10545345) |
|
$ 69.97 | |||||
| 12 | W11398648 | Actuator, Dispenser (Replaces: W10510899) |
|
$ 70.27 |
