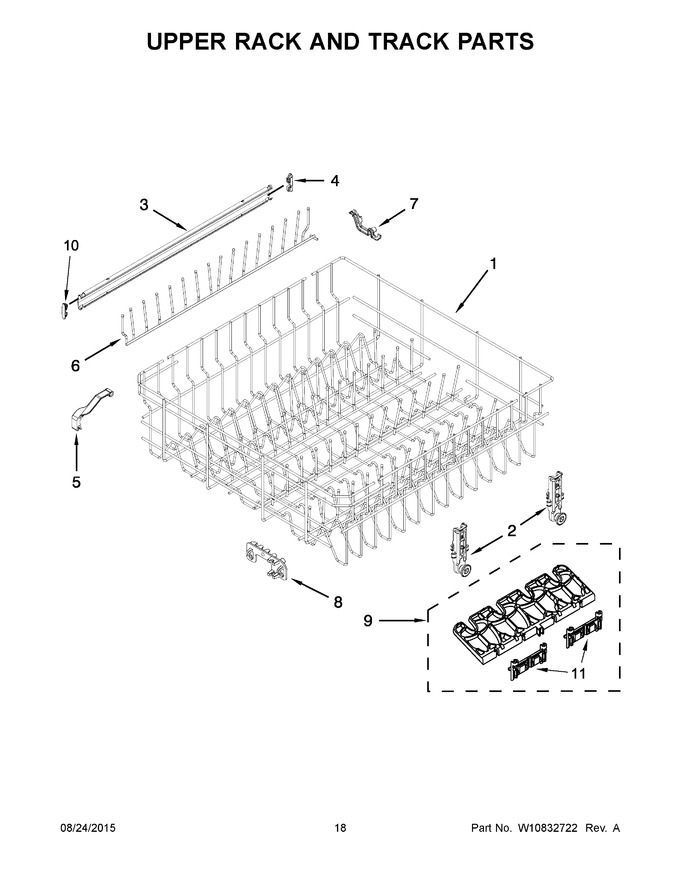

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11842830 | Dishrack, Upper (Replaces: W10350380) |
|
Immediately | $ 179.58 | ||||
| 2 | W11157085 | Mount, Wheel Fixed 2-position (Replaces: W10671907) |
|
Immediately | $ 28.30 | ||||
| 3 | WP3385089 | Track, Dishrack (Replaces: 3385089) |
|
Immediately | $ 80.00 | ||||
| 4 | WP8565925 | Stop, Track (non-removable) (Replaces: 8565925) |
|
Immediately | $ 6.87 | ||||
| 5 | WPW10267076 | Clip, Dispenser Guard (Replaces: W10267076) |
|
$ 31.56 | |||||
| 6 | W10727426 | Tine Row, Fold Down (Replaces: 8562030) |
|
Immediately | $ 85.10 | ||||
| 7 | WPW10082853 | Clip, Pivot (Replaces: W10082853) |
|
Immediately | $ 5.40 | ||||
| 8 | W10803790 | Positioner, Dual (Replaces: W10671900) |
|
$ 89.66 | |||||
| 9 | WPW10082649 | Cupshelf Assembly (Replaces: W10082649) |
|
Immediately | $ 109.45 | ||||
| 10 | WP8565925 | Stop, Track (removable) (Replaces: W10082861) |
|
Immediately | $ 6.87 | ||||
| 11 | WPW10082848 | Clip, Cupshelf (Replaces: W10082848) |
|
Immediately | $ 8.27 |
