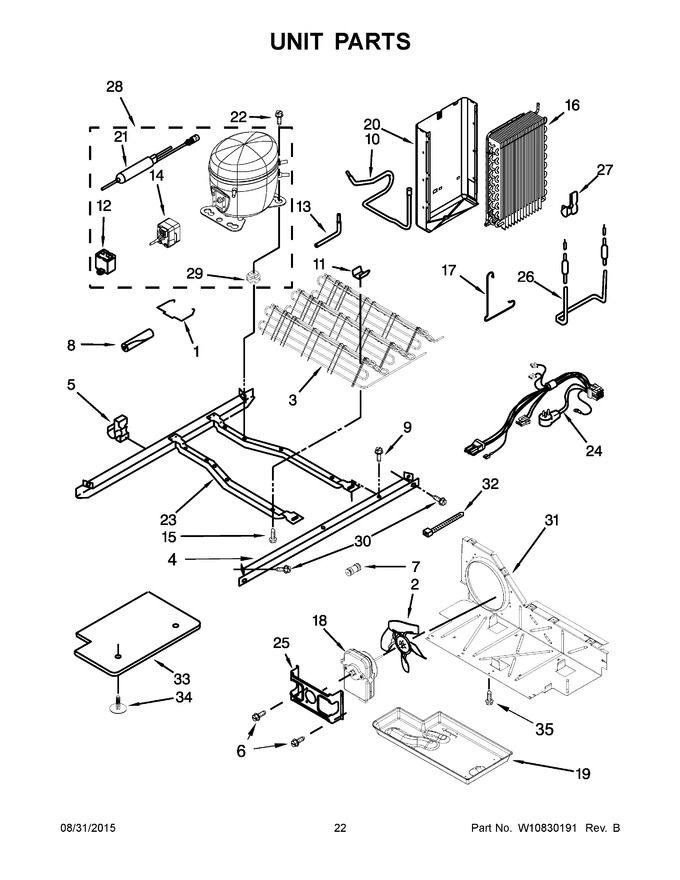

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10204187 | Strap, Bale |
|
- | |||||
| 2 | W10156818 | Blade, Fan (Replaces: 12825802) |
|
Immediately | $ 62.11 | ||||
| 3 | 2324712 | Assembly, Condenser |
|
$ 323.45 | |||||
| 4 | W10196313 | Rail, Unit Mounting |
|
- | |||||
| 5 | W10812039 | Clip, Wire (Replaces: 2326941) |
|
$ 11.12 | |||||
| 6 | WP8533993 | Screw (Replaces: 8533993) |
|
$ 11.21 | |||||
| 7 | WP2300868 | Connector, Union (Replaces: W10271541) |
|
Immediately | $ 29.05 | ||||
| 8 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 21.32 | ||||
| 9 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 10 | W10576260 | Tube, Suction |
|
- | |||||
| 11 | W10683556 | Clip, Condenser (Replaces: 2311725) |
|
$ 19.38 | |||||
| 12 | WPW10350564 | Capacitor (Replaces: W10350564) |
|
Immediately | $ 99.49 | ||||
| 13 | 2325479 | Tube, Process |
|
- | |||||
| 14 | WPW10197428 | Device, Combination Start (start Relay And Overload) (Replaces: W10197428) |
|
Immediately | $ 89.21 | ||||
| 15 | W11544659 | Screw (Replaces: 8281232) |
|
$ 14.35 | |||||
| 16 | WP2188823 | Evaporator (Replaces: 2188823) |
|
Immediately | $ 381.49 | ||||
| 17 | 2161324 | Clip, Defrost Heater |
|
- | |||||
| 18 | WP2188874 | Motor, Condenser (Replaces: W10508362) |
|
Immediately | $ 113.96 | ||||
| 19 | WPW10614158 | Tray, Evaporator (Replaces: W10614158) |
|
Immediately | $ 113.18 | ||||
| 20 | W10194475 | Assembly, Heat Shield And Drain Pan |
|
- | |||||
| 21 | WPW10143759 | Drier (Replaces: W10771114) |
|
Immediately | $ 30.78 | ||||
| 22 | W11417341 | Screw (Replaces: W10476309) |
|
$ 14.07 | |||||
| 23 | W10196321 | Frame, Unit Mounting |
|
- | |||||
| 24 | W10670171 | Assembly, Unit Wire |
|
- | |||||
| 25 | WP2181929 | Bracket, Fan Motor (Replaces: 2181929) |
|
$ 12.93 | |||||
| 26 | WP2323198 | Heater, Defrost (Replaces: 2188175) |
|
Immediately | $ 90.70 | ||||
| 27 | 2161324 | Clip, Defrost Heater |
|
- | |||||
| 28 | W10309988 | Compressor (also Order 876765 Tube Kit) (Replaces: W10145247) |
|
Immediately | $ 587.29 | ||||
| 29 | WPW10169124 | Grommet (Replaces: 10835903) |
|
Immediately | $ 7.55 | ||||
| 30 | 489340 | Bolt |
|
- | |||||
| 31 | W10332806 | Baffle, Air |
|
$ 102.82 | |||||
| 32 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 8.30 | |||||
| 33 | W10466698 | Assembly, Unit Cover (bottom) |
|
$ 103.75 | |||||
| 34 | 489396 | Clip |
|
$ 11.26 | |||||
| 35 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| NI | 978028 | Valve, Access |
|
- | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access |
|
$ 137.25 | |||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 95.92 | ||||
| NI | N/P | Refrigerant Charge 5.5 Oz (r-134a) |
|
- | |||||
| NI | WP978025 | Valve, Access (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 134.49 | ||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 21.64 |
