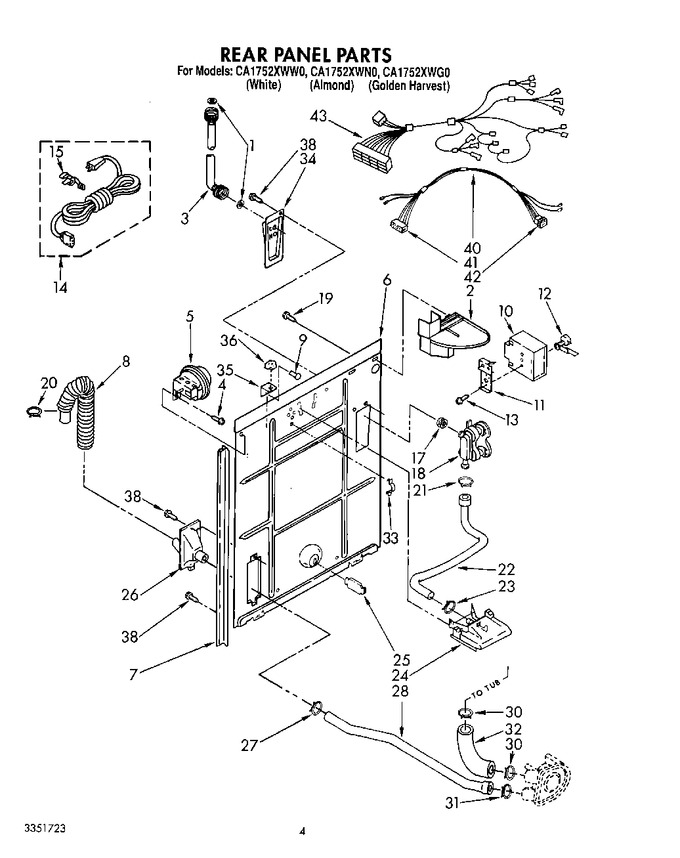

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP16123 | Washer, Water Inlet Hose (4) (1-1/16 X 5/8) (Replaces: 16123) |
|
$ 7.70 | |||||
| 2 | 3352511 | Shield, Harness & Etc |
|
- | |||||
| 3 | WP89503 | Hose, Water Inlet (2) (Replaces: 3358797) |
|
Immediately | $ 24.09 | ||||
| 4 | WP90767 | Screw, 8a X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 5 | 3353831 | Pressure Switch |
|
- | |||||
| 6 | 3353809 | Panel, Rear |
|
- | |||||
| 7 | WP62747 | Pad, Rear Panel (r.h. - Short) (Replaces: 3354204) |
|
$ 26.26 | |||||
| 7 | WP62747 | Pad, Rear Panel (l.h. - Long) (Replaces: 3354205) |
|
$ 26.26 | |||||
| 8 | 285666 | Hose, Drain (10 Foot) (not Included) (Replaces: 661577) |
|
Immediately | $ 62.34 | ||||
| 8 | 285664 | Hose, Drain (5 1/2 Foot) (Replaces: 661575) |
|
Immediately | $ 36.89 | ||||
| 9 | 63554 | Rivet (2) |
|
- | |||||
| 10 | 3354024 | Timer, 115v. - 60hz. |
|
- | |||||
| 11 | 3353814 | Bracket, Mtg. |
|
- | |||||
| 12 | 98654 | Set Screw |
|
- | |||||
| 12 | WP354987 | E-ring (Replaces: 354987) |
|
Immediately | $ 11.75 | ||||
| 12 | 385571 | Clutch, Timer |
|
$ 42.89 | |||||
| 13 | WP356418 | Screw (2) (Replaces: 96435) |
|
$ 7.92 | |||||
| 14 | 285928 | Cord, Power (Replaces: 3359548) |
|
$ 131.11 | |||||
| 15 | 62733 | Strain Relief, Power Cord To Rear Panel |
|
- | |||||
| 17 | WP96160 | Screen, Filter (2) (Replaces: 96160) |
|
$ 11.71 | |||||
| 18 | 285805 | Valve, Water Mixing (Replaces: 358992) |
|
Immediately | $ 55.08 | ||||
| 19 | WP3351614 | Screw, Ground (2) (Replaces: 90864) |
|
Immediately | $ 6.95 | ||||
| 20 | WP3357331 | Clamp, Drain Hose (Replaces: 3357331) |
|
$ 7.56 | |||||
| 21 | WP596669 | Clamp, Hose (Replaces: 660632) |
|
Immediately | $ 8.40 | ||||
| 22 | 3353815 | Hose, Vacuum Break |
|
- | |||||
| 23 | WP596669 | Clamp, Hose (Replaces: 371503) |
|
Immediately | $ 8.40 | ||||
| 24 | WP3347034 | Break, Vacuum (Replaces: 3347034) |
|
Immediately | $ 75.28 | ||||
| 25 | WP8519200 | Support, Rear Panel (Replaces: 63290) |
|
Immediately | $ 18.90 | ||||
| 26 | WPW10358149 | Connector, Drain Hose (Replaces: 3355497) |
|
Immediately | $ 48.16 | ||||
| 27 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 28 | WP3348552 | Hose, Pump To Drain Connector (Replaces: 3359818) |
|
$ 84.85 | |||||
| 30 | WP371502 | Clamp, Hose (Replaces: 371502) |
|
$ 11.53 | |||||
| 31 | WP285655 | Clamp, Hose (Replaces: 660628) |
|
Immediately | $ 8.39 | ||||
| 32 | 285871 | Hose, Pump To Tub (Replaces: 62731) |
|
Immediately | $ 26.68 | ||||
| 33 | 64162 | Retainer, Hose |
|
- | |||||
| 34 | 3353777 | Plate, Mixing Valve |
|
- | |||||
| 35 | 3347824 | Bracket, Top Lock |
|
- | |||||
| 36 | WP90406 | Nut, Cage (Replaces: 90406) |
|
$ 8.14 | |||||
| 38 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 7.82 | |||||
| 40 | 3354591 | Harness, Timer (includes Illus. 68 & 69) |
|
- | |||||
| 41 | W10876590 | Block, Timer Disconnect (Replaces: 352089) |
|
$ 12.76 | |||||
| 42 | 384474 | Cap, Terminal (15 Way) |
|
- | |||||
| 43 | 3355005 | Harness, Console |
|
- |
