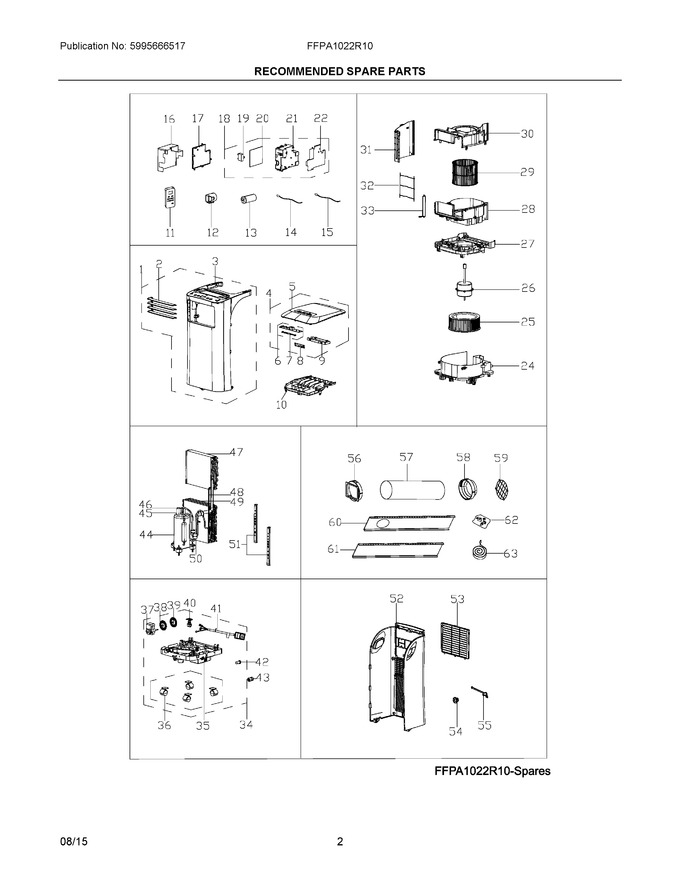

02 - Recommended Spare Parts
03 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304502003 | Panel Assembly, Front, W/louvers |
|
- | |||||
| 2 | 5304502004 | Louver, Horizontal |
|
- | |||||
| 3 | 5304502005 | Panel, Front |
|
- | |||||
| 4 | 5304502006 | Control Panel Assembly, Top |
|
- | |||||
| 5 | 5304502007 | Panel, Top |
|
- | |||||
| 6 | 5304502008 | Display Box Assembly, W/pcb |
|
- | |||||
| 7 | 5304502009 | Connector, Display Board, Wire |
|
- | |||||
| 8 | 5304502010 | Receiver, Remote, Pc Board |
|
- | |||||
| 9 | 5304502011 | Cover, Display Board |
|
- | |||||
| 10 | 5304502012 | Partition/base, Display Box |
|
- | |||||
| 11 | 5304502013 | Remote Control, Transmitter |
|
- | |||||
| 12 | 5304502014 | Cap, Capacitor, Compressor |
|
- | |||||
| 13 | 5304502015 | Capacitor, Compressor |
|
- | |||||
| 14 | 5304502016 | Sensor, Temperature, Room |
|
- | |||||
| 15 | 5304502017 | Sensor, Temperature, Evaporator |
|
- | |||||
| 16 | 5304502018 | Control Box, Fireproof |
|
- | |||||
| 17 | 5304502019 | Cover, Control Box |
|
- | |||||
| 18 | 5304502020 | Control Assembly, With Main Pcb |
|
- | |||||
| 19 | 5304502021 | Capacitor, Fan Motor |
|
- | |||||
| 20 | 5304502022 | Pc Board, Main, Control/power |
|
$ 186.55 | |||||
| 21 | 5304502023 | Housing, Control Board, Main |
|
- | |||||
| 22 | 5304502024 | Cover, Control Housing |
|
- | |||||
| 24 | 5304502025 | Scroll, Blower Housing, Bottom |
|
- | |||||
| 25 | 5304502026 | Blower, Exhaust Fan, Bottom |
|
- | |||||
| 26 | 5304502027 | Motor, Blower Fan |
|
- | |||||
| 27 | 5304502028 | Cover, Exhaust Scroll |
|
- | |||||
| 28 | 5304502029 | Scroll, Air Inlet |
|
- | |||||
| 29 | 5304502030 | Blower, Air Inlet Fan, Top |
|
- | |||||
| 30 | 5304502031 | Cover, Scroll, Air Inlet |
|
- | |||||
| 31 | 5304502032 | Panel, Right Side |
|
- | |||||
| 32 | 5304502033 | Grille, Air Outlet |
|
- | |||||
| 33 | 5304502034 | Louver, Vertical |
|
- | |||||
| 34 | 5304502035 | Base Assembly, Chassis |
|
- | |||||
| 35 | 5304502036 | Base, Unit Chassis |
|
- | |||||
| 36 | 5304502037 | Caster, Roller, (4) |
|
$ 23.39 | |||||
| 37 | 5304502038 | Motor, Slinger, Shaded Pole |
|
- | |||||
| 38 | 5304502039 | Slinger, Water Wheel, Condensate |
|
- | |||||
| 39 | 5304502040 | Slinger, Water Wheel 2 |
|
- | |||||
| 40 | 5304502041 | Switch, Water Level |
|
- | |||||
| 41 | 5304536807 | Power Cord, Electric, 115 V, Lcdi (Replaces: 5304502042) |
|
$ 140.95 | |||||
| 42 | 5304502043 | Stopper, Drain, Chassis/base |
|
$ 14.89 | |||||
| 43 | 5304502044 | Cover, Drain Connector |
|
$ 14.49 | |||||
| 44 | 5304502045 | Compressor |
|
- | |||||
| 45 | 5304502046 | Overload Protector, Compressor |
|
- | |||||
| 46 | 5304502047 | Tube, Discharge |
|
- | |||||
| 47 | 5304502048 | Evaporator |
|
- | |||||
| 48 | 5304502049 | Tube, Capillary |
|
- | |||||
| 49 | 5304502050 | Condenser |
|
- | |||||
| 50 | 5304502051 | Tube, Suction |
|
- | |||||
| 51 | 5304502052 | Bracket, Condenser Mtg. |
|
$ 15.90 | |||||
| 52 | 5304502053 | Wrapper, Cabinet, Back |
|
- | |||||
| 53 | 5304502054 | Grille, Air Inlet, Indoor |
|
- | |||||
| 54 | 5304502055 | Connector, Drain Hose, Threaded |
|
- | |||||
| 55 | 5304502056 | Plug, Drain Spigot, Rear |
|
- | |||||
| 56 | 5304537400 | Adapter A, Hose-to-unit (Replaces: 5304502057) |
|
- | |||||
| 57 | 5304502058 | Hose, Exhaust |
|
$ 120.01 | |||||
| 58 | 5304538651 | Adapter B, Hose-to-window (Replaces: 5304502059) |
|
- | |||||
| 59 | 5304502060 | Screen, Exhaust Hose |
|
$ 65.92 | |||||
| 60 | 5304502061 | Window Slider-1, With Hole |
|
$ 120.74 | |||||
| 61 | 5304502062 | Window Slider-2, No Hole |
|
$ 104.90 | |||||
| 62 | 5304502063 | Installation Kit, Mtg Hardware |
|
$ 14.89 | |||||
| 63 | 5304502064 | Seal Kit, Foam, Sash Filler |
|
$ 32.54 |
