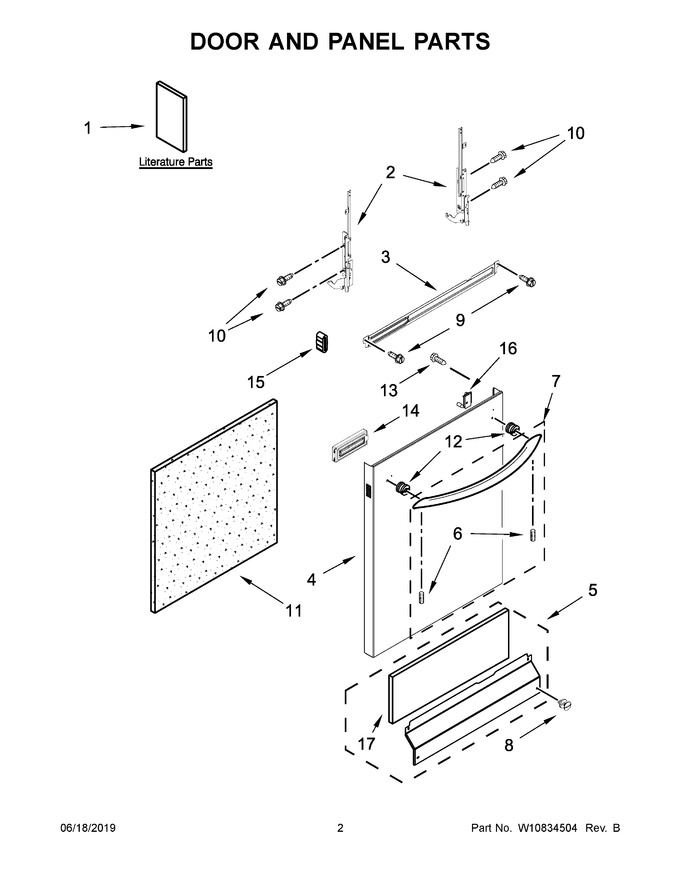

02 - Door And Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10788856		Installation Instructions		Appelez-nous	-
2	W11806566		Arm, Hinge (left Hand)   (Replaces: W10274922)			Immediately	$ 71.77
3	W10850371		Stiffener, Door   (Replaces: W10803537)			Immediately	$ 32.88
4	W10577291		Panel, Front (includes 12, 13, 14 & 16) (black)				$ 395.27
5	W10827631		Access Panel (black)   (Replaces: W10799402)			Immediately	$ 195.64
6	W11366418		Set Screw   (Replaces: W10223573)			Immediately	$ 15.79
7	W10786155		Handle Assembly (black)		Appelez-nous	-
8	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 30.39
9	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
10	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 8.80
11	W10254613		Insulation, Door				$ 9.47
12	W11157086		Stud, Mounting   (Replaces: W11049903)			Immediately	$ 8.87
13	W10826179		Screw   (Replaces: W10316572)			Immediately	$ 7.55
14	W11105961		Grill, Vent Assembly (black)		Appelez-nous	-
15	WP8268961		Sleeve, Friction   (Replaces: 8268961)			Immediately	$ 5.93
16	W10500331		Light, Pipe				$ 33.41
17	W10831329		Insulation, Toe Panel   (Replaces: W10519755)			Immediately	$ 43.30
14A	W11105960		Grill, Vent Assembly (white)		Appelez-nous	-
14B	W11105958		Grill, Vent Assembly (silver)		Appelez-nous	-
1A	W11236366		Energy Guide		Appelez-nous	-
1B	W10747869		Use & Care Guide		Appelez-nous	-
1C	W10751166		Tech Sheet, English		Appelez-nous	-
1D	W10751168		Tech Sheet, French		Appelez-nous	-
2A	W11613572		Arm, Hinge (right Hand)   (Replaces: W10274921)			Immediately	$ 83.93
4A	W10577292		Panel, Front (includes 12, 13, 14 & 16) (white)				$ 395.38
4B	W11131696		Panel, Front (includes 12, 13, 14 & 16) (stainless)   (Replaces: W10577294)				$ 396.66
5A	W10827632		Access Panel (white)   (Replaces: W10369026)			Immediately	$ 163.70
7A	W11133735		Handle Assembly (white)   (Replaces: W10786154)				$ 195.86
7B	W11133736		Handle Assembly (stainless)   (Replaces: W10788019)		Appelez-nous	-
8A	WPW10503549		Fastener (white)   (Replaces: W10503549)			Immediately	$ 7.77
