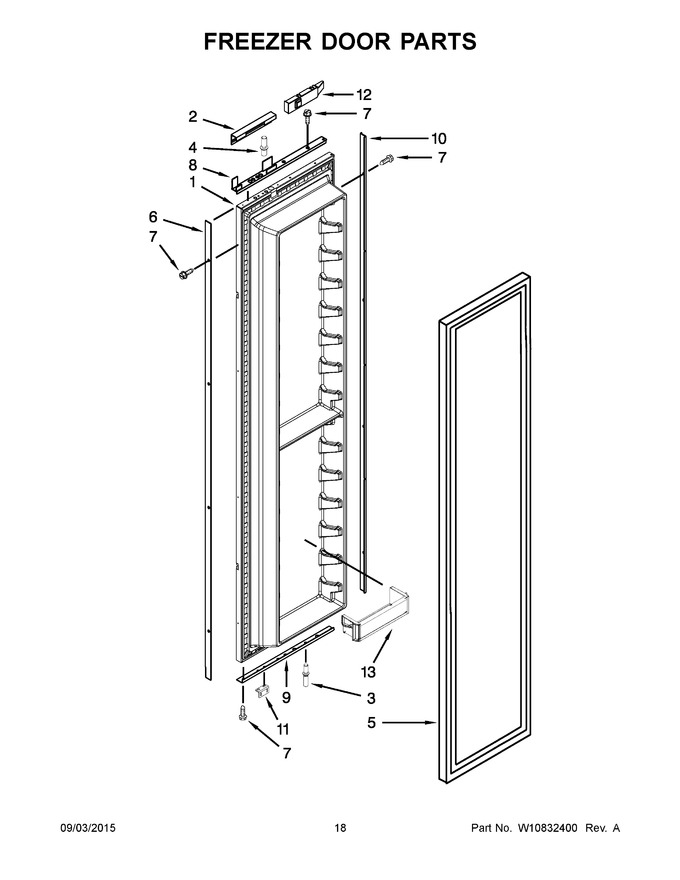

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11827069 | Door, Freezer (Replaces: W10783288) |
|
$ 870.65 | |||||
| 2 | W10775727 | Cover, Door (top) (charcoal) |
|
Immediately | $ 129.22 | ||||
| 3 | W11337869 | Pin, Bottom Door (Replaces: W10234206) |
|
$ 58.42 | |||||
| 4 | W10234194 | Pin, Top Door |
|
$ 15.89 | |||||
| 5 | W10800809 | Gasket, Door (grey) (Replaces: W10764833) |
|
Immediately | $ 315.93 | ||||
| 6 | W10749306 | Trim, Door (handle Side) (charcoal) |
|
$ 193.36 | |||||
| 7 | W10851443 | Screw (black) (Replaces: 8281252) |
|
Immediately | $ 7.32 | ||||
| 8 | W10749289 | Trim, Top Door (charcoal) |
|
- | |||||
| 9 | W10749616 | Trim, Bottom Door (charcoal) |
|
- | |||||
| 10 | W10749614 | Trim, Door (hinge Side) (charcoal) |
|
$ 204.51 | |||||
| 11 | W10606841 | Bracket, Panel Mounting (grey) |
|
$ 35.83 | |||||
| 12 | W10606813 | Insert, Door Arm Top (grey) |
|
$ 32.74 | |||||
| 13 | W10594374 | Bin, Shallow |
|
- | |||||
| 12A | W10606814 | Insert, Door Arm Bottom (grey) |
|
$ 31.02 |
