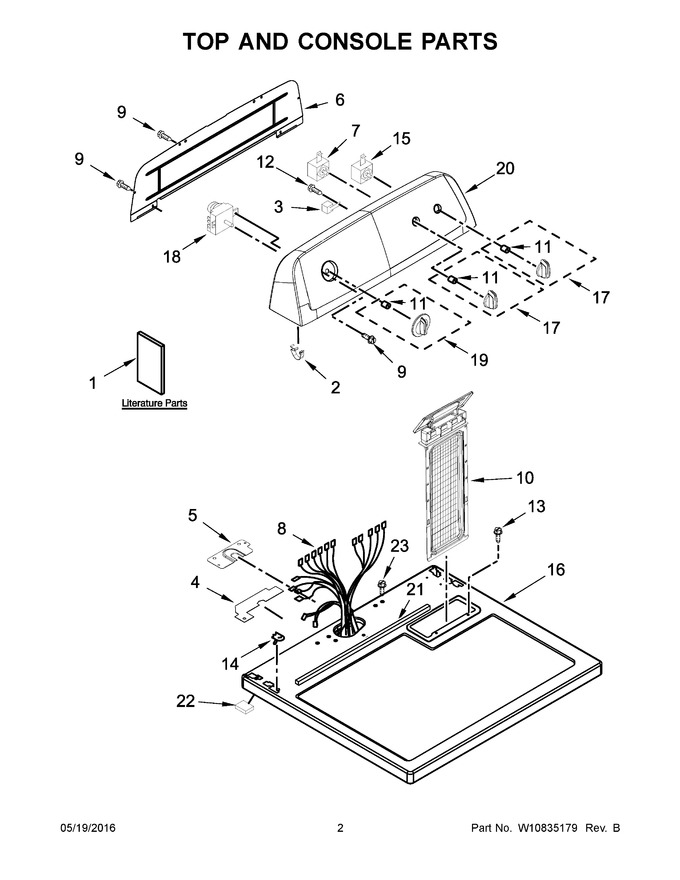

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10514172		Installation Instructions		Appelez-nous	-
2	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
4	W10112603		Seal, Harness		Appelez-nous	-
5	W10112578		Bracket, Harness		Appelez-nous	-
6	WPW10416486		Panel, Rear Console   (Replaces: W10416486)				$ 132.39
7	W11661755		Switch, Rotary   (Replaces: W10420747)				$ 34.70
8	W10450289		Harness, Main		Appelez-nous	-
9	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
10	W11778253		Lint Screen (white)   (Replaces: W10717210)			Immediately	$ 54.63
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
13	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
14	W11213336		Nut, "u   (Replaces: W10298336)				$ 8.13
15	WPW10446920		Switch, Push To Start   (Replaces: W10446920)			Immediately	$ 88.11
16	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 349.25
17	WPW10453947		Assembly, Knob (white)   (Replaces: W10453947)				$ 54.76
18	WPW10436303		Assembly, Timer   (Replaces: W10436303)			Immediately	$ 197.69
19	WPW10711289		Assembly, Timer Knob (white)   (Replaces: W10711289)			Immediately	$ 8.33
20	WPW10429629		Panel, Control (white)   (Replaces: W10429629)				$ 270.31
21	3389682		Spacer, Toe Panel				$ 9.23
22	W10316616		Seal, Foam				$ 27.79
23	W10850756		Screw   (Replaces: 8533974)				$ 8.20
1A	W10096991		Use And Care Guide		Appelez-nous	-
1B	W10185985		Wiring Diagram		Appelez-nous	-
