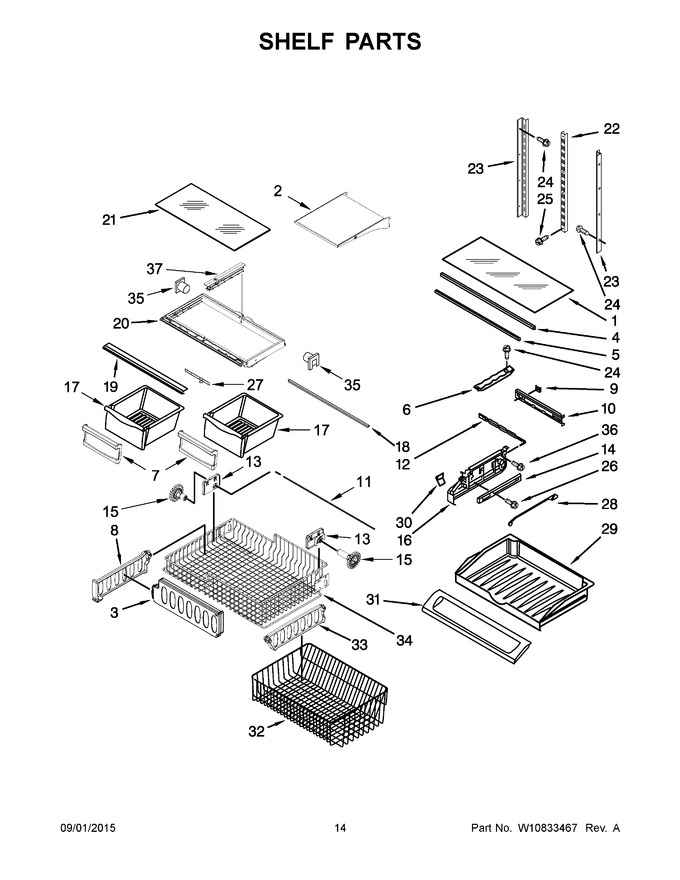

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP67006704 | Glass, Shelf (Replaces: 12204824N) |
|
$ 212.77 | |||||
| 2 | W11540779 | Assembly, Shelf (Replaces: W10743547) |
|
$ 152.48 | |||||
| 3 | W10171558 | Divider, Basket (upper) |
|
$ 42.49 | |||||
| 4 | W11210956 | Trim, Pantry Glass (Replaces: W10528935) |
|
$ 36.20 | |||||
| 5 | WP12227305WD | Brace, Pantry (Replaces: 12227305WH) |
|
$ 108.36 | |||||
| 6 | WP67001719 | Track, Deli Drawer (Replaces: 12531901) |
|
Immediately | $ 8.99 | ||||
| 7 | WP67005923 | Front, Crisper Pan (Replaces: 12802602SP) |
|
$ 79.13 | |||||
| 8 | W10241046 | Divider, Basket (upper) |
|
Immediately | $ 29.19 | ||||
| 9 | 67002329 | Gasket, Pantry (Replaces: 12656901) |
|
$ 22.09 | |||||
| 10 | 12656202 | Housing, Control |
|
$ 148.84 | |||||
| 11 | W11173556 | Shaft, Rack (Replaces: W10802333) |
|
$ 32.38 | |||||
| 12 | WP67003793 | Slide, Temperature Control (Replaces: 12655402) |
|
Immediately | $ 78.49 | ||||
| 13 | W10348259 | Mount, Gear (left Hand) |
|
$ 89.87 | |||||
| 14 | WPW10235370 | Glide, Pantry (Replaces: W10235370) |
|
Immediately | $ 199.80 | ||||
| 15 | WPW10474716 | Gear (left Hand) (Replaces: W10474716) |
|
Immediately | $ 32.42 | ||||
| 16 | W10874836 | Endcap, Pantry (left Hand) (Replaces: 12656106) |
|
Immediately | $ 38.43 | ||||
| 17 | WP67004515 | Pan, Crisper (Replaces: 12804601SP) |
|
Immediately | $ 176.72 | ||||
| 18 | WP12642303WD | Brace, Crisper Cover (Replaces: 12642303WD) |
|
$ 112.26 | |||||
| 19 | WPW10231345 | Trim, Crisper (Replaces: W10231345N) |
|
$ 137.67 | |||||
| 20 | WPW10329866 | Frame, Crisper (Replaces: W10329866) |
|
$ 226.44 | |||||
| 21 | W11033333 | Glass, Shelf (Replaces: 12204830) |
|
$ 227.27 | |||||
| 22 | W10273463 | Ladder, Center |
|
$ 29.61 | |||||
| 23 | WPW10569182 | Ladder, Side (Replaces: W10569182) |
|
$ 27.59 | |||||
| 24 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 25 | W10215666 | Screw |
|
$ 9.53 | |||||
| 26 | WP67006415 | Screw (Replaces: 12990512) |
|
$ 8.38 | |||||
| 27 | WP67005864 | Slide, Humidity Control (Replaces: 12530805SP) |
|
Immediately | $ 8.20 | ||||
| 28 | WP67003795 | Bar, Control (Replaces: 12655304) |
|
$ 8.45 | |||||
| 29 | WP67003531 | Drawer, Pantry (Replaces: 12731302) |
|
$ 162.82 | |||||
| 30 | W11498983 | Knob, Temperature Control (Replaces: 12655204) |
|
$ 30.64 | |||||
| 31 | W10827015 | Lid, Pantry (Replaces: 12656813) |
|
Immediately | $ 175.81 | ||||
| 32 | WPW10503184 | Basket, Freezer (lower) (Replaces: W10503184N) |
|
$ 250.08 | |||||
| 33 | W10847995 | Divider, Basket (lower) (Replaces: W10146440) |
|
$ 92.48 | |||||
| 34 | WPW10348246 | Basket, Freezer (upper) (Replaces: W10348246) |
|
$ 274.97 | |||||
| 35 | WP13062602 | Support, Crisper Frame (Replaces: 13062602) |
|
$ 84.87 | |||||
| 36 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 37 | WPW10326469 | Rail, Center Crisper (Replaces: W10326469N) |
|
Immediately | $ 33.37 | ||||
| 13A | W10348260 | Mount, Gear (right Hand) |
|
$ 89.90 | |||||
| 15A | WPW10474715 | Gear (right Hand) (Replaces: W10474715) |
|
Immediately | $ 32.76 | ||||
| 16A | W10874836 | Endcap, Pantry (right Hand) (Replaces: 12656019) |
|
Immediately | $ 38.43 |
