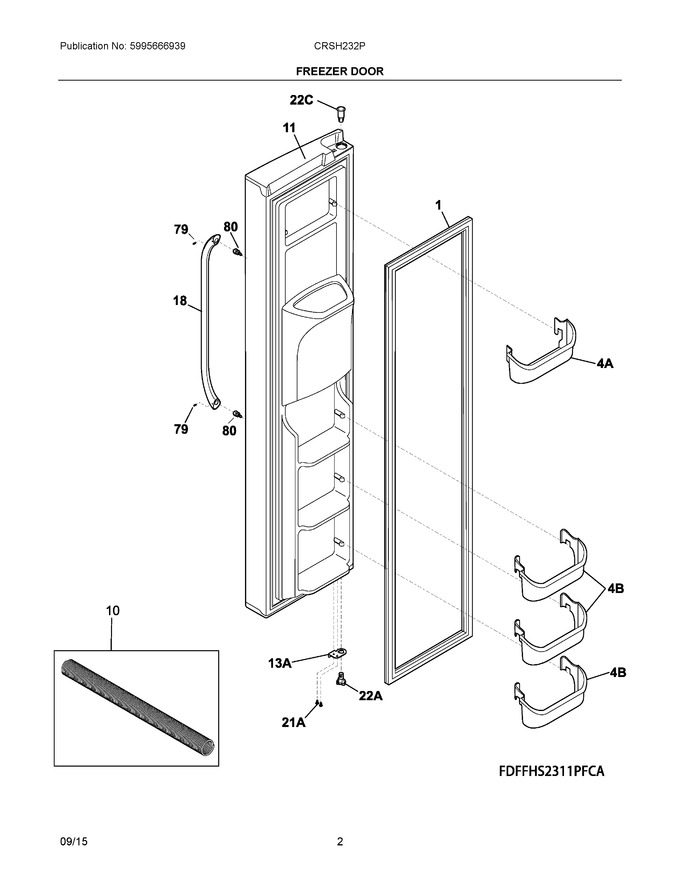

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241786016 | Gasket-frzr Door, White, Magnetic (Replaces: 241786004) |
|
$ 103.47 | |||||
| 10 | 807688301 | Spring, Water Hose, Frz Door |
|
$ 20.63 | |||||
| 11 | 807460002 | Freezer Door, Complete, White |
|
- | |||||
| 18 | 297422020 | Handle-door, White, Refr/frz, W/set Screw (Replaces: 242152702) |
|
$ 110.85 | |||||
| 79 | 218755402 | Screw-set, 10-32 X .500 In |
|
Immediately | $ 36.67 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 20.67 | ||||
| 13A | 240581902 | Door Stop, White, Frzr |
|
$ 52.25 | |||||
| 21A | 240442708 | Screw-#10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 9.27 | |||||
| 22A | 242000501 | Bearing-hinge, Natural, Lower |
|
$ 7.93 | |||||
| 22C | 240328402 | Bearing-hinge, Natural, Upper |
|
$ 22.05 | |||||
| 4A | 240367301 | Bin-door, Frzr-upper |
|
Immediately | $ 49.64 | ||||
| 4B | 240359001 | Bin-door |
|
Immediately | $ 75.68 | ||||
| NI | 5304521763 | Harness-wiring, Door (Replaces: 240552101) |
|
$ 95.21 | |||||
| NI | 241806601 | Connector-water, Straight, 5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 78.40 | ||||
| NI | 240451503 | Screw, Ind Hex Wshr Hd, 8-32 X 0.375, Trilobe |
|
$ 4.21 |
