View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

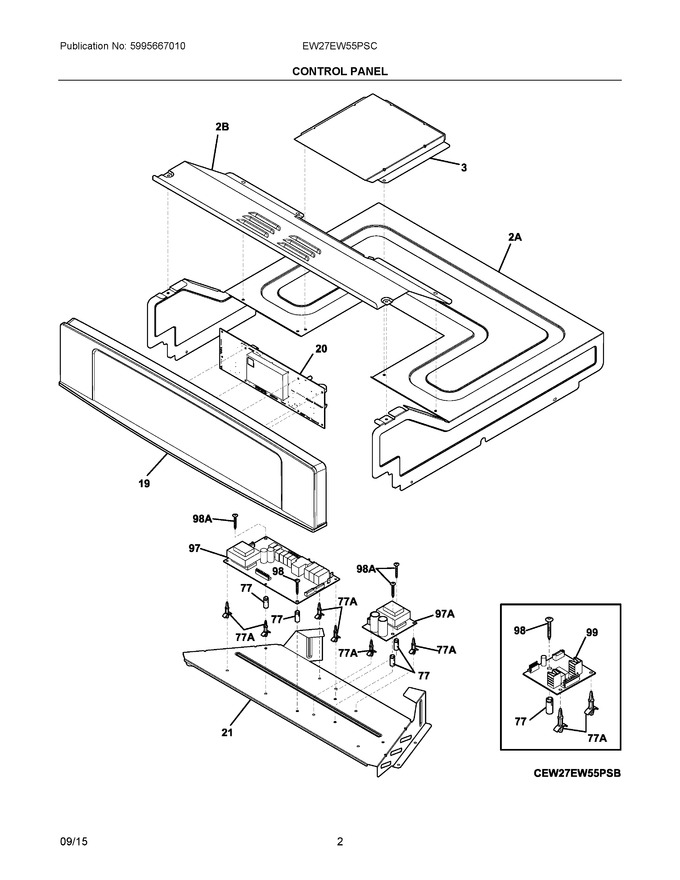

02 - Control Panel
03 - Body
04 - Door
05 - Wiring Diagram
06 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 318577800 | Box, Fan Service |
|
- | |||||
| 19 | 139034533 | Control Panel, Assembly, Black/stainless |
|
$ 1,554.47 | |||||
| 20 | 316576697 | Controller, Electronic, Es630w12 (Replaces: 316576681) |
|
$ 503.16 | |||||
| 21 | 139028000 | Bracket, Mounting |
|
$ 63.00 | |||||
| 77 | 316247900 | Spacer, Power Board |
|
$ 49.61 | |||||
| 97 | 316443941 | Board, Relay |
|
$ 408.56 | |||||
| 98 | 5304401490 | Screw, 6-18 X 1, (2) |
|
- | |||||
| 99 | 316519205 | Board, Relay, Convection, Triac |
|
$ 285.50 | |||||
| 2A | 139003601 | Cover, Oven Top |
|
- | |||||
| 2B | 139003701 | Cover, Control Access |
|
$ 37.01 | |||||
| 77A | 316114100 | Spacer |
|
$ 67.73 | |||||
| 97A | 316535201 | Board, Power Supply, 8v |
|
$ 388.24 | |||||
| 98A | 5303289910 | Screw, Truss Sqdr, 8a X 1 |
|
$ 6.30 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 30.55 | ||||
| NI | 5304496650 | Harness, Wiring, Communication, & Door Ltch Mtr |
|
$ 178.61 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 30.55 | ||||
| NIA | 131892100 | Screw, Control Mtg, 6-32 X .25, (5) (Replaces: 316524400) |
|
- | |||||
| NIA | 318165800 | Spacer, Glass, Foam |
|
$ 19.69 |
