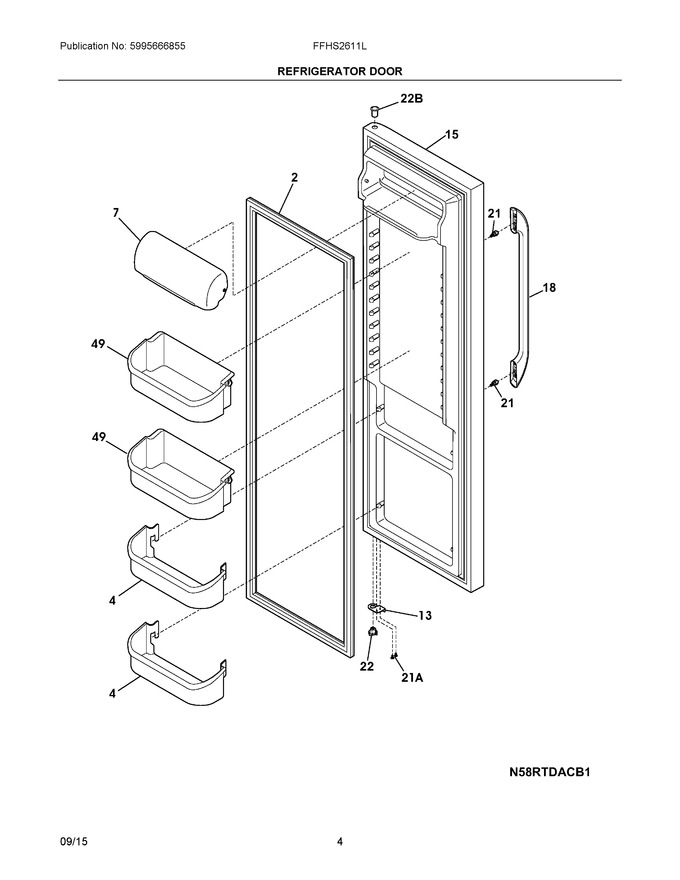

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241786005 | Refrigerator Door Gasket, Grey, Magnetic |
|
Immediately | $ 250.69 | ||||
| 4 | 240323001 | Bin-door, Pseudo, Bottom |
|
Immediately | $ 47.57 | ||||
| 7 | 240326203 | Door-dairy |
|
$ 40.37 | |||||
| 13 | 240581905 | Door Stop, Black, Ref |
|
$ 66.94 | |||||
| 15 | 242038869 | Door-refr, Black, Complete Assy |
|
- | |||||
| 18 | 242059102 | Handle-door, Black |
|
$ 88.69 | |||||
| 21 | 241695904 | Screw |
|
$ 16.01 | |||||
| 22 | 242015302 | Bearing-hinge (ref), Black, Closer |
|
$ 11.80 | |||||
| 49 | 240356401 | Bin-door, Gallon |
|
Immediately | $ 95.15 | ||||
| 21A | 240442708 | Screw-#10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 9.27 | |||||
| 22B | 240328404 | Bearing-hinge, Black, Upper |
|
$ 25.41 |
