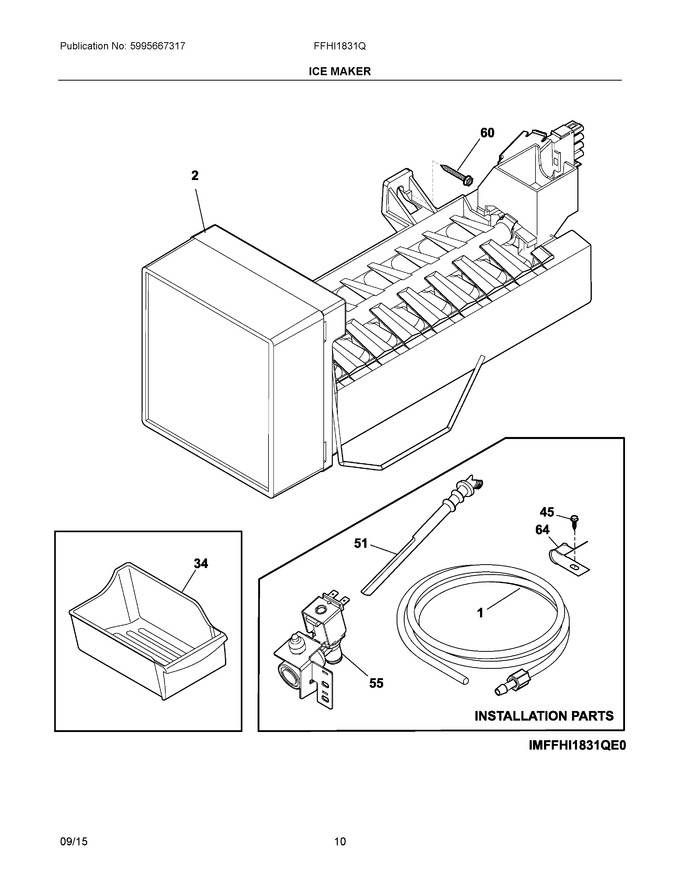

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976921		Tube-water Inlet, Valve To I.m.		Appelez-nous	-
2	241798231		Ice Maker, Radius Cube, Service, 120 V, W/harness Cover   (Replaces: 241798224)			Immediately	$ 223.30
34	240385201		Container, Ice Bin				$ 108.70
45	241500305		Screw, Hex Washer Head, 8-18ab X 0.625   (Replaces: 241500304)				$ 3.37
51	241796405		Tube-water, Ice Mold Fill, Extension   (Replaces: 241523501)				$ 20.48
55	242252603		Valve-water, Solenoid Assy			Immediately	$ 81.27
60	218362501		Screw, Hex Washer Head, 8-18ab X 1.250, Spacer, (2)				$ 13.39
64	5304455846		Clamp, .31 Id, Steel, Water Tube				$ 11.81
NI	218990901		Clip-wire				$ 82.69
