01 - Cover Sheet

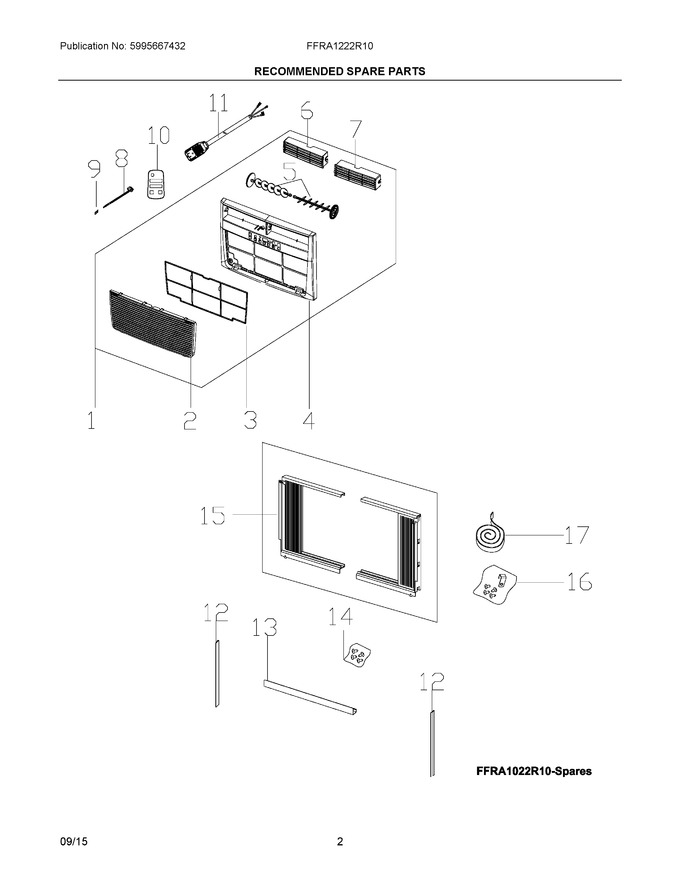

02 - Recommended Spare Parts
03 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304476792 | Front Assembly, Complete Panel |
|
- | |||||
| 2 | 5304476793 | Panel, Front Grille, Tilt-out |
|
$ 33.08 | |||||
| 3 | 5304535830 | Filter, Air, Plastic Frame (Replaces: 5304476794) |
|
$ 7.39 | |||||
| 4 | 5304476795 | Frame, Front Assembly |
|
- | |||||
| 5 | 5304476796 | Louver, Vertical |
|
- | |||||
| 6 | 5304476797 | Louver, Horizontal, Left |
|
- | |||||
| 7 | 5304476798 | Louver, Horizontal, Right |
|
- | |||||
| 8 | 5304476178 | Door, Vent Control, With Lever |
|
- | |||||
| 9 | 5304520877 | Sleeve, Vent Door Assy, Guide (Replaces: 5304476179) |
|
- | |||||
| 10 | 5304476802 | Remote Control, Transmitter |
|
$ 115.67 | |||||
| 11 | 5304536807 | Power Cord, Electric, Lcdi (Replaces: 5304500884) |
|
$ 140.95 | |||||
| 12 | 5304476197 | Retainer, Shutter, Cabinet Sides |
|
$ 9.87 | |||||
| 13 | 5304476199 | Rail, Shutter Track, Top Angle |
|
- | |||||
| 14 | 5304472191 | Screw Kit, Top Rail Mount |
|
$ 16.22 | |||||
| 15 | 5304476200 | Window Filler Kit, Slider Panels, Accordion |
|
$ 111.99 | |||||
| 16 | 5304491953 | Hardware, Mounting, Screws/locks |
|
$ 19.52 | |||||
| 17 | 5304472211 | Seal Kit, Foam, Sash Filler |
|
$ 36.12 |
