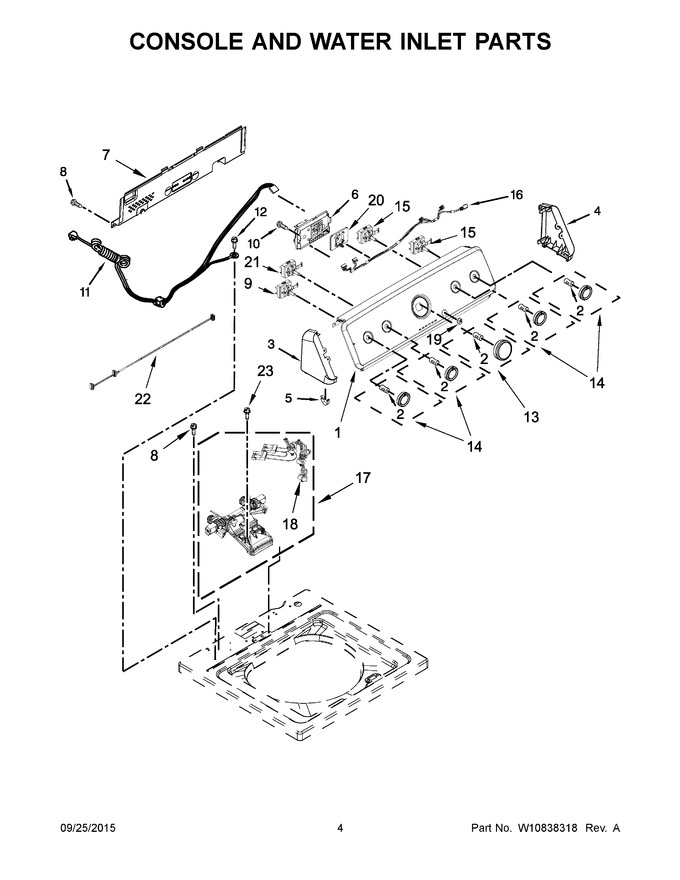

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11261189 | Panel, Console (Replaces: W10682729) |
|
$ 402.31 | |||||
| 2 | WP688805 | Clip, Spring (Replaces: 688805) |
|
Immediately | $ 8.20 | ||||
| 3 | WPW10193824 | End Cap (l.h.) (white) (Replaces: W10193824) |
|
$ 74.39 | |||||
| 4 | WPW10193821 | End Cap (r.h.) (white) (Replaces: W10193821) |
|
$ 74.72 | |||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 6 | W11116591 | Control Unit Assembly, Machine And Motor (Replaces: W10803587) |
|
$ 543.24 | |||||
| 7 | W10641362 | Panel, Console Rear Cover |
|
$ 180.84 | |||||
| 8 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 8.40 | ||||
| 9 | WPW10285517 | Switch, Rotary Encoder (3 Position) (Replaces: W10285517) |
|
$ 135.86 | |||||
| 10 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 11 | W10877409 | Cord, Power (Replaces: W10737739) |
|
$ 130.00 | |||||
| 12 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 8.20 | ||||
| 13 | W11837899 | Knob, Timer (grey) (Replaces: W10558463) |
|
Immediately | $ 18.83 | ||||
| 14 | W11837893 | Knob, Control (grey) (Replaces: W10562155) |
|
$ 18.83 | |||||
| 15 | WPW10285511 | Switch, Rotary Encoder (2 Position) (Replaces: W10285511) |
|
Immediately | $ 182.10 | ||||
| 16 | W10694685 | Harness, Upper |
|
$ 190.08 | |||||
| 17 | W11210459 | Inlet Assembly, Water (Replaces: W10701459) |
|
Immediately | $ 102.67 | ||||
| 18 | W10678671 | Harness, Valve |
|
$ 185.37 | |||||
| 19 | W11164083 | Push Button, Start (Replaces: W10584360) |
|
$ 74.87 | |||||
| 20 | W10593638 | Grommet, Push To Start |
|
$ 92.52 | |||||
| 21 | WPW10285518 | Switch, Rotary Encoder (5 Position) (Replaces: W10285518) |
|
Immediately | $ 117.42 | ||||
| 22 | W10694669 | Harness, Jumper |
|
$ 85.10 | |||||
| 23 | WPW10213953 | Screw (Replaces: W10213953) |
|
Immediately | $ 7.55 |
