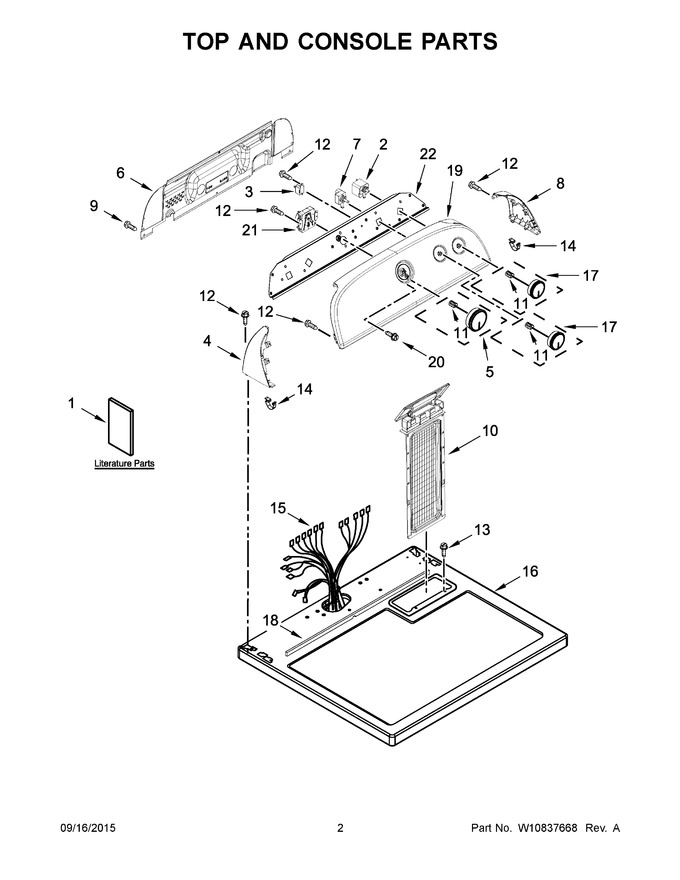

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - W10336852 Burner Assembly Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10658639		Installation Instructions		Appelez-nous	-
2	WPW10117655		Switch, Push To Start   (Replaces: W10117655)			Immediately	$ 85.60
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
4	WPW10520782		End Cap (left) (white)   (Replaces: W10520782)				$ 64.69
5	WPW10576635		Assembly, Timer Knob (white/metallic)   (Replaces: W10576635)				$ 52.72
6	W10556829		Panel, Rear (console)				$ 285.82
7	WP3399640		Switch, Temperature   (Replaces: 3399640)				$ 136.25
8	WPW10520780		End Cap (right) (white)   (Replaces: W10520780)				$ 64.34
9	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
10	W11778253		Lint Screen (white)   (Replaces: W10717210)			Immediately	$ 54.63
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
13	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
15	W10640701		Harness, Wiring		Appelez-nous	-
16	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 349.25
17	WPW10576637		Assembly, Control Knob (white/metallic)   (Replaces: W10576637)				$ 54.56
18	W10316616		Seal, Foam				$ 27.79
19	W10802041		Console (white)		Appelez-nous	-
20	WP3400818		Screw   (Replaces: 3400818)				$ 8.81
21	WPW10185981		Assembly, Timer (60 Hz.)   (Replaces: W10185981)				$ 346.09
22	W10556828		Bracket, Control		Appelez-nous	-
1A	W10809523		Use And Care Guide		Appelez-nous	-
1B	W10185986		Wiring Diagram		Appelez-nous	-
