SELECT A DIAGRAM

01 - Cover Sheet

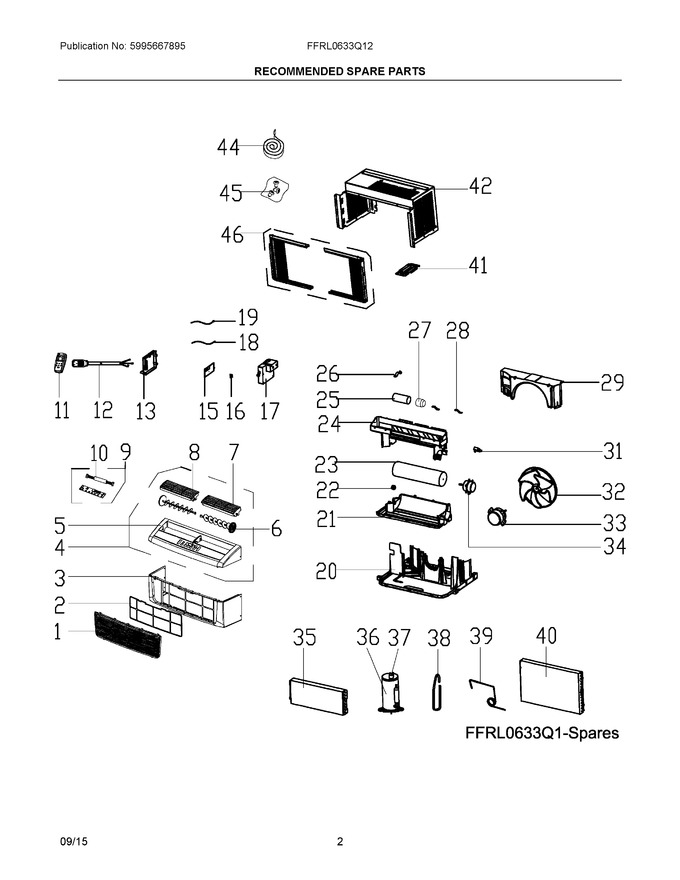

02 - Recommended Spare Parts


03 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304483013		Panel, Front Grille		Appelez-nous	-
2	5304483014		Filter, Air, Plastic Frame		Appelez-nous	-
3	5304483015		Frame, Front, Bottom		Appelez-nous	-
4	5304483016		Console Assembly, Top/front		Appelez-nous	-
5	5304483017		Frame, Console, Top/front		Appelez-nous	-
6	5304483018		Louver, Vertical, (4)		Appelez-nous	-
7	5304483019		Louver, Horizontal, Right		Appelez-nous	-
8	5304483020		Louver, Horizontal, Left		Appelez-nous	-
9	5304491875		Pc Board, Display/input		Appelez-nous	-
10	5304485996		Wire, Connector, Pc Boards		Appelez-nous	-
11	5304476802		Remote Control, Transmitter				$ 115.67
12	5304501630		Power Cord, Electric, Lcdi		Appelez-nous	-
13	5304501631		Cover, Control Box		Appelez-nous	-
15	5304501632		Pc Board, Control, Main		Appelez-nous	-
16	5304470989		Transformer				$ 94.98
17	5304501633		Control Box		Appelez-nous	-
18	5304504724		Sensor, Ambient Temp, Thermistor   (Replaces: 5304487548)				$ 19.85
19	5304521225		Sensor, Evap Temp, Thermistor   (Replaces: 5304471275)		Appelez-nous	-
20	5304476534		Base, Unit Chassis		Appelez-nous	-
21	5304476535		Scroll, Blower Housing, Bottom		Appelez-nous	-
22	5304476536		Holder, Bearing		Appelez-nous	-
23	5304476077		Blower Wheel, Centrifugal Fan		Appelez-nous	-
24	5304476537		Scroll, Blower Housing, Top		Appelez-nous	-
25	5304476049		Capacitor		Appelez-nous	-
26	5304476538		Strap, Capacitor Clamp		Appelez-nous	-
27	5304476539		Cap, Capacitor, Compressor		Appelez-nous	-
28	5304476540		Bracket, Motor Mount, Scroll Top		Appelez-nous	-
29	5304476541		Shroud, Condenser/fan		Appelez-nous	-
31	5304484402		Capacitor, Motor, Outdoor Blower		Appelez-nous	-
32	5304476078		Fan Blade, Axial		Appelez-nous	-
33	5304499963		Motor, Exhaust Fan, Outdoor		Appelez-nous	-
34	5304499962		Motor, Blower, Indoor		Appelez-nous	-
35	5304501634		Evaporator, +capillary Tube		Appelez-nous	-
36	5304493247		Compressor, With Overload		Appelez-nous	-
37	5304495337		Overload Protector, Compressor		Appelez-nous	-
38	5304495340		Tube, Discharge		Appelez-nous	-
39	5304501635		Tube, Capillary		Appelez-nous	-
40	5304501636		Condenser, +capillary Tube		Appelez-nous	-
41	5304476583		Platform, Unit Support, Bracket		Appelez-nous	-
42	5304486001		Cabinet, Wrapper/sleeve		Appelez-nous	-
44	5304472211		Seal Kit, Foam, Sash Filler				$ 36.12
45	5304476516		Hardware, Mounting, Screws/locks		Appelez-nous	-
46	5304476517		Window Filler Kit, Slider Panels, Accordion		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
