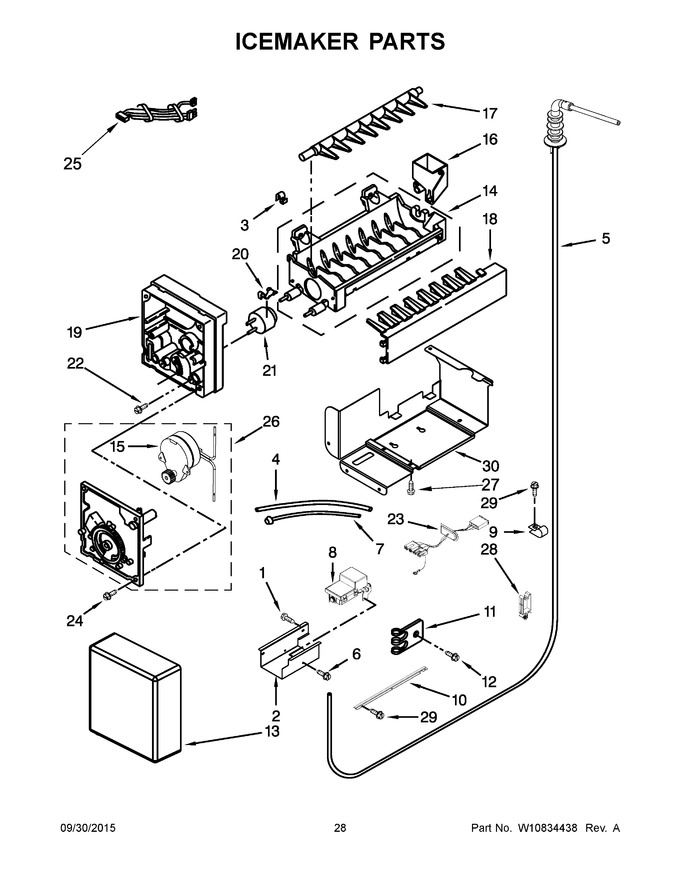

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 2 | 2320601 | Shield, Water Valve |
|
$ 120.16 | |||||
| 3 | WP628379 | Clip, Thermal Fuse (Replaces: 628379) |
|
$ 11.10 | |||||
| 4 | W11565275 | Tube, Filter Inlet (Replaces: W10296807) |
|
$ 67.89 | |||||
| 5 | W11212166 | Fitting, Water (Replaces: W10357286) |
|
Immediately | $ 40.93 | ||||
| 6 | 00487294 | Screw (Replaces: 487294) |
|
$ 175.09 | |||||
| 7 | W11533506 | Tube, Filter Outlet (Replaces: W10683737) |
|
Immediately | $ 33.15 | ||||
| 8 | WPW10159842 | Valve, Inlet (Replaces: W10159842) |
|
Immediately | $ 336.00 | ||||
| 9 | W10833902 | Clamp, Tube (Replaces: 2221070) |
|
$ 11.54 | |||||
| 10 | 2320559 | Support, Valve |
|
$ 88.79 | |||||
| 11 | WP488366 | Clip, Water Tube (Replaces: 2208136) |
|
$ 11.92 | |||||
| 12 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 8.05 | |||||
| 13 | W10801567 | Cover, Icemaker |
|
- | |||||
| 14 | WPW10190929 | Assembly, Mold And Heater (also Order 542638) (Replaces: 628228) |
|
$ 233.52 | |||||
| 15 | N/P | Motor, (not Serviceable Order Item 26) |
|
- | |||||
| 16 | W10788844 | Cup, Fill |
|
- | |||||
| 17 | WP627843 | Ejector (Replaces: 627843) |
|
$ 87.78 | |||||
| 18 | W10818367 | Stripper, Ice |
|
$ 88.94 | |||||
| 19 | W10790252 | Support, Housing |
|
- | |||||
| 20 | WP2315522 | Retainer, Thermostat (Replaces: 2315522) |
|
$ 11.60 | |||||
| 21 | WP627985 | Thermostat (Replaces: W10290336) |
|
$ 114.64 | |||||
| 22 | W10001280 | Screw |
|
- | |||||
| 23 | W10279391 | Assembly, Smart Valve Wire |
|
$ 134.19 | |||||
| 24 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 25 | W10508670 | Assembly, Icemaker Wire |
|
- | |||||
| 26 | 8201515 | Assembly, Module And Motor (Replaces: W10223929) |
|
Immediately | $ 159.78 | ||||
| 27 | WP489464 | Screw (Replaces: W10001250) |
|
Immediately | $ 8.38 | ||||
| 28 | W10129069 | Clip, Wire |
|
- | |||||
| 29 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 30 | W10788852 | Bracket, Icemaker Mounting |
|
$ 163.83 | |||||
| 100 | W11579388 | Complete Icemaker Assembly (Replaces: W10790819) |
|
Immediately | $ 291.00 | ||||
| NI | W10355010 | Cleaner, Kitchen & Appliance |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10355016 | Cleaner, Stainless Steel |
|
- | |||||
| NI | W10355049 | Wipes, Stainless Steel Cleaning |
|
$ 7.91 |
