01 - Cover Sheet

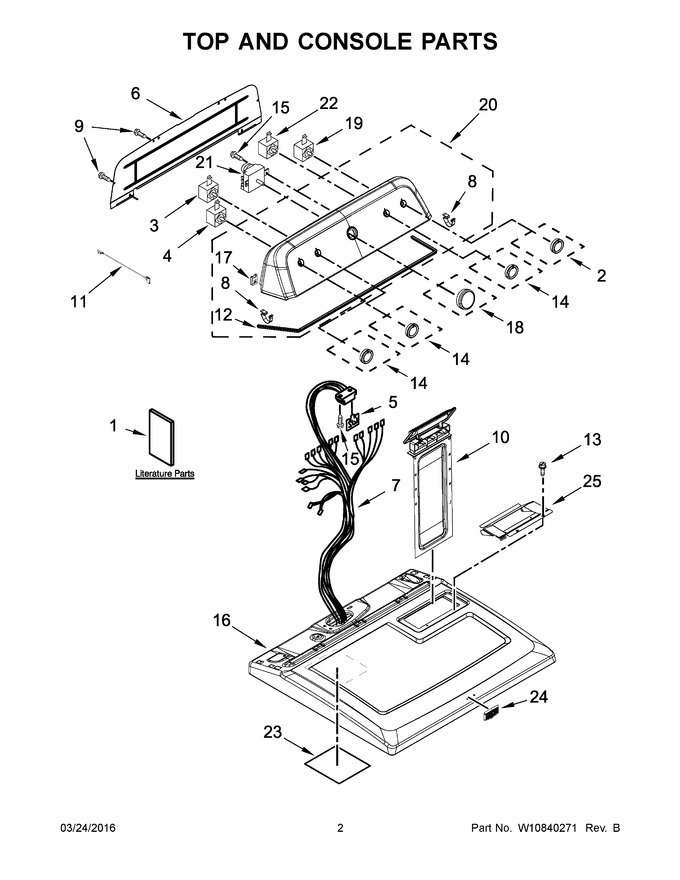

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10594781 | Use And Care Guide |
|
- | |||||
| 2 | WPW10565871 | Assembly, Push-to-start Knob (grey) (Replaces: W10565871) |
|
Immediately | $ 55.09 | ||||
| 3 | WPW10627711 | Switch, Rotary (signal) (Replaces: W10627711) |
|
$ 97.03 | |||||
| 4 | W11501315 | Switch, Rotary (temperature) (Replaces: W10562712) |
|
- | |||||
| 5 | WPW10476828 | Control, Electronic (Replaces: W10476828) |
|
Immediately | $ 329.93 | ||||
| 6 | WPW10416486 | Panel, Rear Console (Replaces: W10416486) |
|
$ 132.39 | |||||
| 7 | W10640711 | Wiring Harness, Main |
|
- | |||||
| 8 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 9 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 10 | W11778254 | Assembly, Lint Screen (Replaces: W10508973) |
|
Immediately | $ 54.63 | ||||
| 11 | W10853337 | Jumper, Ground (Replaces: W10837732) |
|
- | |||||
| 12 | W10588162 | Seal, Console |
|
- | |||||
| 13 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | W11837893 | Assembly, Control Knob (grey) (Replaces: W10562155) |
|
$ 18.83 | |||||
| 15 | WP90767 | Screw (Replaces: 3348629) |
|
Immediately | $ 8.25 | ||||
| 16 | W11170623 | Top (white) (Replaces: W10695517) |
|
$ 285.08 | |||||
| 17 | W11213336 | Nut, "u (Replaces: W10298336) |
|
$ 8.13 | |||||
| 18 | W11837899 | Assembly, Timer Knob (grey) (Replaces: W10558463) |
|
Immediately | $ 18.83 | ||||
| 19 | WPW10563095 | Switch, Rotary (push To Start) (Replaces: W10563095) |
|
Immediately | $ 89.50 | ||||
| 20 | W10557259 | Assembly, Console (white) |
|
$ 238.84 | |||||
| 21 | WPW10642928 | Assembly, Timer (Replaces: W10642928) |
|
$ 215.79 | |||||
| 22 | W10563094 | Switch, Rotary (wrinkle Control) |
|
$ 36.35 | |||||
| 23 | W11668653 | Panel, Dampening (Replaces: W10836097) |
|
$ 30.95 | |||||
| 24 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 42.36 | ||||
| 25 | W10662472 | Collar, Lint Chute |
|
$ 77.87 | |||||
| 1A | W10185993 | Wiring Diagram |
|
- | |||||
| 1B | W10562358 | Installation Instructions |
|
- |
