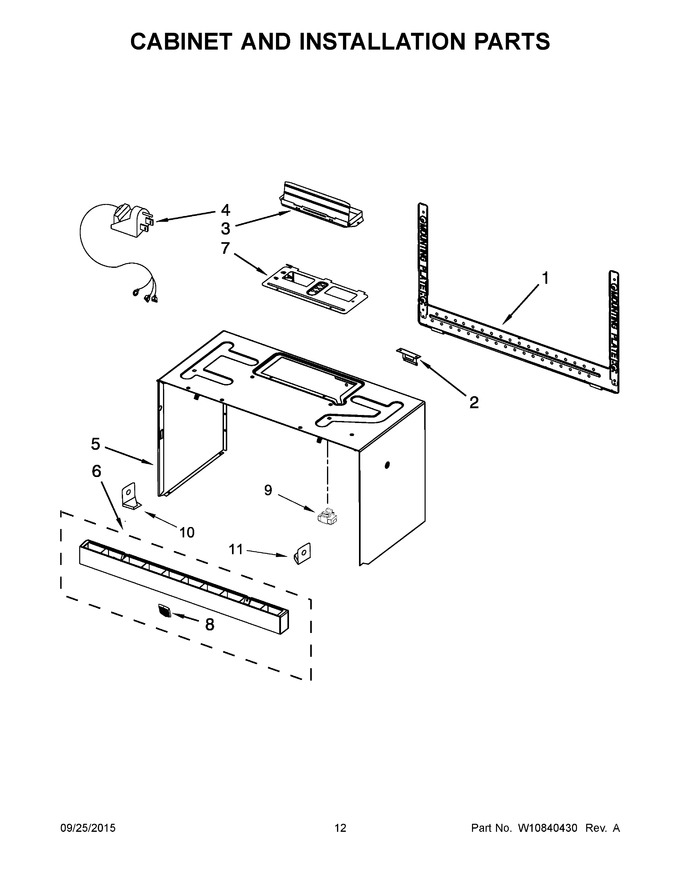

07 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11025649		Plate, Mounting   (Replaces: W10440498)			Immediately	$ 24.69
2	8206385		Support, Wire Clip				$ 37.20
3	W10843943		Damper   (Replaces: W10748710)			Immediately	$ 73.04
4	W10708076		Cord, Power   (Replaces: W10654511)				$ 21.56
5	WPW10462001		Case, Outer (black)   (Replaces: W10462001)				$ 297.51
6	W10259232		Grille, Vent (stainless)			Immediately	$ 169.06
7	W10210832		Cover, Hood Fan Motor				$ 6.68
8	W10286845		Badge				$ 35.23
9	W10596040		Assembly, Mounting Nut			Immediately	$ 8.30
10	W11026306		Vent Grid Holder, Left Side (stainless)   (Replaces: W10703284)			Immediately	$ 7.55
11	W10703282		Vent Grid Holder, Right Side (stainless)				$ 11.00
NI	W10470168		Miscellaneous Parts, Harness, Ntc Sensor Flat Wire				$ 42.74
NI	W10163438		Miscellaneous Parts, Ground Wire Assembly		Appelez-nous	-
NI	W10821385		Miscellaneous Parts, Installation, Hardware   (Replaces: 8206614)			Immediately	$ 103.72
NI	W10190018		Miscellaneous Parts, Template, Upper			Immediately	$ 7.55
NI	WP8169704		Miscellaneous Parts, 1/4-20x3" Panhead Screw   (Replaces: 8169704)			Immediately	$ 13.35
NI	W10779169		Miscellaneous Parts, Harness, Main		Appelez-nous	-
NI	W10346137		Miscellaneous Parts, Harness, Wire Titan		Appelez-nous	-
NI	W10539842		Miscellaneous Parts, Harness, Magnetron To High Voltage Transformer   (Replaces: W10163436)				$ 16.70
NI	W10539841		Miscellaneous Parts, Headlamp/tt Wire Assembly   (Replaces: W10269479)				$ 20.98
