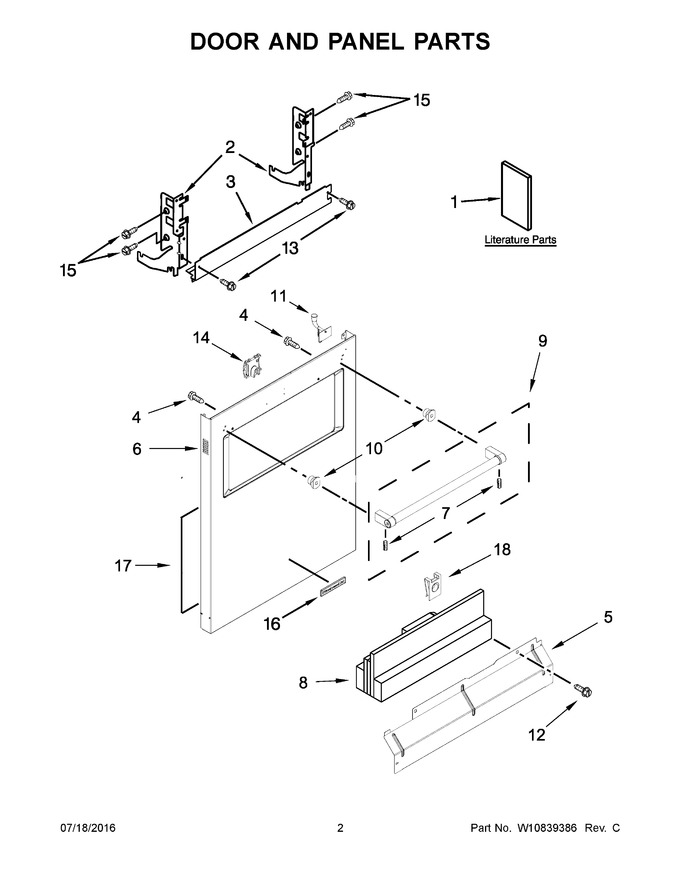

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10741197 | Installation Instructions |
|
- | |||||
| 2 | W11806565 | Arm, Hinge (left Hand) (Replaces: 8534854) |
|
Immediately | $ 142.39 | ||||
| 3 | W10850371 | Barrier, Vapor (Replaces: W10844384) |
|
Immediately | $ 32.88 | ||||
| 4 | WPW10213953 | Screw (Replaces: W10711884) |
|
Immediately | $ 7.55 | ||||
| 5 | W11763736 | Access Panel (black) (Replaces: W10852733) |
|
Immediately | $ 42.25 | ||||
| 6 | W10796431 | Panel, Front (includes 4, 10, 11 & 16) (stainless) |
|
$ 431.56 | |||||
| 7 | W10917698 | Set Screw (Replaces: W10687133) |
|
Immediately | $ 7.55 | ||||
| 8 | W11223838 | Insulation, Four Layer (Replaces: W10735304) |
|
Immediately | $ 43.91 | ||||
| 9 | W10708004 | Handle Assembly (stainless) (Replaces: W10786161) |
|
Immediately | $ 141.35 | ||||
| 10 | W11157086 | Stud, Mounting (Replaces: W10195726) |
|
Immediately | $ 8.87 | ||||
| 11 | W10831645 | Light Pipe (Replaces: W10794483) |
|
$ 80.79 | |||||
| 12 | WP302868 | Screw (black) (Replaces: 302868) |
|
Immediately | $ 8.18 | ||||
| 13 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 14 | W10692757 | Barrel Nut, Front Panel |
|
$ 16.01 | |||||
| 15 | WP3400071 | Screw (Replaces: 3400071) |
|
$ 8.26 | |||||
| 16 | W10909682 | Nameplate (grey) (Replaces: W10518672) |
|
Immediately | $ 76.20 | ||||
| 17 | W10721318 | Insulation, Door |
|
- | |||||
| 18 | W10910629 | U-nut (Replaces: W10853886) |
|
$ 8.64 | |||||
| 1A | W10746817 | Energy Guide |
|
- | |||||
| 1B | W10762967 | Use & Care Guide |
|
- | |||||
| 1C | W10758801 | Tech Sheet, English |
|
- | |||||
| 1D | W10758802 | Tech Sheet, French |
|
- | |||||
| 2A | W11806608 | Arm, Hinge (right Hand) (Replaces: 8534853) |
|
Immediately | $ 142.24 | ||||
| 6A | W10903073 | Panel, Front (includes 4, 10, 11 & 16) (black Stainless) (Replaces: W10864944) |
|
$ 575.23 |
