01 - Cover Sheet

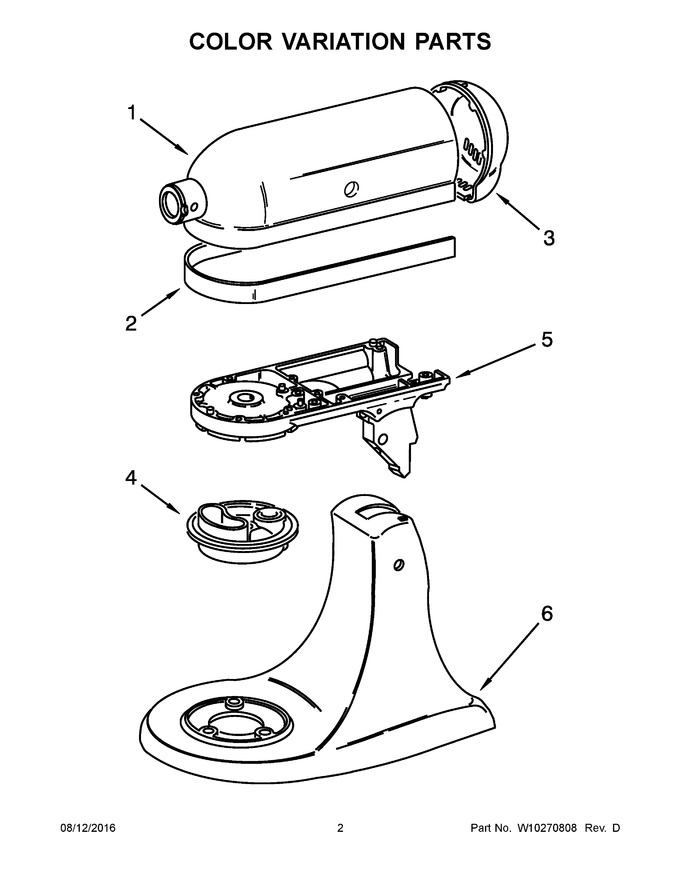

02 - Color Variation Parts
03 - Base And Pedestal Unit Parts
04 - Case, Gearing And Planetary Unit Parts
05 - Motor And Control Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10787892 | Motor Housing (blue Steel) |
|
- | |||||
| 2 | W10171580 | Trim Band (dark Platinum) |
|
- | |||||
| 3 | W10787886 | End Cover (blue Steel) |
|
- | |||||
| 4 | W10787888 | Planetary (blue Steel) |
|
- | |||||
| 5 | W10787890 | Lower Gearcase (blue Steel) |
|
- | |||||
| 6 | W10787887 | Pedestal (blue Steel) |
|
- | |||||
| 1A | W10171586 | Motor Housing (cocoa Silver) |
|
- | |||||
| 1B | W10572197 | Motor Housing (grenadine) |
|
- | |||||
| 1C | W10871876 | Motor Housing (pistachio Matte) |
|
- | |||||
| 3A | W10171581 | End Cover (cocoa Silver) |
|
- | |||||
| 3B | W10572184 | End Cover (grenadine) |
|
- | |||||
| 3C | W10871879 | End Cover (pistachio Matte) |
|
$ 43.29 | |||||
| 4A | W10342514 | Planetary (cocoa Silver) (Replaces: W10171583) |
|
$ 45.31 | |||||
| 4B | W10572189 | Planetary (grenadine) |
|
- | |||||
| 4C | W10871877 | Planetary (pistachio Matte) |
|
- | |||||
| 5A | W10171589 | Lower Gearcase (cocoa Silver) |
|
- | |||||
| 5B | W10572193 | Lower Gearcase (grenadine) |
|
- | |||||
| 5C | W10871871 | Lower Gearcase (pistachio Matte) |
|
- | |||||
| 6A | W10171592 | Pedestal (cocoa Silver) |
|
- | |||||
| 6B | W10572187 | Pedestal (grenadine) |
|
$ 100.03 | |||||
| 6C | W10871868 | Pedestal (pistachio Matte) |
|
- |
