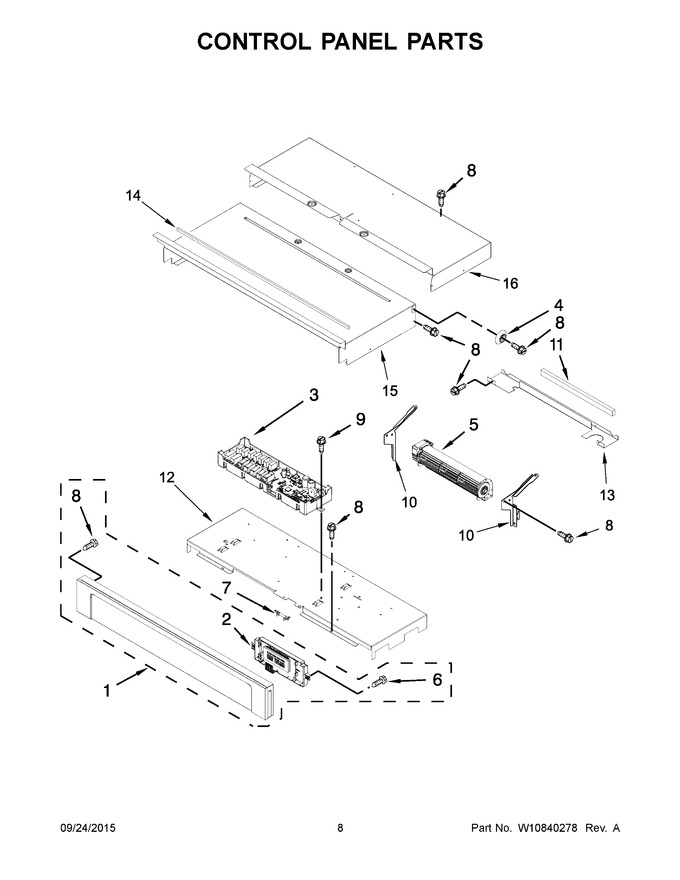

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10864143		Assembly, Control Panel (includes Overlay) (black)   (Replaces: W10812327)				$ 554.61
2	W10803991		Assembly, Display   (Replaces: W10752315)			Immediately	$ 420.04
3	W10839510		Control, Main   (Replaces: W10758877)			Immediately	$ 461.14
4	W10618105		Spacer, Lateral		Appelez-nous	-
5	W10641253		Blower				$ 127.63
6	WP12990527		Screw   (Replaces: 7101P403-60)			Immediately	$ 8.76
7	WPW10545255		Fuse, Thermal   (Replaces: W10545255)			Immediately	$ 27.91
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
9	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
12	W10283005		Tray, Electronic		Appelez-nous	-
13	W10509164		Chassis, Divider Back		Appelez-nous	-
14	WPW10657548		Gasket, Rubber   (Replaces: W10657548)				$ 89.66
15	W10318193		Chassis, Cover Top Front 27				$ 136.08
16	W10318195		Chassis, Cover Top Back 27				$ 111.04
10A	W10655462		Bracket, Blower (right)		Appelez-nous	-
1A	W10864145		Assembly, Control Panel (includes Overlay) (white)   (Replaces: W10812328)				$ 505.93
1B	W10864146		Assembly, Control Panel (includes Overlay) (stainless)   (Replaces: W10812329)				$ 712.16
