SELECT A DIAGRAM

01 - Cover Sheet


02 - Door

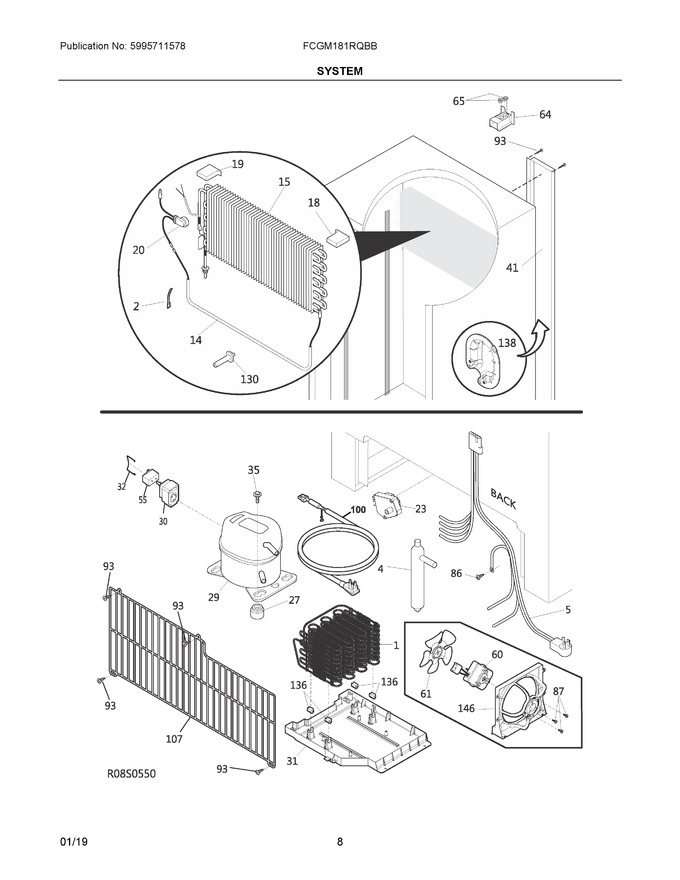

03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300083897		Condenser				$ 598.19
2	5308000110		Strap-evap/heater, Aluminum, (2)			Immediately	$ 66.47
4	5303305677		Filter - Dryer   (Replaces: 216938601)			Immediately	$ 35.19
5	5304501376		Harness, Wiring, Main				$ 144.11
14	216730700		Heater-defrost			Immediately	$ 129.38
15	297311300		Evaporator				$ 224.14
18	297078701		Insulator-evap, Styrofoam, Rh				$ 4.02
19	297078801		Insulator-evap, Styrofoam, Lh				$ 4.02
20	216731001		Thermostat, Defrost			Immediately	$ 93.84
23	5304518034		Timer, Defrost, 115v, Tab   (Replaces: 297318010)			Immediately	$ 63.94
27	216498900		Grommet, Compressor   (Replaces: 297293302)				$ 14.46
29	240550948		Compressor   (Replaces: 297414054)			Immediately	$ 325.00
30	297259515		Controller, Compressor   (Replaces: 297259502)				$ 82.69
31	297165800		Pan-drain				$ 99.06
32	216954300		Clip, Controller				$ 18.90
35	297368500		Bolt, Compressor		Appelez-nous	-
41	297070700		Cover-wiring, Rear		Appelez-nous	-
55	297286803		Capacitor-run			Immediately	$ 31.97
60	297279500		Motor-condenser Fan			Immediately	$ 157.40
61	241639502		Blade-condenser Fan   (Replaces: 241639501)			Immediately	$ 24.43
64	216578800		Vent				$ 47.83
65	5309950074		Valve, Breather				$ 12.48
86	216036601		Screw, Rwhd, 8-32a X 0.500, Gx-ca				$ 15.17
93	216858001		Screw, Ph Truss Head, 8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 12.05
100	297366805		Cord, Power   (Replaces: 297366800)				$ 76.31
107	297225501		Cover, Access				$ 74.81
116	216383800		Gasket-evap Cover, Front		Appelez-nous	-
130	297244700		Support, Evaporator Mtg				$ 4.73
136	240405201		Grommet, Rubber, Black, Cond Tube/wire				$ 22.05
138	297070800		Cover-drain Hose				$ 8.24
146	297164000		Shroud-fan Orfice				$ 76.97
NI	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.37
NI	5304485759		Tape, Foil   (Replaces: 216737600)				$ 0.79
NI	216858001		Screw, 8-18x.50 Ab, #10			Immediately	$ 12.05
NI	240555002		Screw-#8-32 X 3/8			Immediately	$ 14.96
NI	297082300		Harness-jumper		Appelez-nous	-
NI	297111000		Standoff		Appelez-nous	-
NI	5303311565		Clip-cable				$ 2.10
NI	216225700		Grommet-spacer				$ 7.77
NI	297315800		Clip, Wire				$ 11.25
NIA	216337701		Screw, Hwh, 10-24 X 0.500, Swage				$ 16.01
NIA	297318700		Vent Assy, W/breather Valv				$ 20.48

    View Diagram in Separate Window       Print Part List
