View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

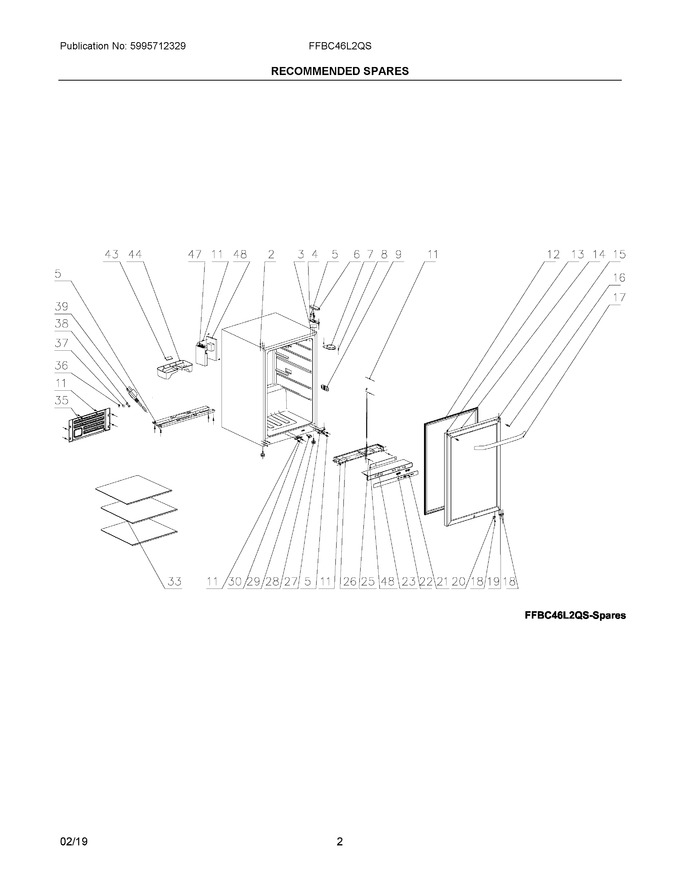

02 - Recommended Spares
03 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304479779 | Plug, Hinge Hole, Cabinet |
|
$ 8.45 | |||||
| 3 | 5304479780 | Washer, Top Hinge |
|
- | |||||
| 4 | 5304479781 | Hinge, Top |
|
$ 62.11 | |||||
| 5 | 5304480019 | Screw, Hinge, (6) |
|
$ 7.83 | |||||
| 6 | 5304479782 | Cover, Top Hinge |
|
$ 21.16 | |||||
| 7 | 5304479803 | Lamp Assembly, Led |
|
$ 94.98 | |||||
| 8 | 5304479804 | Screw, Tapping, Stainless Steel |
|
- | |||||
| 9 | 5304479805 | Cover, Temp Sensor |
|
Immediately | $ 49.15 | ||||
| 11 | 5304479807 | Screw, Tapping, Stainless Steel |
|
- | |||||
| 12 | 5304479808 | Gasket, Door |
|
$ 130.10 | |||||
| 13 | 5304479809 | Plug, Door Hole |
|
$ 19.13 | |||||
| 14 | 5304479830 | Door Assembly, Glass/steel |
|
$ 654.21 | |||||
| 15 | 5304513161 | Bushing, Hinge (Replaces: 5304479789) |
|
$ 2.83 | |||||
| 16 | 5304513163 | Screw, Shoulder, Door Handle (Replaces: 5304479811) |
|
Immediately | $ 34.89 | ||||
| 17 | 5304479812 | Handle Assembly, Door |
|
$ 188.10 | |||||
| 18 | 5304479813 | Screw, Tapping, Door |
|
- | |||||
| 19 | 5304479790 | Stop, Door |
|
$ 10.63 | |||||
| 20 | 5304531677 | Bracket, Door Switch (Replaces: 5304479791) |
|
$ 4.58 | |||||
| 21 | 5304479831 | Control Panel, Console |
|
$ 141.80 | |||||
| 22 | 5304479936 | Push Button |
|
$ 53.15 | |||||
| 23 | 5304479815 | Overlay, Control Board, Cover |
|
$ 54.34 | |||||
| 25 | 5304479817 | Screw, Tapping, (2) |
|
- | |||||
| 26 | 5304479818 | Base, Display Board |
|
$ 58.59 | |||||
| 27 | 5304479792 | Hinge, Bottom |
|
$ 100.17 | |||||
| 28 | 5304479819 | Foot, Leveling Screw, Cabinet |
|
$ 26.23 | |||||
| 29 | 5304479794 | Switch, Lamp/light |
|
Immediately | $ 53.87 | ||||
| 30 | 5304479795 | Latch, Door |
|
$ 28.35 | |||||
| 33 | 5304479833 | Shelf, Glass |
|
$ 183.56 | |||||
| 35 | 5304479822 | Cover, Access, Rear |
|
- | |||||
| 36 | 5304480022 | Screw, Tapping |
|
- | |||||
| 37 | 5304479823 | Clamp, Strain Relief, Power Cord |
|
- | |||||
| 38 | 5304479838 | Sleeve, Power Cord |
|
- | |||||
| 39 | 5304479824 | Power Cord, Electric |
|
$ 104.90 | |||||
| 43 | 5304479828 | Pad, Thermal Mastic |
|
- | |||||
| 44 | 5304479799 | Tray, Drip Pan |
|
$ 44.89 | |||||
| 47 | 5304479835 | Cover, Control Box |
|
- | |||||
| 48 | 5304518765 | Pc Board Kit, Main Board, W/display Board |
|
$ 249.95 | |||||
| NIA | 5304479971 | Thermistor, Temp Sensor |
|
$ 85.37 |
