SELECT A DIAGRAM

01 - Cover Sheet

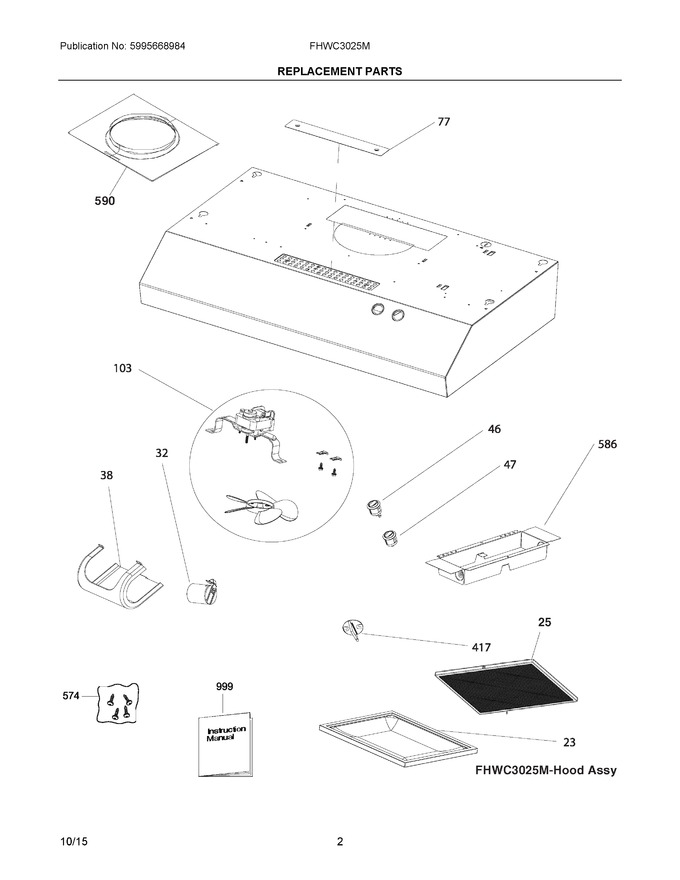

02 - Replacement Parts


03 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
23	5304523620		Filter, Grease, Aluminum   (Replaces: 5304490019)				$ 75.19
25	5304486302		Filter, Air, Charcoal, Recirculation				$ 85.05
32	5304503756		Lampholder, Light Socket		Appelez-nous	-
38	5304490021		Cover, Lamp, Plastic, Lens				$ 103.89
46	5304490022		Switch, Light/lamp, Black				$ 56.88
47	5304490023		Switch, Motor, Black				$ 53.49
77	5304490024		Cover, Vent, Black, Rectangular		Appelez-nous	-
103	5304490025		Motor Assembly, With Fan Blade				$ 300.74
417	5304490026		Latch, Retainer, Grease Filter		Appelez-nous	-
574	5304502766		Screws, Mounting, 0.45 X 1.3 Cm, (4)   (Replaces: 5304490027)				$ 18.43
586	5304490028		Damper, Vent, 3-1/4" X 10				$ 151.68
590	5304487139		Vent Transition Kit, Round, 7				$ 87.89
999	5304490029		Manual, Use & Care, Installation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
