View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

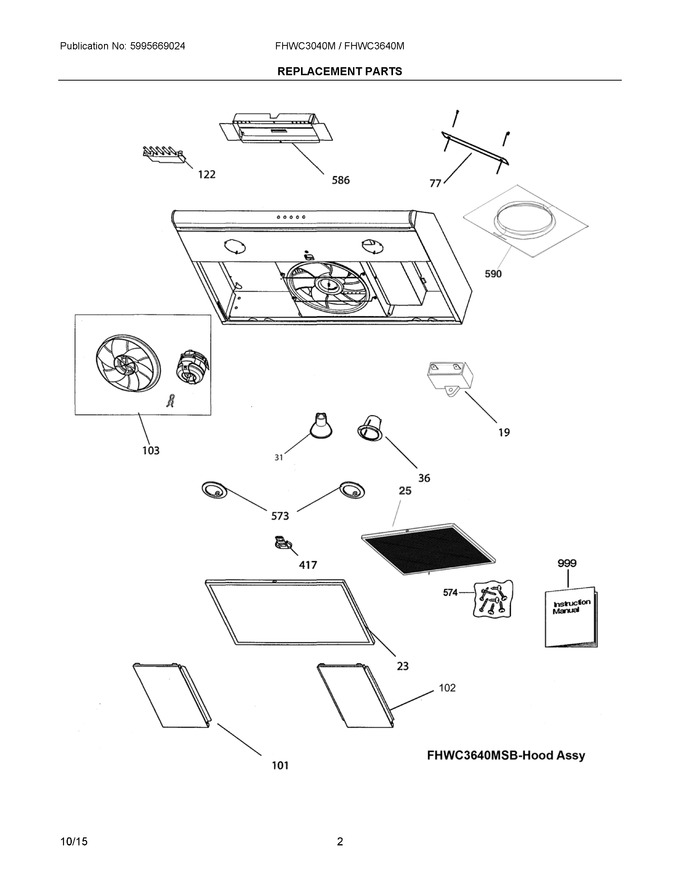

02 - Replacement Parts
03 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 19 | 5304503757 | Capacitor, 8 Microfarad |
|
- | |||||
| 23 | 5304491588 | Filter, Grease, Aluminum |
|
Immediately | $ 146.71 | ||||
| 25 | 5304486303 | Filter, Air, Charcoal, Recirculation |
|
$ 70.88 | |||||
| 31 | 5304482257 | Lamp, Halogen, 50 W, 120 V (Replaces: 5304466038) |
|
$ 103.67 | |||||
| 36 | 5304487848 | Lamp Holder, Socket, W/housing |
|
$ 205.52 | |||||
| 77 | 5304490030 | Cover, Vent, Stainless, Rectangular |
|
$ 95.24 | |||||
| 101 | 5304491594 | Panel, Lateral, Left Side |
|
- | |||||
| 102 | 5304491595 | Panel, Lateral, Right Side |
|
- | |||||
| 103 | 5304491589 | Motor Assembly, With Fan Blade |
|
$ 384.60 | |||||
| 122 | 5304491590 | Control, Push Button |
|
$ 738.87 | |||||
| 417 | 5304491591 | Latch, Grease Filter |
|
$ 19.80 | |||||
| 573 | 5304487849 | Bezel, Lamp Assembly |
|
- | |||||
| 574 | 5304491592 | Mounting Kit, Hardware, W/screws |
|
$ 46.78 | |||||
| 586 | 5304490028 | Damper, Vent, 3-1/4" X 10 |
|
$ 151.68 | |||||
| 590 | 5304487139 | Vent Transition Kit, Round, 7 |
|
$ 87.89 | |||||
| 999 | 5304491593 | Manual, Use & Care, Installation |
|
- |
