01 - Cover Sheet
02 - Top And Console Parts

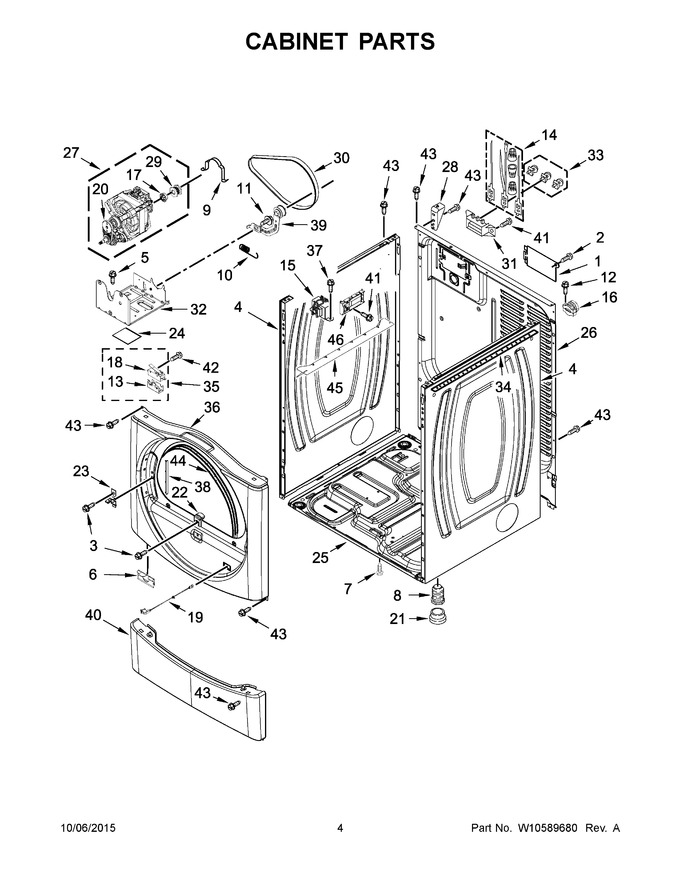

03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10601020 | Cover, Terminal Block |
|
- | |||||
| 2 | WP90767 | Screw (Replaces: 3390814) |
|
Immediately | $ 8.25 | ||||
| 3 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 4 | W10542714 | Panel, Side (white) |
|
$ 350.58 | |||||
| 5 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 6 | W11295573 | Clip, Toe Panel (Replaces: 8519459) |
|
$ 22.17 | |||||
| 7 | WP489464 | Screw (Replaces: W10142290) |
|
Immediately | $ 8.38 | ||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 9 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 8.22 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 25.80 | ||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 8.62 | |||||
| 12 | WP33001882 | Screw (Replaces: 337686) |
|
$ 83.71 | |||||
| 13 | 8564011 | Bracket, Switch |
|
$ 19.08 | |||||
| 14 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 106.04 | ||||
| 15 | W10751202 | Transformer, 240-22.5 Vac (Replaces: W10633921) |
|
$ 225.34 | |||||
| 16 | W11704629 | Relief, Strain (power Cord) (Replaces: 8316644) |
|
- | |||||
| 17 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 139.08 | ||||
| 18 | W10410873 | Assembly, Switch Actuator |
|
- | |||||
| 19 | W11192658 | Assembly, Door Switch (Replaces: W10459028) |
|
- | |||||
| 20 | WP3405160 | Belt, Drive (blower Wheel) (Replaces: 3405160) |
|
Immediately | $ 36.99 | ||||
| 21 | WP3391943 | Boot, Foot (Replaces: 3391943) |
|
$ 8.21 | |||||
| 22 | 8580015 | Ramp, Door |
|
$ 88.24 | |||||
| 23 | WP8565122 | Strike, Door (Replaces: 8565122) |
|
Immediately | $ 8.65 | ||||
| 24 | W11113654 | Motor, Sound Pad (Replaces: W10212660) |
|
$ 23.29 | |||||
| 25 | W11215531 | Base, Cabinet (Replaces: W10225178) |
|
$ 365.36 | |||||
| 26 | W10225180 | Panel, Rear |
|
- | |||||
| 27 | W11215537 | Assembly, Motor 50 Hz. (Replaces: W10747112) |
|
$ 560.48 | |||||
| 28 | W10137398 | Stop, Top Panel |
|
- | |||||
| 29 | W10167237 | Pulley |
|
- | |||||
| 30 | WPW10131172 | Belt, Drive (Replaces: W10131172) |
|
Immediately | $ 44.66 | ||||
| 31 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 24.17 | |||||
| 32 | W11676491 | Bracket, Motor (Replaces: W10135695) |
|
$ 134.62 | |||||
| 33 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 55.66 | ||||
| 34 | WP8318396A | Seal, Foam (Replaces: 8318396) |
|
$ 39.71 | |||||
| 35 | W11236387 | Assembly, Switch (Replaces: W10259136) |
|
- | |||||
| 36 | W11192661 | Panel, Front (white) (Replaces: W10551281) |
|
- | |||||
| 37 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 38 | 8565043 | Plug, Front Panel |
|
$ 97.29 | |||||
| 39 | WPW10344192 | Assembly, Idler (Replaces: W10344192) |
|
Immediately | $ 94.57 | ||||
| 40 | WP8540621 | Panel, Toe (white) (Replaces: 8540621) |
|
$ 189.38 | |||||
| 41 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 42 | 3400934 | Assembly, Screw And Insulator |
|
- | |||||
| 43 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 44 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 45 | WP8563727 | Bracket, Control (Replaces: 8563727) |
|
$ 179.69 | |||||
| 46 | W11315680 | Board, Control (Replaces: W10166377) |
|
$ 597.59 | |||||
| NI | 49621 | Foot, Optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 | ||||
| NI | W10470674 | Kit, 4-way Venting |
|
Immediately | $ 85.28 |
