01 - Cover Sheet

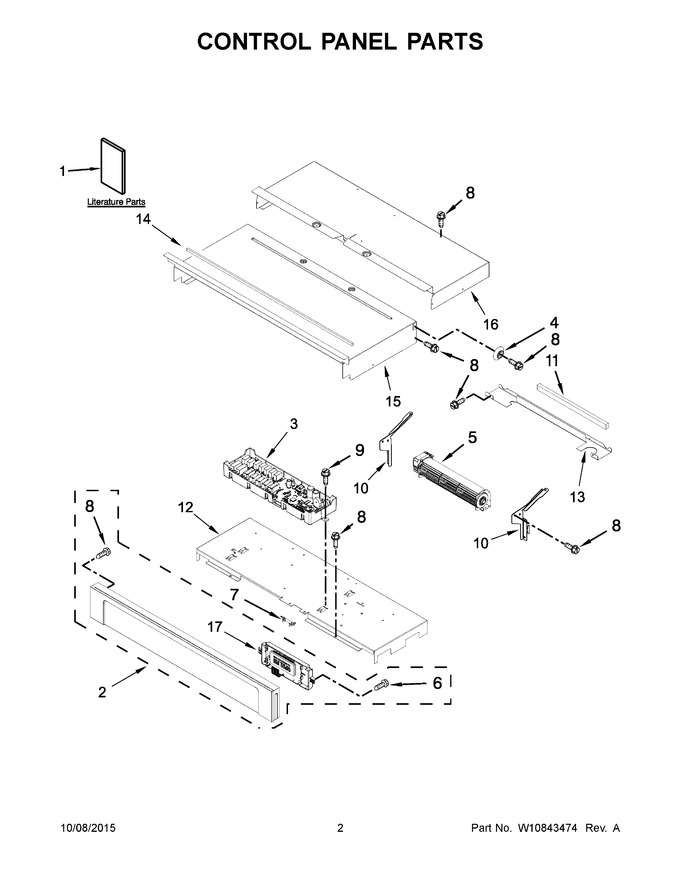

02 - Control Panel Parts
03 - Oven Parts
04 - Oven Door Parts
05 - Internal Oven Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10674133 | Instructions, Installation |
|
- | |||||
| 2 | W10864134 | Assembly, Control Panel (includes Overlay) (stainless) (Replaces: W10812321) |
|
$ 929.78 | |||||
| 3 | W10841692 | Board, Main (Replaces: W10759199) |
|
Immediately | $ 461.14 | ||||
| 4 | W10618105 | Spacer, Lateral |
|
- | |||||
| 5 | W10641253 | Blower |
|
$ 127.63 | |||||
| 6 | WP12990527 | Screw (Replaces: 7101P403-60) |
|
Immediately | $ 8.76 | ||||
| 7 | WPW10545255 | Fuse, Thermal (Replaces: W10545255) |
|
Immediately | $ 27.91 | ||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 9 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 12 | W10347650 | Tray, Electronic |
|
$ 126.08 | |||||
| 13 | W10509164 | Chassis, Divider Back |
|
- | |||||
| 14 | WPW10657548 | Gasket, Rubber (Replaces: W10657548) |
|
$ 89.66 | |||||
| 15 | W10318192 | Chassis, Cover Top Front 30 |
|
$ 138.81 | |||||
| 16 | W10904156 | Chassis, Cover Top Back 30 (Replaces: W10318194) |
|
- | |||||
| 17 | W10803991 | Assembly, Display (Replaces: W10752315) |
|
Immediately | $ 420.04 | ||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 1A | W10351318 | Instructions, Undercounter Install |
|
- | |||||
| 1B | W10795607 | Guide, Use & Care |
|
- | |||||
| 1C | W10796080 | Sheet, Tech |
|
- | |||||
| NI | W10655464 | Bracket, Harness |
|
$ 40.71 | |||||
| NI | W10487999 | Clip, Harness |
|
$ 21.12 | |||||
| NI | 4452400 | Strap, Lead Ground |
|
$ 45.42 | |||||
| NI | WP4450952 | Conduit, Single (Replaces: 4450952) |
|
$ 240.98 | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 21.41 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10775305 | Harness, Main |
|
$ 409.04 | |||||
| NI | W10573327 | Harness, Door Latch |
|
$ 67.67 | |||||
| NI | W11157775 | Harness, Eol (mrc) (Replaces: W10409840) |
|
$ 231.69 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 13.47 |
