01 - Cover Sheet
02 - Top And Console Parts

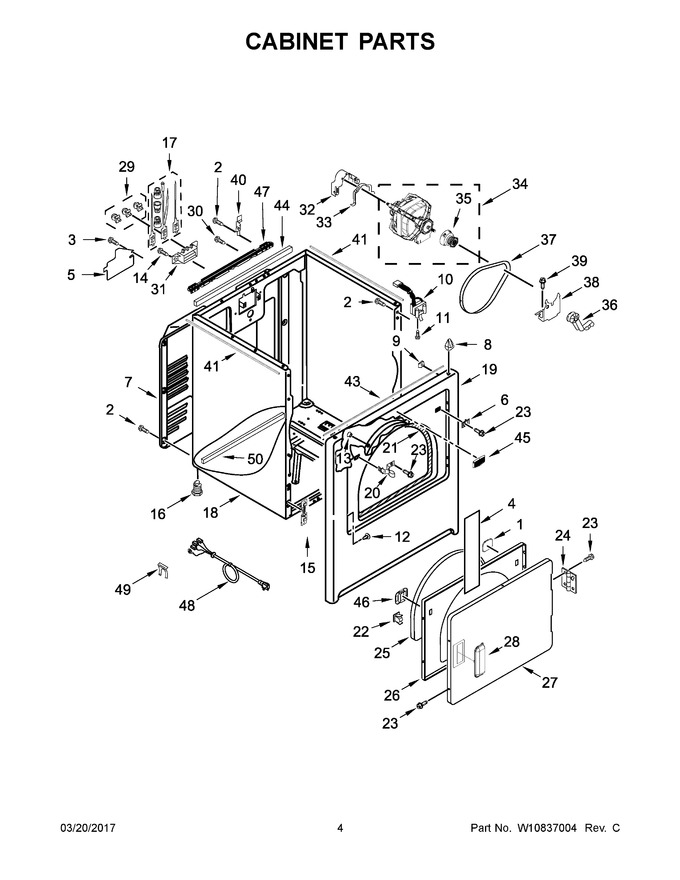

03 - Cabinet Parts
04 - Bulkhead Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11173656 | Cover, Door Catch (Replaces: W10529198) |
|
$ 8.20 | |||||
| 2 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 8.25 | |||||
| 3 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 4 | W10636378 | Pad, Door Handle |
|
$ 69.72 | |||||
| 5 | W11298298 | Cover, Terminal Block (Replaces: W10571619) |
|
$ 93.91 | |||||
| 6 | W11684591 | Plug, Strike (Replaces: W10567345) |
|
Immediately | $ 8.13 | ||||
| 7 | W11626083 | Panel, Rear (Replaces: W10634729) |
|
$ 136.22 | |||||
| 8 | WP8066092 | Lock, Front Top (Replaces: 8066092) |
|
Immediately | $ 20.48 | ||||
| 9 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 11.96 | ||||
| 10 | WP3406107 | Switch, Door (Replaces: W10569603) |
|
Immediately | $ 31.20 | ||||
| 11 | WP3395530 | Screw (Replaces: 697773) |
|
$ 8.57 | |||||
| 12 | WP3404413 | Plug, Hole (white) (Replaces: 3404413) |
|
Immediately | $ 8.35 | ||||
| 13 | 279220 | Clip, Felt Pad (Replaces: 685203) |
|
$ 23.55 | |||||
| 14 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 15 | W10854425 | Clip, Front Panel (Replaces: W10775448) |
|
Immediately | $ 16.34 | ||||
| 16 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 17 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 106.04 | ||||
| 18 | 8533643 | Cabinet (white) (Replaces: 8530603) |
|
$ 419.22 | |||||
| 19 | W10806345 | Panel, Front (white) (Replaces: W10664697) |
|
$ 244.38 | |||||
| 20 | W11429589 | Strike, Door (Replaces: 3403431) |
|
Immediately | $ 20.99 | ||||
| 21 | W11035878 | Assembly, Seal And Bearing (Replaces: W10803476) |
|
Immediately | $ 78.78 | ||||
| 22 | W11429587 | Assembly, Door Catch (Replaces: W10610880) |
|
Immediately | $ 26.55 | ||||
| 23 | WP488627 | Screw (Replaces: 342055) |
|
$ 8.11 | |||||
| 24 | WPW10362431 | Assembly, Hinge And Pin (Replaces: W10362431) |
|
Immediately | $ 8.28 | ||||
| 25 | W10861521 | Seal, Door (Replaces: W10730752) |
|
Immediately | $ 58.69 | ||||
| 26 | WPW10463967 | Door, Inner (Replaces: W10463967) |
|
$ 230.70 | |||||
| 27 | W10861227 | Door, Front (white) (Replaces: 3402335) |
|
$ 269.26 | |||||
| 28 | WPW10549553 | Handle, Door (white) (Replaces: W10549553) |
|
Immediately | $ 8.21 | ||||
| 29 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 55.66 | ||||
| 30 | W10850756 | Screw (Replaces: W10773242) |
|
$ 8.20 | |||||
| 31 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 24.17 | |||||
| 32 | WP3404162 | Clamp, Motor (with Shield) (Replaces: 3404162) |
|
Immediately | $ 8.21 | ||||
| 33 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 26.96 | ||||
| 34 | 279827 | Assembly, Motor (Replaces: W10396032) |
|
Immediately | $ 191.95 | ||||
| 35 | WP8066184 | Pulley, Motor (Replaces: 8066184) |
|
Immediately | $ 51.02 | ||||
| 36 | WP691366 | Idler Assembly (Replaces: 691366) |
|
Immediately | $ 22.47 | ||||
| 37 | WPW10198086 | Belt, Drive (Replaces: W10198086) |
|
Immediately | $ 48.60 | ||||
| 38 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 127.65 | ||||
| 39 | 3400500 | Bolt |
|
Immediately | $ 14.04 | ||||
| 40 | W11715722 | Hinge, Top (Replaces: W10641296) |
|
$ 8.19 | |||||
| 41 | WPW10157932 | Seal, Foam (Replaces: W10316529) |
|
Immediately | $ 8.45 | ||||
| 42 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 43 | W10316619 | Seal, Spill Guard |
|
$ 28.21 | |||||
| 44 | W10685675 | Seal, Rear Panel |
|
$ 19.85 | |||||
| 45 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 42.36 | ||||
| 46 | WPW10529197 | Bezel, Door Catch (Replaces: W10529197) |
|
Immediately | $ 25.46 | ||||
| 47 | W10641295 | Bracket, Rear |
|
$ 41.90 | |||||
| 48 | W11710615 | Cord, Power (Replaces: W10712173) |
|
Immediately | $ 82.45 | ||||
| 49 | W11712577 | Clip, Strain Relief (Replaces: 694415) |
|
Immediately | $ 7.77 | ||||
| 50 | W11596046 | Seal, Spill Guard (Replaces: W10841728) |
|
Immediately | $ 54.09 | ||||
| NI | 49621 | Foot, Optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 |
