01 - Cover Sheet


02 - Cooktop, Burner And Grate Parts

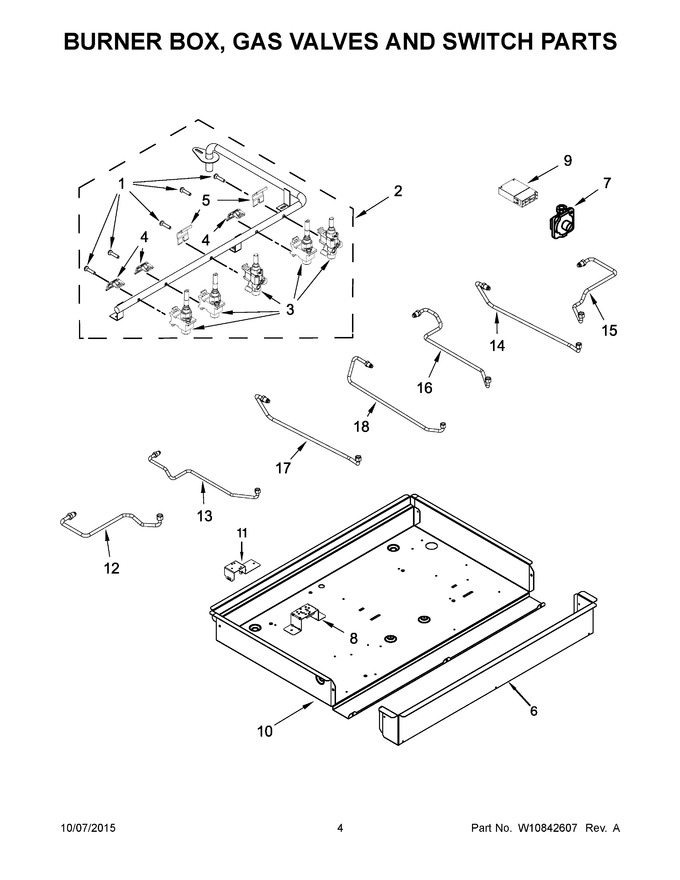

03 - Burner Box, Gas Valves And Switch Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8287057		Screw, Valve Bracket				$ 11.84
2	W10682074		Assembly, Manifold				$ 442.73
3	W11209791		Valve, Single (left Front)   (Replaces: W10717630)			Immediately	$ 275.34
4	8287055		Bracket, Single Valve				$ 76.46
5	8287056		Bracket, Dual Valve		Appelez-nous	-
6	W10705474		Panel, Front		Appelez-nous	-
7	W11087445		Regulator, Pressure   (Replaces: W10132345)			Immediately	$ 197.04
8	W10594429		Bracket, Orifice Holder				$ 23.33
9	WPW10475150		Module, Spark   (Replaces: W10475150)			Immediately	$ 243.93
10	W10710916		Box, Burner		Appelez-nous	-
11	W10545802		Bracket, Dual Burner				$ 22.50
12	W10545796		Tubing, Gas Burner (left Front)				$ 82.66
13	W10545797		Tubing, Gas Burner (left Rear)				$ 82.08
14	W10545843		Tubing, Gas Burner (right Front, Main)				$ 84.84
15	W10545844		Tubing, Gas Burner (right Front, Simmer)				$ 85.81
16	W10545798		Tubing, Gas Burner (right Rear)				$ 87.36
17	W10545801		Tubing, Gas Burner (center, Main)				$ 83.19
18	W10545800		Tubing, Gas Burner (center, Simmer)				$ 83.18
3A	W10717631		Valve, Single (left Rear)				$ 263.53
3B	W10717628		Valve, Single (right Rear)				$ 263.64
3C	W11199023		Valve, Dual (right Front & Center)   (Replaces: W10717629)				$ 156.61
NI	W10853432		Kit, Lp Conversion   (Replaces: W10676662)			Immediately	$ 86.57
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10577591		Harness, Main				$ 96.95
NI	W11804912		Harness, Switch   (Replaces: W10619016)				$ 603.11
NI	W10392003		Cord, Power				$ 161.67
NI	W10132200		Relief, Strain		Appelez-nous	-
NI	WP74001380		Seal, Manifold Pipe Inlet   (Replaces: 7208P024-60)				$ 68.73
