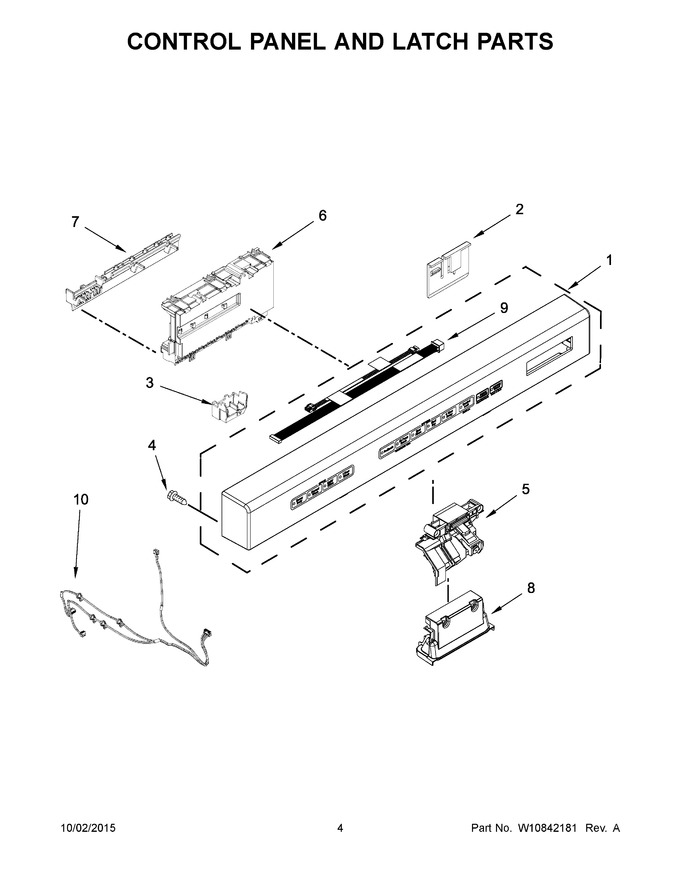

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10451537 | Console Assembly (stainless) (Replaces: W10451537) |
|
$ 399.30 | |||||
| 2 | W11256107 | Clip, Control (Replaces: W10195237) |
|
$ 23.27 | |||||
| 3 | WPW10462393 | Box, Connector (Replaces: W10462393) |
|
$ 8.56 | |||||
| 4 | WPW10348408 | Screw (Replaces: W10348408) |
|
Immediately | $ 7.55 | ||||
| 5 | WPW10653840 | Latch Assembly (includes Switch) (Replaces: W10653840) |
|
Immediately | $ 34.18 | ||||
| 6 | W10866118 | Control, Electronic (Replaces: W10796283) |
|
Immediately | $ 326.32 | ||||
| 7 | WPW10462395 | Brace, Connector (Replaces: W10462395) |
|
$ 21.65 | |||||
| 8 | WPW10195718 | Handle (black) (Replaces: W10195718) |
|
$ 133.15 | |||||
| 9 | W10528495 | Jumper Assembly, Ui |
|
- | |||||
| 10 | W10751782 | Jumper, Door Switch |
|
$ 23.25 |
