01 - Cover Sheet
02 - Control Panel Parts
03 - Oven Parts
04 - Lower Oven Door Parts

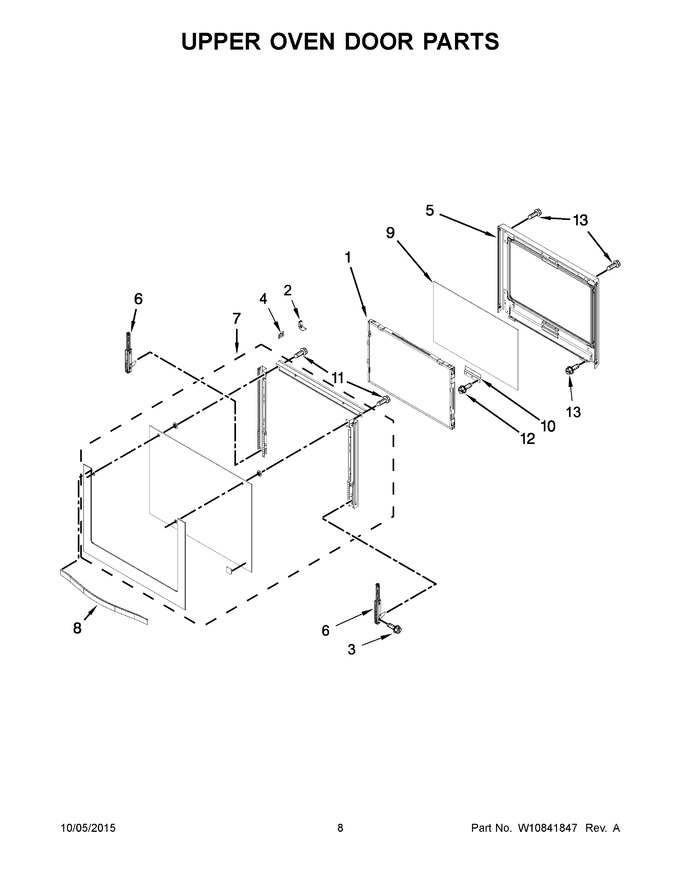

05 - Upper Oven Door Parts
06 - Internal Oven Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10347596 | Assembly, Window Pack (Replaces: W10347596) |
|
Immediately | $ 323.05 | ||||
| 2 | W10812024 | Spring, Door Glass Fixation (Replaces: W10284285) |
|
$ 165.76 | |||||
| 3 | WP3196183 | Screw (Replaces: 3196183) |
|
Immediately | $ 8.18 | ||||
| 4 | W11025615 | Clip, Spring Metal (Replaces: W10653954) |
|
Immediately | $ 176.14 | ||||
| 5 | WPW10709147 | Assembly, Liner (Replaces: W10709147) |
|
$ 366.69 | |||||
| 6 | W10825778 | Hinge, Door (Replaces: W10639069) |
|
Immediately | $ 112.85 | ||||
| 7 | W10587549 | Assembly, Door (black) |
|
- | |||||
| 8 | W10327379 | Handle, Door (black) |
|
$ 210.08 | |||||
| 9 | WPW10618107 | Glass, Inner (Replaces: W10618107) |
|
$ 247.71 | |||||
| 10 | W10853628 | Bracket, Glass (Replaces: W10284297) |
|
$ 163.86 | |||||
| 11 | WP488130 | Screw (Replaces: 488130) |
|
$ 7.32 | |||||
| 12 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 13 | WP98008545 | Screw (black) (Replaces: 7101P633-60) |
|
$ 18.60 | |||||
| 7A | W10587550 | Assembly, Door (white) |
|
- | |||||
| 7B | W10577911 | Assembly, Door (stainless) (Replaces: W10587556) |
|
Immediately | $ 736.86 | ||||
| 8A | W10327380 | Handle, Door (white) |
|
$ 208.07 | |||||
| 8B | W10327379 | Handle, Door (stainless) (Replaces: W10317136) |
|
$ 210.08 |
