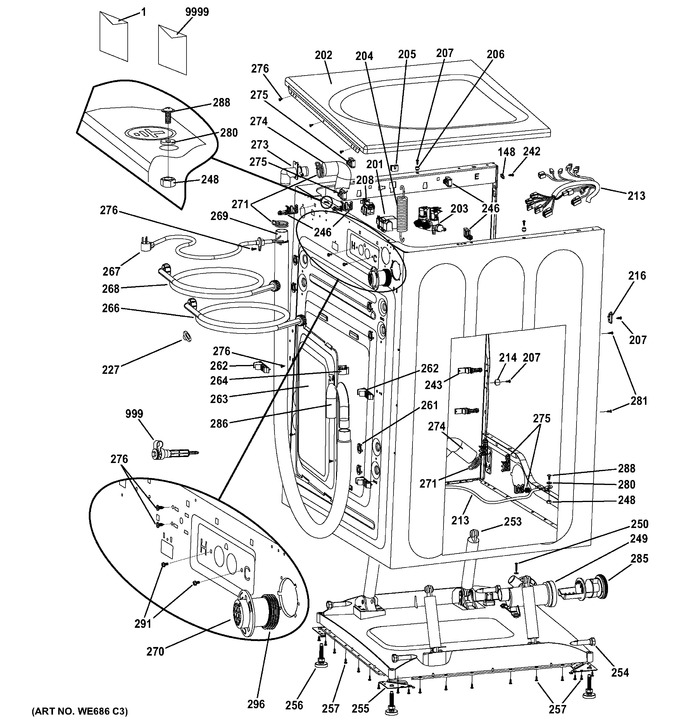

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 148 | WH01X10651 | Control Panel Pin |
|
- | |||||
| 201 | WH41X10301 | Emi Filter |
|
- | |||||
| 202 | WG04L02681 | Top Panel Sub (Replaces: WH44X10297) |
|
$ 213.17 | |||||
| 203 | WG04F00002 | 2 In 3 Out Water Valve (Replaces: WH13X10029) |
|
Immediately | $ 148.93 | ||||
| 204 | WH05X10012 | Spring - Suspension |
|
- | |||||
| 205 | WG04A00964 | Spring_hanger (Replaces: WH01X10251) |
|
Immediately | $ 3.97 | ||||
| 206 | WH01X10252 | Top_panel_pin |
|
- | |||||
| 207 | WH02X10187 | Screw_st 4.2x14 |
|
- | |||||
| 208 | WH12X20898 | Pressure Switch |
|
- | |||||
| 213 | WH19X23461 | Wire_harness |
|
- | |||||
| 214 | WH01X10652 | Front Panel Pin |
|
- | |||||
| 216 | WH16X10073 | Front_panel_hanger |
|
- | |||||
| 227 | WH01X10636 | Inlet Hose Strainer |
|
- | |||||
| 242 | WH02X10182 | Screw_st4.2*13 |
|
- | |||||
| 243 | WH16X10074 | Wire_catch |
|
- | |||||
| 246 | WH16X10076 | Wire_catch |
|
- | |||||
| 248 | WH02X10199 | Nut_m5 |
|
- | |||||
| 249 | WH23X20825 | Pump |
|
- | |||||
| 250 | WH02X10200 | Screw_washer_st4*25 |
|
- | |||||
| 253 | WH01X20826 | Damper - Shock |
|
- | |||||
| 254 | WH01X10261 | Damper_pin |
|
- | |||||
| 255 | WH16X10077 | Corner Bracket |
|
- | |||||
| 256 | WH46X20828 | Leg Asm |
|
- | |||||
| 257 | WH02X10201 | Screw_st4.2*13 |
|
- | |||||
| 261 | WH44X10206 | Cover - Shipping Screw |
|
- | |||||
| 262 | WH01X10262 | Outside_drain_hose_catch |
|
- | |||||
| 263 | WH46X10237 | Cabinet Rear Cover |
|
- | |||||
| 264 | WH01X10263 | Inside_drain_hose_catch |
|
- | |||||
| 266 | WW03L00236 | Main_water_hose_cold (Replaces: WH41X10286) |
|
$ 83.70 | |||||
| 267 | WH19X20832 | Power_cord |
|
- | |||||
| 268 | WW03L00236 | Main_water_hose_hot (Replaces: WH41X10287) |
|
$ 83.70 | |||||
| 269 | WG04F00643 | Outside_drain_hose (Replaces: WH41X10126) |
|
$ 99.93 | |||||
| 270 | WH01X10527 | Vent Hose Coupling |
|
- | |||||
| 271 | WH01X10265 | Drain_hose_clamp |
|
- | |||||
| 273 | WG04F00309 | Drain_hose_coupling (Replaces: WH01X10266) |
|
$ 7.55 | |||||
| 274 | WH41X10127 | Inside_drain_hose |
|
- | |||||
| 275 | WH16X10078 | Wire_catch_1 |
|
- | |||||
| 276 | WH02X10203 | Screw St4.2*11 |
|
- | |||||
| 280 | WH02X10218 | Lock Washer |
|
- | |||||
| 281 | WH02X10219 | Screw_st4*10 |
|
- | |||||
| 285 | WH23X20840 | Pump Filter |
|
- | |||||
| 286 | WG04F04381 | Drain Hose Guide U-shape (Replaces: WH41X10133) |
|
$ 8.34 | |||||
| 288 | WH02X10234 | Screw M5*12 |
|
- | |||||
| 291 | WH02X10251 | Screw M4*8 |
|
- | |||||
| 296 | WH08X10052 | Seal Vent Pipe |
|
- | |||||
| 999 | WH49X10081 | Kit - Shipping Bolt |
|
- | |||||
| 9999 | WE25X10028 | Kit - Stacking Wsh/dry |
|
- |
