SELECT A DIAGRAM

1 - Freezer Door

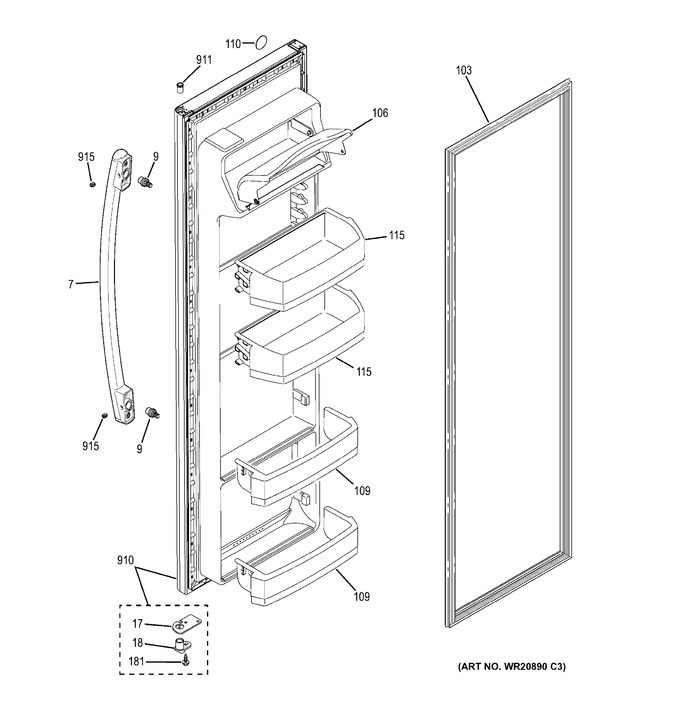

2 - Fresh Food Door


3 - Freezer Section


4 - Freezer Shelves


5 - Ice Maker & Dispenser


6 - Fresh Food Section


7 - Fresh Food Shelves


8 - Machine Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	WR12X23239		Arc Handle Asm Cc		Appelez-nous	-
9	WR01X11039		Fastener Handle		Appelez-nous	-
17	WR02X11474		Plate Door Stop Ff		Appelez-nous	-
18	WG03L01095		Cam & Thimble Ff   (Replaces: WR02X11479)				$ 6.09
103	WR24X10294		Gasket Door Ff		Appelez-nous	-
106	WR01L14045		Door Dairy   (Replaces: WR22X10012)				$ 22.93
109	WR71X11000		Shelf Module Fixed Ff		Appelez-nous	-
110	WG04A01013		Badge Ge Asm   (Replaces: WR04X10181)				$ 23.82
115	WR71X10959		Shelf Module Ff		Appelez-nous	-
181	WR01X10655		Scr 10-32 F Hxw 3/4 S		Appelez-nous	-
910	WR78X23304		Door Foam Asm Ff Cc 25'		Appelez-nous	-
911	WR01X10201		Thimble Top Closed		Appelez-nous	-
915	WR01X20424		Set Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
